Temperature Controller Capillary Thermostat

Product Specifications:

1. Temperature range: -35~400°C

2. Length of capillary tube: According to customer requirements

3. Temperature bulb size: according to customer requirements

4. Current and voltage: 16A/250V 50/60Hz

5. Sensitivity: 10°C

6. Installation size: 28±0.25mm

7. Body temperature: T150

8. Current intensity: 800v/s between two pins

9. Insulation resistance: ≥100MΩ

10. Pin resistance: ≤50MΩ

11. Service life: ≥ 100,000 times

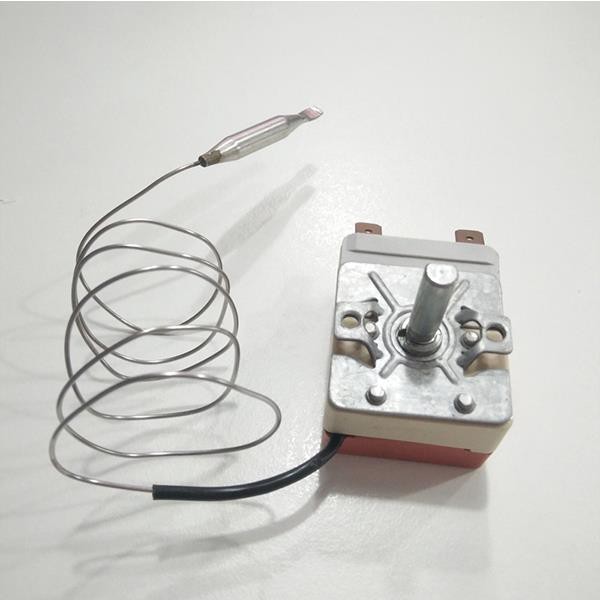

best-price-bimetal-capillary-thermostat201810221450253666623

Precautions:

1. When installing, it should be as close as possible to the surface to achieve accuration.

2. Do not deform it during installation, so as not to affect its performance.

3. Do not allow conductive gases or conductive substances to enter or contaminate the surface of the it so as not to affect the electrical insulation performance.

4. The switch box is a ceramic part of electrical appliances, so handle with care to avoid damage.

5. The bending radius of the tube cannot be less than 5mm.

QQ20180901155749

Purchase instructions

1. The size of the shaft and its initial rotation angle need to be set according to the needs of the customer.

2. The disconnection and its characteristic curve shall be determined by the customer's finished product.

3. There are various terminal size specifications and directions, and the length of it can be selected at will by customers.

4. In order to facilitate the customer to install it, different diameters can also be welded in .

QQ20210219133326 -

Hot Tags: temperature controller capillary thermostat, China, manufacturers, suppliers, factory, wholesale, custom, price, electric, high quality, Adjustable Pressure Type Capillary Thermostat, Adjustable Temperature Control Capillary Thermostat, Capillary Thermostat For Electric Fryer, Oven Thermostat Switch, Universal Oven Thermostats, Water Heater Thermostat Switch

Application-Thermostat


Packing & Delivery

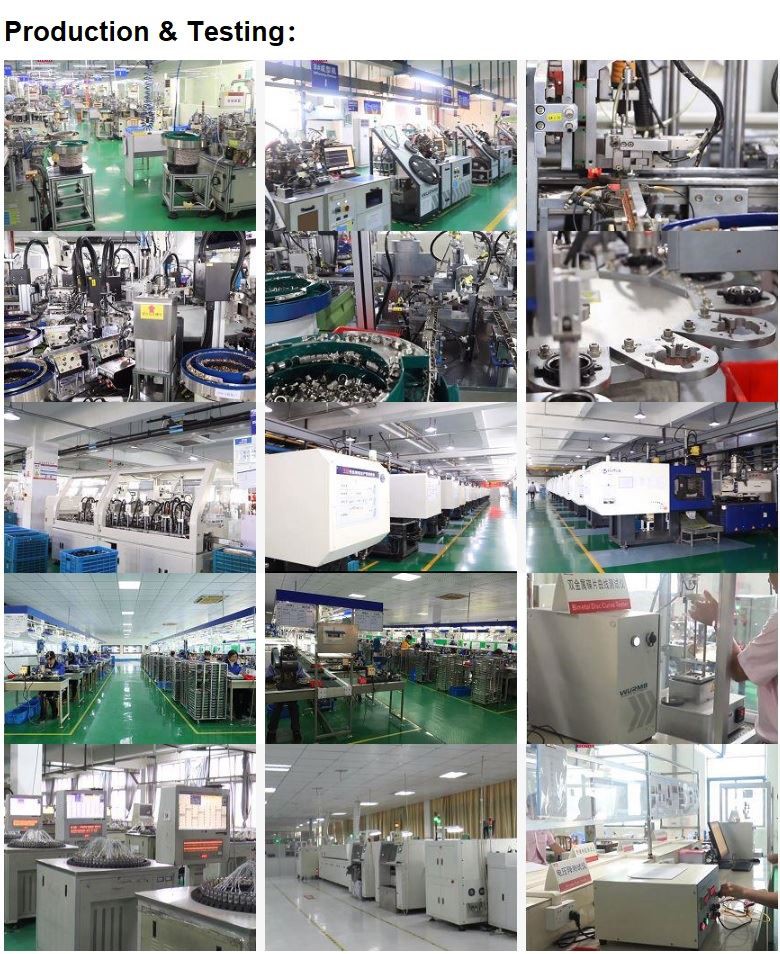

Quality-Thermostat
