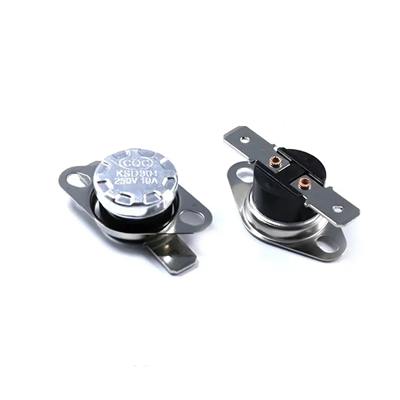

The KSD 301 Temperature Controller is a reliable and versatile thermostat that can regulate temperature and also provide much needed overheat protection in a range of electrical appliances and industrial systems. The KSD 301 can not only control the temperature of an appliance accurately, but it has a snap action functionality that allows it to provide safe and efficient operation in appliances requiring temperature control.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ksd 301 temperature controller in China, also supports custom service. Welcome to wholesale high quality ksd 301 temperature controller at competitive price from our factory.
The KSD 301 Temperature Controller is a reliable and versatile thermostat that can regulate temperature and also provide much needed overheat protection in a range of electrical appliances and industrial systems. The KSD 301 can not only control the temperature of an appliance accurately, but it has a snap action functionality that allows it to provide safe and efficient operation in appliances requiring temperature control.
| Model | KSD301 |
| Rated Voltage | 125V AC / 250V AC |
| Rated Current | 5A, 10A, 15A |
| Temperature Range | -30°C to 180°C (customizable up to 250°C for high-temperature models) |
| Temperature Tolerance | ±5°C |
| Function Type | Normally Closed (NC) / Normally Open (NO) |
| Insulation Resistance | ≥100MΩ (measured at 500V DC) |
| Dielectric Strength | 1500V AC for 1 minute (no breakdown) |
| Housing Material | Bakelite, Ceramic, or Metal (based on application requirements) |
| Terminal Types | Quick-connect tabs, solder terminals, or customized |
| Lifespan | ≥100,000 cycles (mechanical & electrical) |
1.Temperature Control Accuracy: The KSD 301 has the best temperature control, consequently the appliances are much less likely to go over the safe temperature limits before damaging their interior components or before ceasing to work.
2.Temperature Range: The thermostat can be maintained within a relative temperature range, typically from -20°C to 180° Celsius degrees, which will provide applicable versatility.
3. Snap Action: The KSD 301 uses a snap-action which will provide a fast action with reliable switching, which gives it the ability to quickly respond to the temperature range and maintain the appliance or system within the allowable limits.
4. Auto and Manual Resets: Based on the model, the KSD 301 will either have an automatic resetting mechanism which will reset at less than the preset level, or a manual reset allowing an opportunity to inspect the appliance/unit before returning into service.
The KSD 301 is appropriate for many applications in residential and industrial applications:
1 - Home Appliances: The KSD 301 can be found in electric kettles, toasters, hair care equipment, coffee makers, and similar appliances wherein the KSD would prevent overheating and control the safe operating temperature.
2 - Industrial Equipment: The KSD 301 can be used in heating elements, motors, boilers and transformers in which maintaining temperatures within safe operating limits is paramount.
3 - HVAC Systems: The KSD 301 allows space heaters, cooling and air conditioning systems to operate efficiently while controlling the temperature to prolong systems life.
4 - Refrigeration: The KSD 301 thermostat in refrigeration applications will monitor the temperature in order to maintain temperatures, therefore eliminating energy waste while protecting the equipment.
