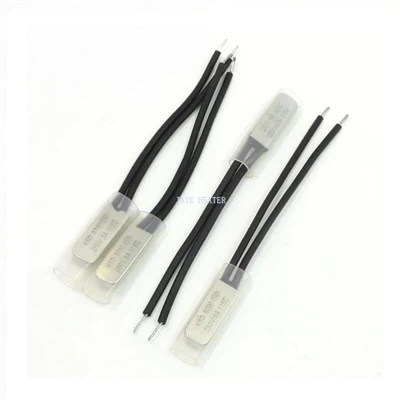

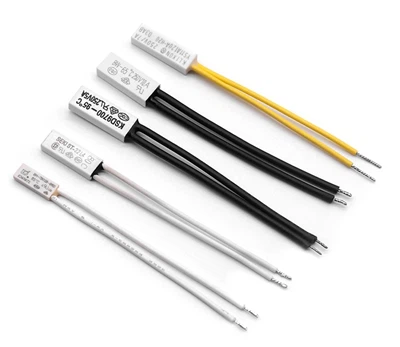

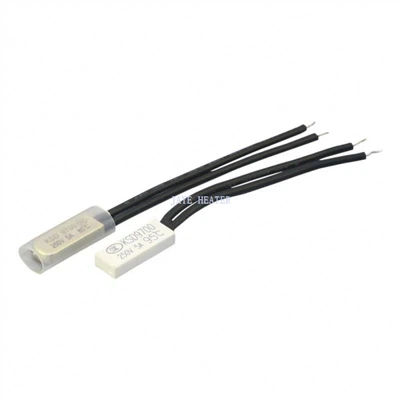

Temperature Switch KSD 9700 is a temperature-sensitive switch that opens or closes electrical contacts depending on the predetermined temperature. This type of technical component is employed in many devices to give overheating protection, such as in motors, transformers, heating pads, and air conditioning.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of temperature switch ksd 9700 in China, also supports custom service. Welcome to wholesale high quality temperature switch ksd 9700 at competitive price from our factory.
Temperature Switch KSD 9700 is a temperature-sensitive switch that opens or closes electrical contacts depending on the predetermined temperature. This type of technical component is employed in many devices to give overheating protection, such as in motors, transformers, heating pads, and air conditioning.
| Type | Bimetallic thermal switch (NC or NO) |
| Rated Voltage | Typically 250 V |
| Rated Current | 5A, 10A, 15A (depending on model) |
| Operating Temperature | 40°C to 180°C (preset in steps, e.g., 5°C intervals) |
| Tolerance | ±5°C or ±10°C (based on model) |
| Reset Type | Auto Reset / Manual Reset |
| Contact Type | Normally Closed (NC) or Normally Open (NO) |
| Housing Material | Plastic (PBT/PA66) or Metal (Aluminum or Stainless Steel) |
| Insulation Resistance | ≥100MΩ (at 500V DC) |
| Dielectric Strength | 1500V AC for 1 minute |
| Lifespan | ≥10,000 cycles |
| Response Time | Fast response to temperature changes |
| Leads | AWG 22 to AWG 18, with PVC or Teflon insulation |
| Mounting | Integrated with or without mounting brackets |
1-Typical operation:
In NC configuration, the switch will permit current flow until the ambient temperature rises to the trip point.
In NO configuration, the switch will remain open until the temperature rises and the switch is activated.
2-Activation:
When the set temperature is reached, the bimetal disc snaps into its changed state. In this case, NC opens and NO closes.
3-Reset:
Once the temperature falls below the reset temperature (typically 15-45 °C less than the trip temperature) the switch returns to its default state without needing to take any further action.
1-Auto-Reset: Closes again to its original state when temperature drops below threshold. This is the key feature.
2-Snap Action: Provides quick, positive opening/closing of contacts for dependable switching and less arcing.

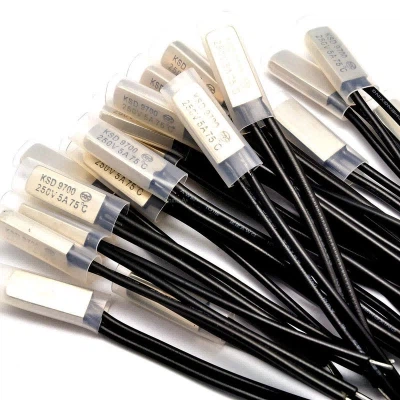

3-Fixed Temperature: Each switch is calibrated to open at one temperature. This temperature is usually stamped or printed on the body, (e.g., "85°C", "120°C", "150°C").
Temperature Switch KSD 9700 can be used as safety cut-offs or temperature controls in appliances or equipment which allows auto-reset and where it is safe. Examples of appliances and equipment are:
Electric Kettles
Coffee Makers
Water Dispensers (Hot Tanks)
Rice Cookers / Steamers
Space Heaters (as overheat protection)
Transformers / Power Supplies (overheat protection)
Small Motors (overheat protection)
Battery Chargers
