Jaye Heater Ships 10 Custom PTFE Immersion Heaters To Israeli Manufacturer

Jaye Heater Technology Co., Ltd., a leading manufacturer of industrial heating elements and temperature control products, has successfully completed the design, production, and shipment of 10 custom PTFE immersion heaters to a chemical manufacturing facility in Israel. This delivery represents more than a routine equipment order-it reflects a strategic partnership built on deep technical collaboration, addressing the client's specific challenges in heating highly corrosive chemical solutions within their production processes.



The Israeli customer, a well-established player in the specialty chemicals sector, operates a manufacturing facility that produces intermediates and formulations for industrial applications. Their production line involves multiple chemical reactors and storage tanks where aggressive acidic and alkaline solutions must be maintained at precise temperatures to ensure reaction efficiency, product consistency, and overall process safety.

Before approaching Jaye Heater, the client had been using conventional metallic immersion heaters in their chemical tanks. Over time, they encountered persistent issues: the metal sheaths corroded when exposed to aggressive chemical baths, leading to frequent equipment failures, unplanned downtime, and contamination risks that compromised product quality. In chemical manufacturing, even trace amounts of metal ions leaching into the process fluid can alter reaction kinetics or introduce impurities into the final product-an unacceptable outcome in high-purity chemical production.



The client's engineering team recognized the need for a heating solution that could withstand prolonged exposure to corrosive media while maintaining uniform heat distribution and zero contamination. They required heaters that could operate reliably in tanks containing concentrated acids, alkalis, and solvents-conditions that quickly degrade standard stainless steel heating elements.





Jaye Heater's engineering team conducted a thorough assessment of the client's application parameters, including tank dimensions, liquid composition, operating temperature requirements, and power needs. Based on this analysis, Jaye Heater designed and manufactured 10 PTFE immersion heaters with the following specifications:



The heaters feature a heavy-wall PTFE (polytetrafluoroethylene) outer sheath that provides exceptional resistance to virtually all chemicals-acids, bases, solvents, and aggressive solutions. The PTFE sheath acts as a protective barrier between the internal heating element and the process liquid, preventing corrosion and eliminating the risk of metal ion contamination. Inside each heater, a high-grade nickel-chromium resistance wire generates heat efficiently, while the PTFE coating ensures uniform heat transfer to the surrounding chemical solution without localized overheating.



Each heater was custom-configured to match the client's specific tank geometries and process requirements. The heaters are available in customizable shapes-U-type, L-type, spiral, or combined configurations-to fit seamlessly into existing reactor and tank designs. With a low watt density design (approximately 1.5 W/cm²), the heaters minimize surface temperature stress, significantly extending operational life while ensuring consistent temperature distribution throughout the process fluid. They are rated for continuous operation at temperatures up to 260°C (500°F), making them suitable for a wide range of high-temperature chemical processing applications.



·

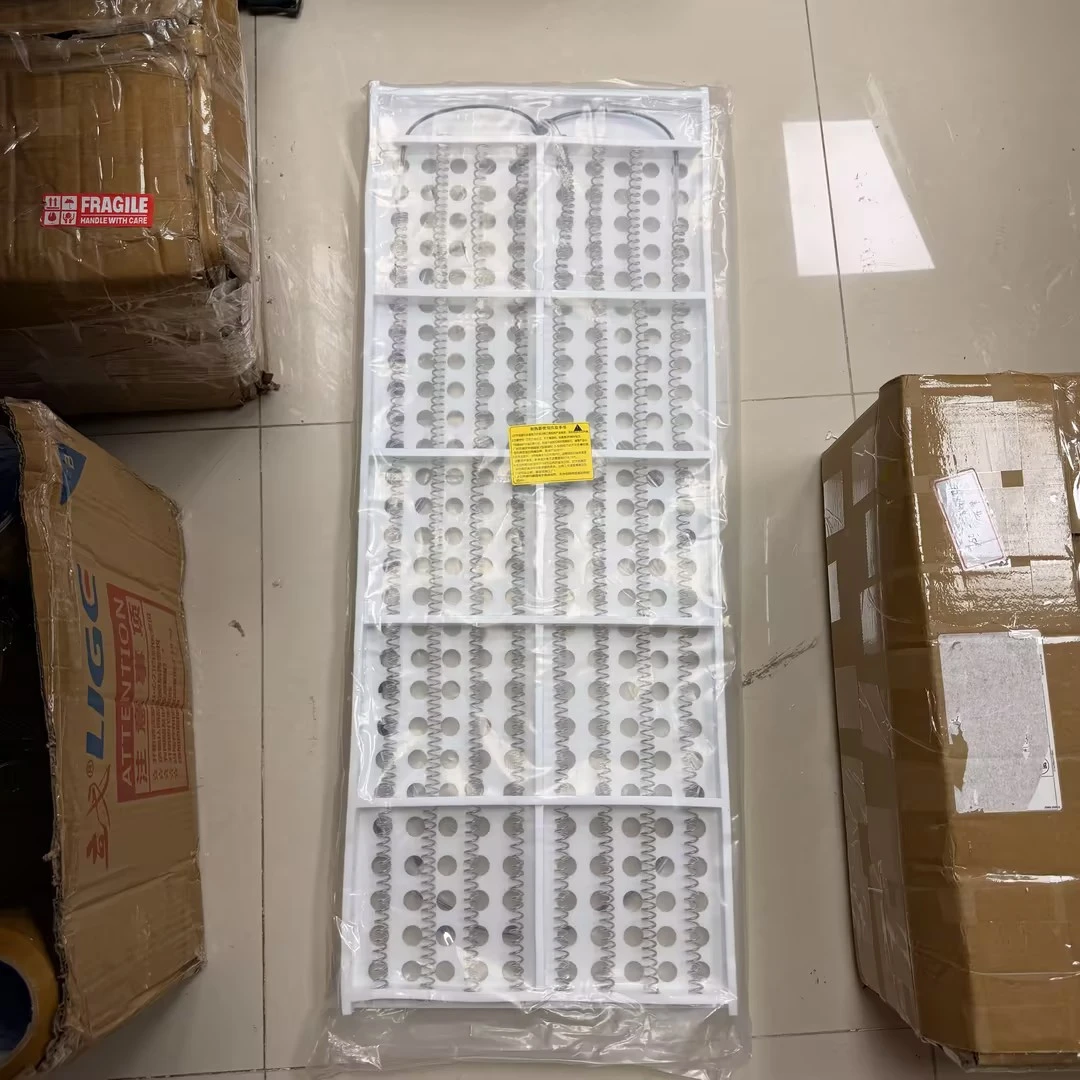

Throughout the production process, Jaye Heater's engineering and manufacturing teams worked closely to ensure that every heater met the specified dimensions, electrical parameters, and quality standards. Before shipment, all 10 units underwent comprehensive inspections, including resistance testing, insulation testing, appearance inspection, and functional verification. Each heater was carefully checked to ensure stable performance and safe operation before being packed for international shipping.





This shipment marks an important milestone in Jaye Heater's expanding presence in the Israeli and Middle Eastern markets. The company has previously delivered heating solutions to customers in the region, including a recent shipment of 100 PTFE heaters and silicone rubber heaters to an Israeli client. The repeat business and growing demand reflect the reliability, durability, and cost-effectiveness of Jaye Heater's custom-engineered thermal solutions.



"Chemical manufacturers around the world are recognizing that PTFE heaters are not just an alternative to metal heaters-they are the superior choice for corrosive environments," said a spokesperson from Jaye Heater. "Our ability to provide fully customized solutions based on each customer's unique process parameters sets us apart. We don't just sell standard products; we engineer solutions that match the process exactly."





PTFE immersion heaters are widely used across industries where corrosive liquids, high purity, or contamination-free heating are critical. Key applications include chemical processing (heating acids, alkalis, solvents, and aggressive chemical baths; tank temperature maintenance; evaporation and freeze protection), electroplating and metal finishing (electroplating baths, anodizing, pickling, and degreasing), semiconductor and electronics manufacturing (high-purity chemical heating, etching solutions, wet bench processing), pharmaceutical and biotechnology (sterilization, solvent heating, and CIP systems), and water treatment (heating brines, regeneration solutions, and corrosive waste streams).



Jaye Heater Technology Co., Ltd. specializes in the design and manufacture of industrial heating elements and temperature control products. With years of manufacturing experience and strict quality control, the company supplies reliable heating products to customers in more than 100 countries and regions worldwide. Their product portfolio includes silicone rubber heaters, PTFE heaters, cartridge heaters, tubular heaters, ceramic heaters, mica heaters, immersion heaters, and other custom heating solutions.
