Cartridge Heater for Tissue Packaging Machines In the fast-paced world of tissue packaging, every second counts. From facial tissues to toilet paper rolls, packaging lines demand consistent, reliable heat to ensure perfect seals, high throughput, and minimal downtime. Jaye Heater's Cartridge...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of cartridge heater for tissue packaging machines in China, also supports custom service. Welcome to wholesale high quality cartridge heater for tissue packaging machines at competitive price from our factory.
In the fast-paced world of tissue packaging, every second counts. From facial tissues to toilet paper rolls, packaging lines demand consistent, reliable heat to ensure perfect seals, high throughput, and minimal downtime. Jaye Heater's Cartridge Heater for Tissue Packaging Machines is precision-engineered to deliver the exact thermal performance required for heat sealing, cutting, and forming applications. With high watt density, rapid thermal response, and exceptional durability, our cartridge heaters provide the consistent, long-lasting heat that tissue packaging manufacturers rely on to maintain production efficiency and product quality.
| Sheath material | SS304.321.316L,Incoloy800.840,Titanium |
| Insulation material | High-purity MgO |
| Resistance | Ni-Cr or FeCr |
| Maximum voltage | 480VAC |
| Wattage density | high/middle/low(5-40w/cm2) |
| Wattage tolerances | toloerance :+5% -10% |
| Dimensional | Diameter: Min. dia:3mm |
| Length: | Customized |
| Lead options | Crimped- on / Swaged- in |
| Lead types | Swage fiberglass insulation nickel wire ( 750°C ) |
| Crimp on silicone lead ( 250°C ) Crimp | |
| Silicon insulated wire ( 200°C ) | |
| Crimp fiberglass insulation nickel wire ( 450°C ) | |
| Internal | Type J or K available thermocouple |
| Lead protection options | Stainless steel braid |
| Stainless steel flexible hose | |

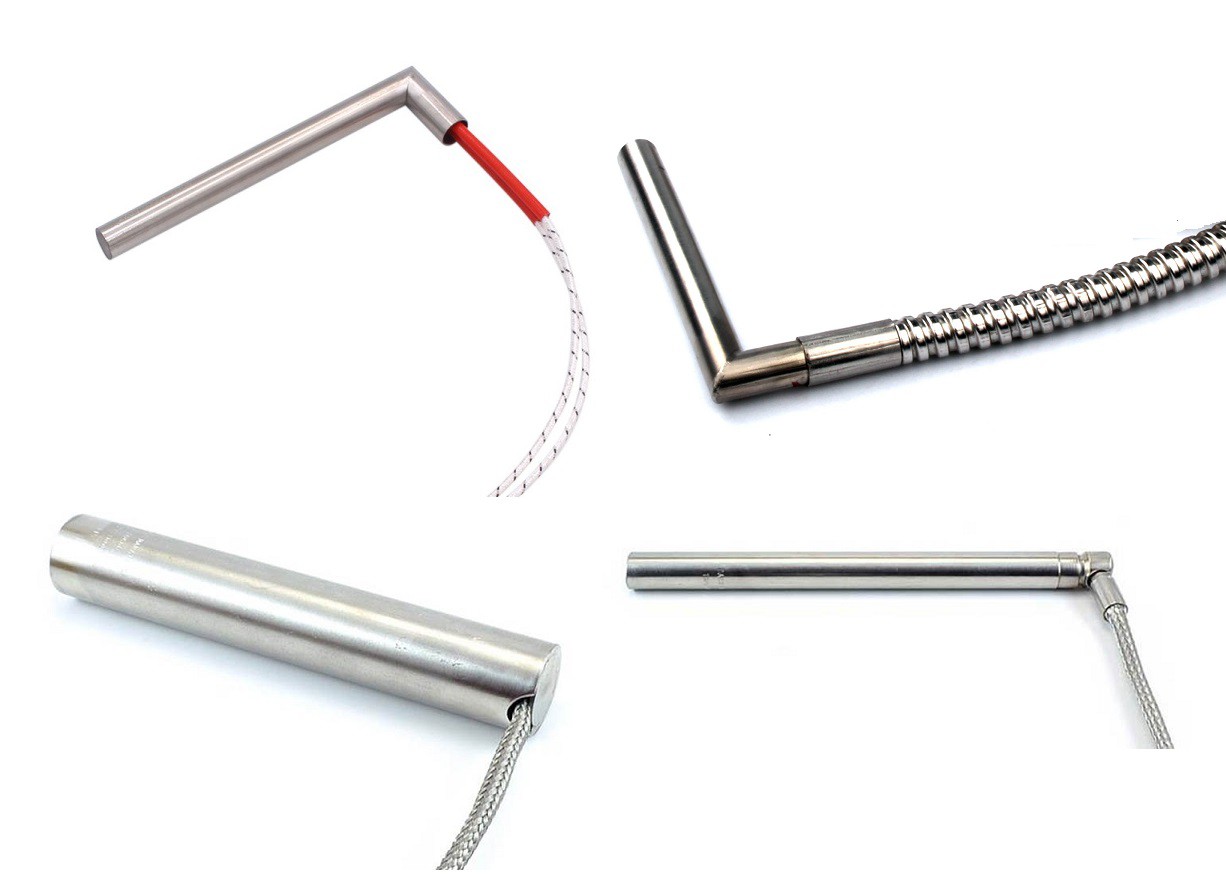

| other options | Bent heaters, in no-heat section, up to 90° angle |
| mounting flange |
High Watt Density for Fast, Efficient Heating
Designed to deliver concentrated heat in compact spaces, our cartridge heaters achieve rapid temperature rise and precise thermal control, minimizing warm-up time and maximizing packaging line productivity.
01
Superior Durability for Continuous Operation
Constructed with high-grade stainless steel sheaths (SUS304, SUS316, or Incoloy®) and compacted magnesium oxide (MgO) insulation, these heaters withstand the demanding conditions of 24/7 packaging operations - resisting oxidation, vibration, and thermal cycling stress.
02
Precise Temperature Uniformity Along the Entire Length
Precision-wound resistance wire and optimized internal geometry ensure even heat distribution across the heater's full length, eliminating hot spots and ensuring consistent seal quality on every package.
03
Customizable Configurations for Seamless Integration
Available in a wide range of diameters, lengths, lead wire options, and terminal configurations, our cartridge heaters are tailored to fit your specific sealing jaws, forming tools, or heating blocks - ensuring a perfect fit and easy installation.
04
| Application | How Cartridge Heaters Are Used |
|---|---|
| Heat Sealing Jaws | Mounted inside upper and lower sealing jaws to provide the precise, even heat needed to create strong, consistent seals on polypropylene, polyethylene, and other packaging films. |
| Cut-Off Bars | Installed in cutting assemblies to pre-heat blades or anvils for clean, precise cutting of tissue rolls without fraying or sticking. |
| Forming Tools & Shaping Blocks | Used in folding and forming stations to maintain consistent temperatures for shaping tissue packs before sealing. |
| Hot Melt Adhesive Systems | Applied in adhesive applicators to maintain optimal melt temperatures for glue-based sealing and labeling processes. |
| Lamination & Wrapping Stations | Provides targeted heat for laminating multiple layers or shrink-wrapping finished tissue products. |
At Jaye Heater, we understand that in tissue packaging, heat is quality. Our cartridge heaters are designed to deliver the precise, consistent, and reliable thermal performance that high-speed packaging lines demand. Whether you're an OEM building new packaging machinery or a production facility looking to improve seal quality and reduce downtime, we have the expertise and manufacturing capability to provide the ideal heating solution.
Cartridge heaters are inserted into sealing jaws and forming tools to provide the precise, even heat needed for strong seals and clean cuts on tissue packaging.
For most tissue packaging applications, 10–20 W/cm² is recommended. This ensures even heating without burning or sticking to the film.
| Material | Best For |
|---|---|
| SUS304 | General use, standard conditions |
| SUS316 | Moisture or chemical exposure |
| Incoloy® | High-temperature or abrasive environments |
