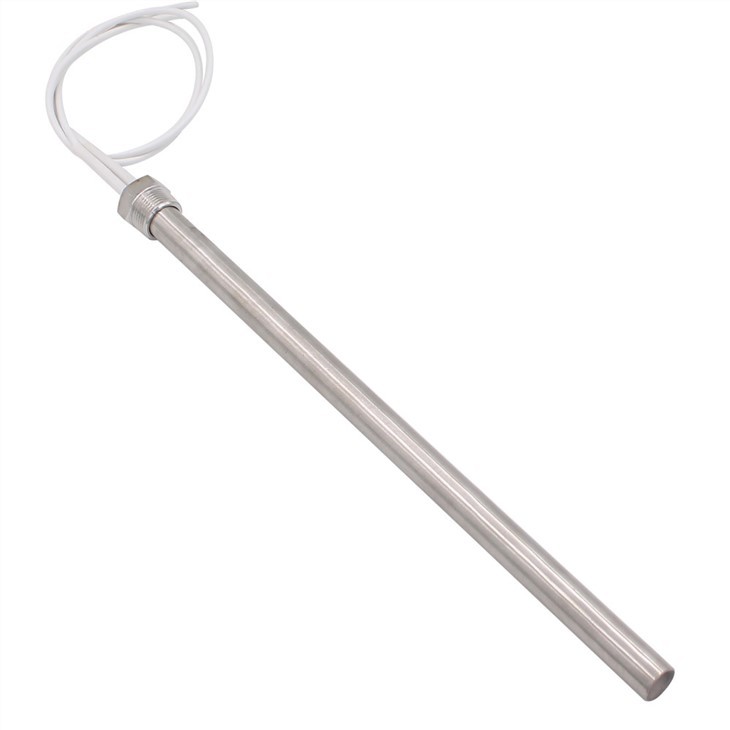

Cartridge Water Heating Element

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of cartridge water heating element in China, also supports custom service. Welcome to wholesale high quality cartridge water heating element at competitive price from our factory.

Cartridge Water Heating Element

Parameters:

1. Voltage: 12V～380V (generally direct current lower than 36V, alternating current higher than 36V).      2. Power: According to voltage, pipe diameter, length and domestic process or imported process (imported process surface load is higher than domestic process) to confirm.

3. Pipe diameter: 3mm-30mm (The pipe diameter is less than 5.5mm, the smaller the pipe diameter, the higher the cost, the pipe diameter is higher than 20mm, the thicker the pipe diameter, the higher the cost, please consult our staff for details.)

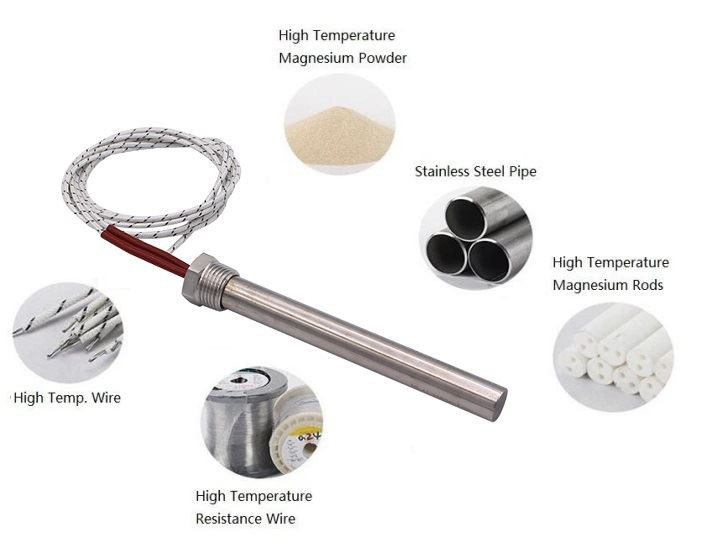

4. Heating tube material: mainly SUS304, 1Cr18Ni9Ti, SUS316L, stainless steel with coating (water scale treatment), SUS310S (commonly known as nickel-chromium 2520), titanium tube, Incoloy800 and 840, etc.

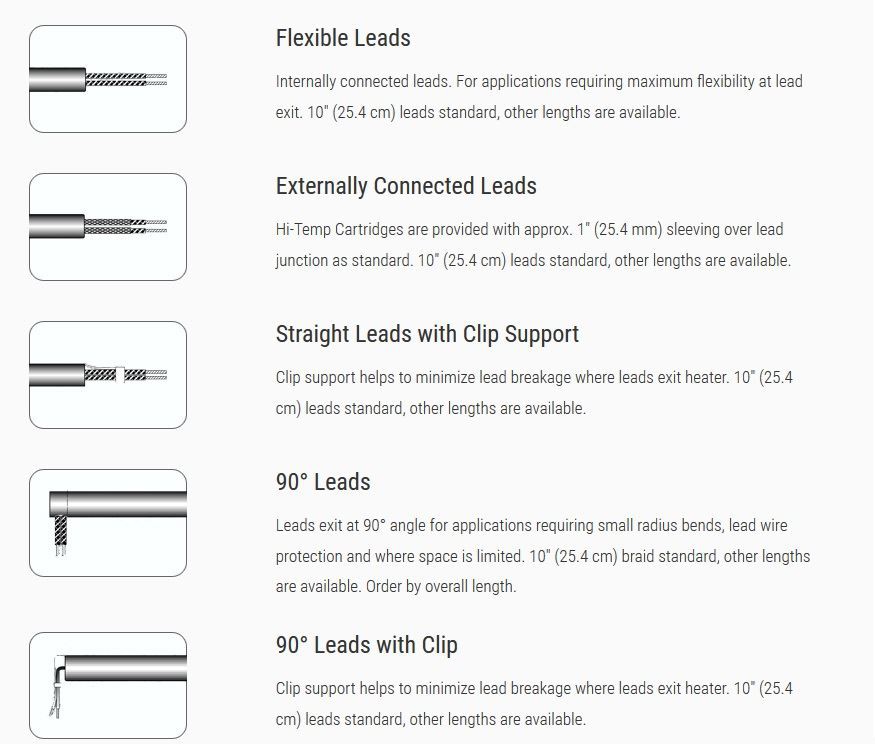

5. Lead wire: standard length 300mm (lead wire length can be made according to customer's specific requirements)

(1) Conventional high temperature wire; (2) Mica high temperature wire; (3) Tetrafluoro wire; (4) High temperature ceramic bead lead wire; (5) Metal hose lead wire;

6.Electric heating wire: mainly iron-chromium-aluminum wire (Beijing Shougang steel filament), nickel-chromium wire (Cr20Ni80), Shougang HRE wire, imported BGH heating wire, depending on the surface load of the product and the working environment (temperature and vibration).
