A Industrial cartridge heater is a tube-shaped, industrial heating element that can be inserted into drilled holes. Cartridge heaters provide localized and precise heating and are commonly used in the heating process industry. Typically, cartridge heaters are used to heat a metal block from the...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of industrial cartridge heaters in China, also supports custom service. Welcome to wholesale high quality industrial cartridge heaters at competitive price from our factory.
The industrial cartridge heater is a tubular industrial heating element that can be inserted into a borehole. Cartridge heaters provide local and precise heating, often used in the heating process industry. In general, barrel heaters are used to heat metal blocks from within and can be customized to specific power densities according to application requirements.
Industrial cartridge heaters are most commonly used to heat metal parts by inserting drilled holes. For ease of installation, the size of the heater is slightly smaller than its nominal diameter.
How does an industrial Cartridge heater work?

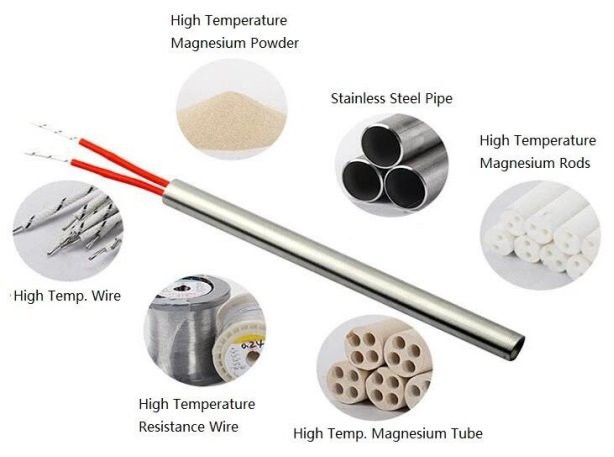

The barrel heater is composed of a resistance coil wound on a ceramic core, which is surrounded by a dielectric and wrapped in a metal sheath. The dynamic heat transferred to the jacket through the coil causes the jacket to heat up. The heat is then transferred to the internal metal parts that need it.
In order to install cartridge heaters in low or moderate temperature applications (600 ° F or less), a universal drill bit is usually sufficient for drilling. It is possible to drill 0.003 "to 0.008" holes in the nominal size of the drill bit to achieve a fit of 0.009 "to 0.014." Although this mix ratio allows for a slightly looser optimum heat transfer, it facilitates the installation and removal of tubular heaters, especially those with long sheaths. In high power density, close fit is more important. These holes should be drilled and reamed, not just drilled with a universal drill bit. Closer fit, the heater will run colder and have a longer life expectancy.
Hot Tags: industrial cartridge heaters, China, manufacturers, suppliers, factory, wholesale, custom, price, electric, high quality, Air Cartridge Heater, Fast Heat Cartridge Heater, Mould Cartridge Heater Element
What is the application of the cartridgel heaters?
Cartridge heaters are most commonly used to heat molds, platens, molds, and other metal parts by inserting drilled holes. They can also be used for liquid immersion applications. The following are some examples of specific applications:
Heating gas and liquid
Hot runner mold
gilding
Laminator
Medical equipment
semiconductor
Plastic molding
Scientific instruments
