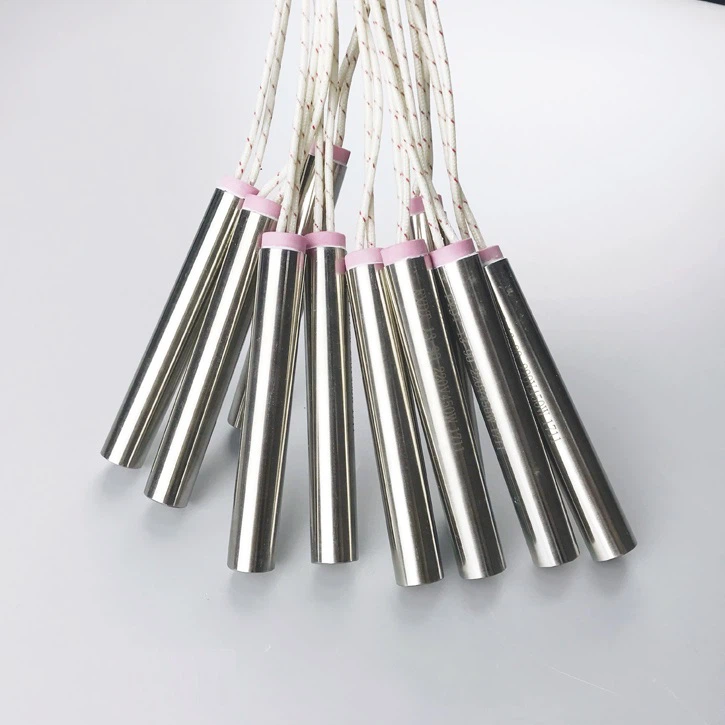

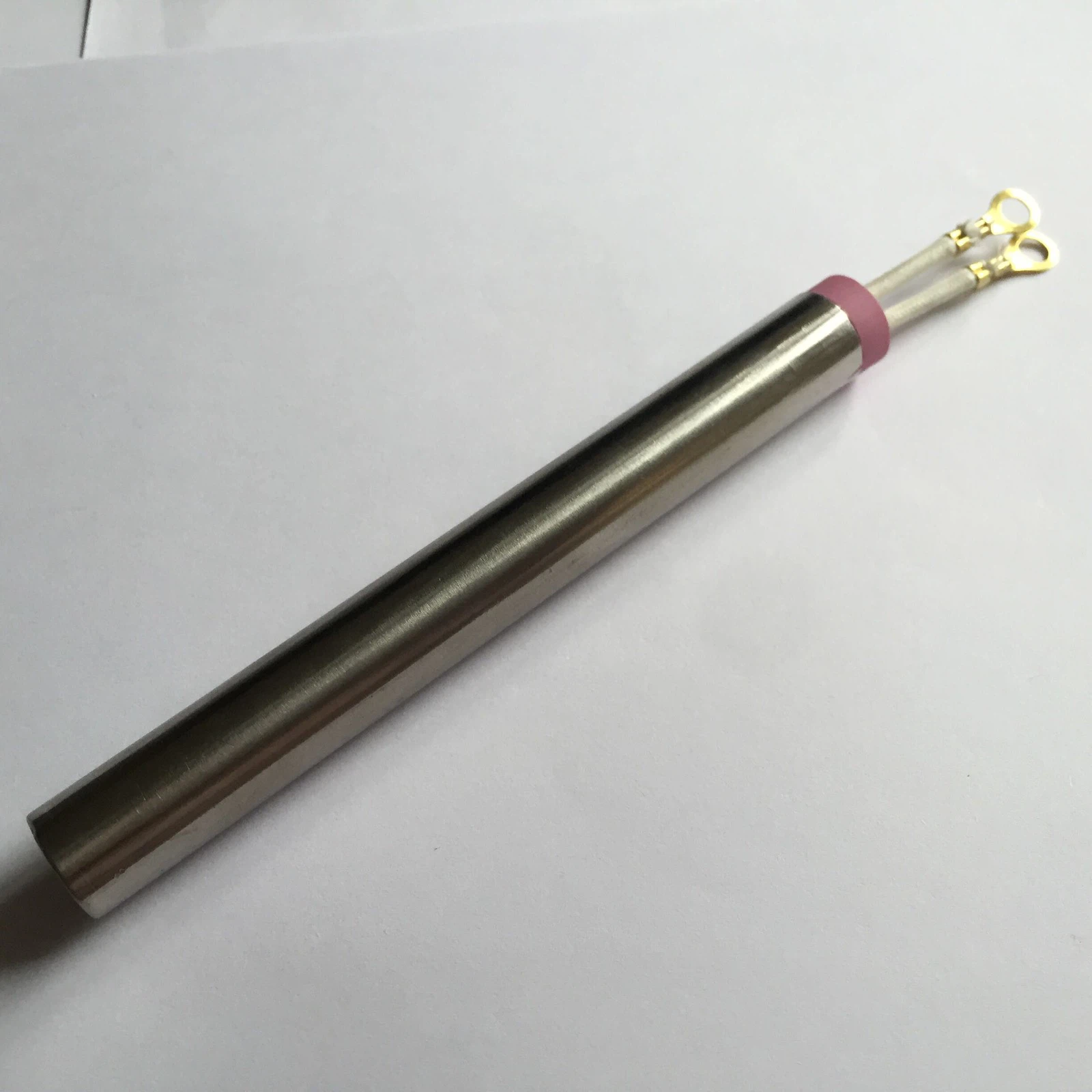

Micro Cartridge Heater, as the name suggests, is a kind of mini cartridge heater. The micro cartridge heater has high power density. Also it can withstand high operating temperatures, and services long life in applications with small dimensions. The Micro Cartridge Heater is widly used in 3D...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of micro cartridge heater in China, also supports custom service. Welcome to wholesale high quality micro cartridge heater at competitive price from our factory.
Micro Cartridge Heater, as the name suggests, is a kind of mini cartridge heater. The micro cartridge heater has high power density. Also it can withstand high operating temperatures, and services long life in applications with small dimensions.
The Micro Cartridge Heater is widly used in 3D printer.
You can tell us your required specification, it can be customized as per your need.
Tube diameter | 5mm or customized |
Sheath | SS304;SS316,SS321,NICOLOY800 etc. |
Insulation Material | High-purity Mgo |
Reisistance wire element | Ni-Cr or FeCr |
Wattage density | high/middle/low(5-25w/cm2) |
Thermocouple Location | Type J / K / Ground wire |

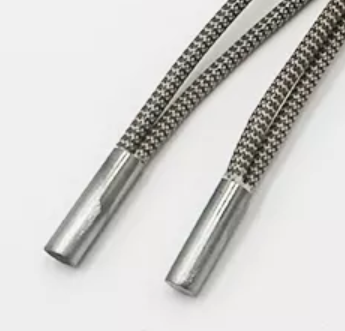

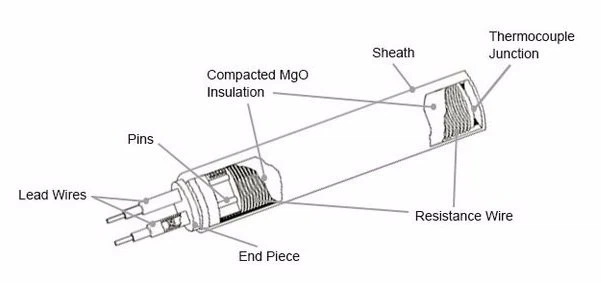

1.Swaged leads (internal wiring): high temperature resistance, uniform heating, high thermal conductivity and difficult cable fracture.

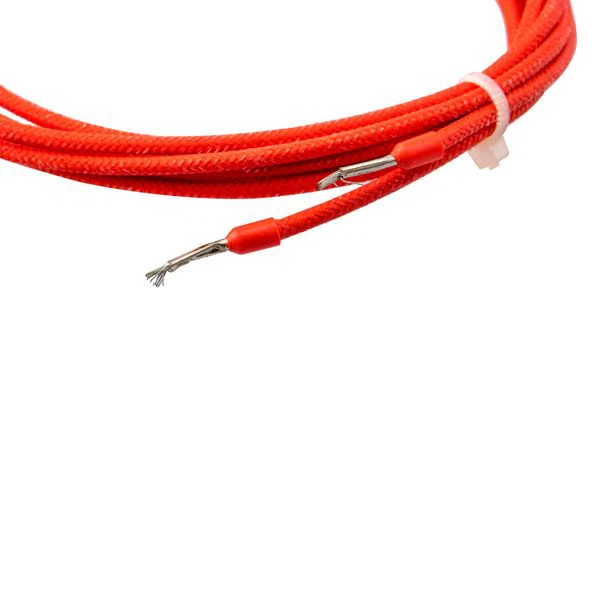

2.Crimped leads (external wiring): high temperature resistance, uniform heating and high thermal conductivity.
