Washer Machine Heating Element

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of washer machine heating element in China, also supports custom service. Welcome to wholesale high quality washer machine heating element at competitive price from our factory.

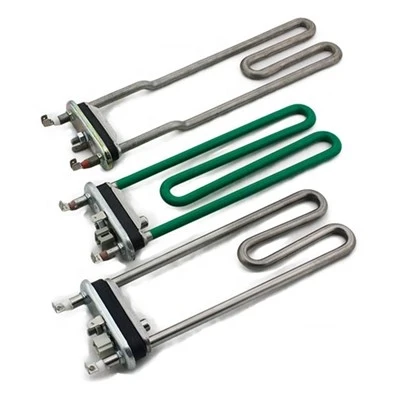

Washer machine heating element is a key component that converts electrical energy into heat energy, and it is usually installed at the bottom or side of the inner drum of a front-loading washing machine.





1. High-efficiency heat conduction: Utilizing stainless steel tubing and a high-purity magnesium oxide powder insulation layer, thermal efficiency can reach over 95%.
2. Corrosion-resistant design: The surface is often plated with a nickel-chromium alloy layer or a special coating, resisting alkaline detergents and hard water environments.
3. Precise temperature control: Equipped with an NTC sensor, it can achieve precise temperature control of ±2°C, preventing fabric damage.
4. Safety protection: Double insulation design; most products have dry-burn protection (automatic power-off) and grounding protection.
5. Energy-saving optimization: PTC heating elements can adaptively adjust power, saving 15-20% more energy than traditional resistance heating elements.





1	Type	Washer  Machine Element
2	Material	SUS304/SUS316/Incoloy 800/Incoloy 840
3	Output power	1800W CUSTOMIZABLE
4	Voltage	110V-240V
5	Color	White
6	Diameter	8mm CUSTOMIZABLE
7	Length	68cm
8	Flange	1 1/4" brass flange with/without Mg anode holding M6/M8 It's up to you







Q1: How to diagnose heating element malfunctions?

Symptoms: Abnormal washing water temperature, error codes (e.g., E04, HE), tripping.

Detection methods:

• Multimeter resistance test: Disconnect the connecting wire and measure the resistance between the two terminals. A deviation of 30% from the nominal value indicates failure.
• Insulation test: The resistance between the terminals and the casing should be >2MΩ; otherwise, there is a risk of leakage.
• Thermal imaging detection: Uneven hot spots during operation indicate internal magnesium powder agglomeration.

Q2: How to extend the life of the heating element?

• Run the 90°C drum self-cleaning program monthly to reduce scale buildup.
• In areas with water hardness >150ppm, it is recommended to install a water softener.
• Avoid frequent use of high-temperature programs above 90°C (recommended <twice a week).
