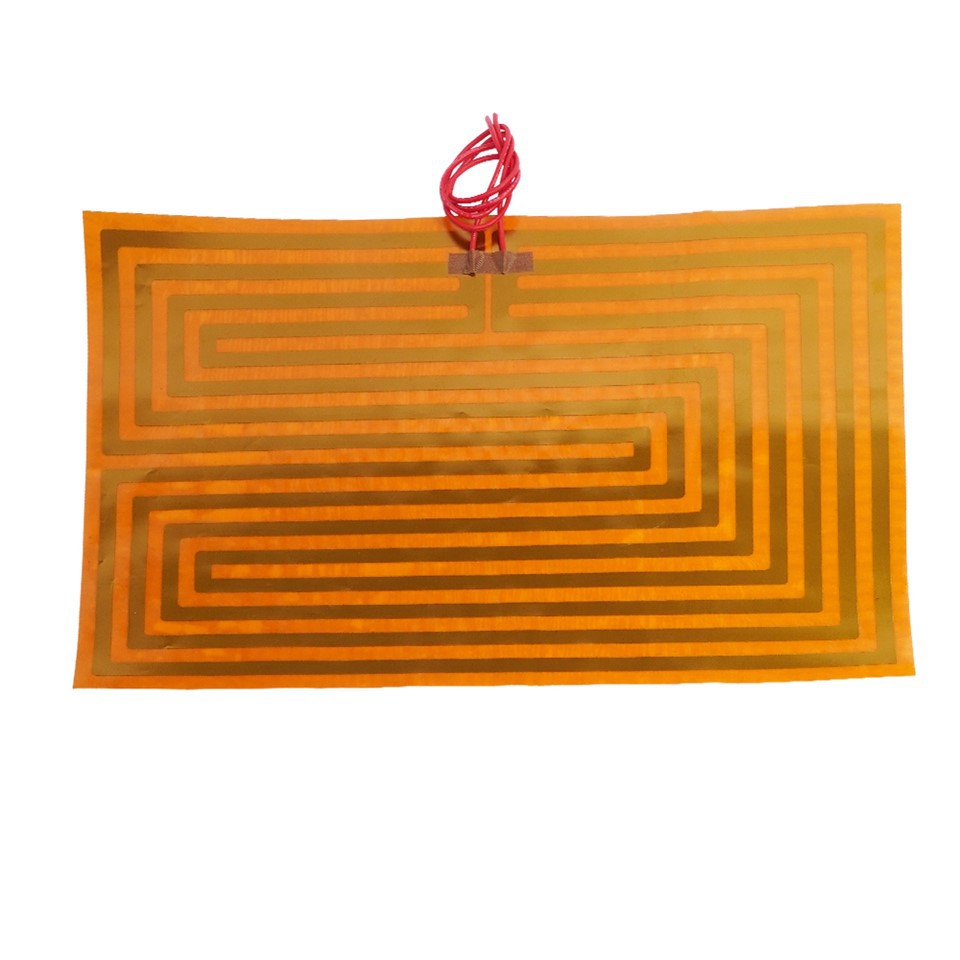

Flexible Polyimide Film Heater Element

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of flexible polyimide film heater element in China, also supports custom service. Welcome to wholesale high quality flexible polyimide film heater element at competitive price from our factory.







Material	High-grade Polyimide Film (Kapton equivalent)
Heating Element	Etched Foil Element (typically Nickel-Chromium or Copper alloy)
Thickness	0.07mm - 0.25mm (customizable)
Operating Voltage	5V – 480V (Customizable)
Power Density	Up to 10 W/cm²
Temperature Range	Standard: -80°C to 220°C (up to 400°C available with specific constructions)
Thermal Efficiency	High, with rapid heat transfer
Customization	Shapes, sizes, wattages, and lead configurations available

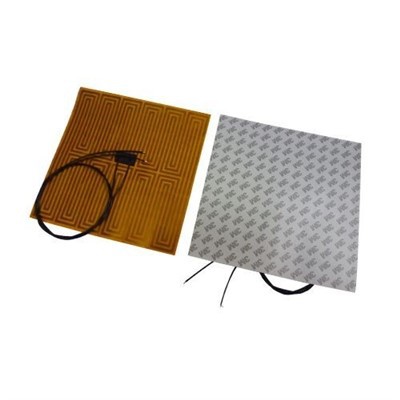

Adhesive Backing	Optional pressure-sensitive adhesive
Moisture Resistance	Excellent, suitable for humid environments
Installation	Easy to mount on flat or curved surfaces





1. Ultra-Thin & Flexible Design: The heater is usually less than 0.25mm thick, is ultra-lightweight and can fit on or round most any flat, curved or irregular shape, providing the optimal thermal contact with the surface while transferring heat without altering the form factor of the finished product.
2. Exceptional Thermal Efficiency: The etched-foil element is sandwiched within the polyimide film for fast heat-up time and extremely uniform heat distribution across the entire surface, effectively eliminating any cold spots for uniform performance.
3. Robust & Durable Construction: The substrate polyimide film is mechanically tough, has high tear strength, and has excellent stability over an extended temperature range, assuring long term usability.
4. Superior Chemical and Radiation Resistance: The thin film heater is resistant to most solvents, oils, and acids making it perfect for harsh environments. It is suitable for high vacuum and radiation compatibility (medical sterilization, aerospace).
5. Integrated Sensor Options: Available with thermocouples or RTD (NTC/PTC) sensors allowing for precise monitoring and control of the temperature. The heater can be employed in closed-loop feedback systems for critical applications.











1. Aerospace & Defense: De-icing components, thermal management of avionics, and sensor calibration.
2. Medical Equipment: Warming PCR instruments, blood analyzers, respiratory devices, and diagnostic equipment (potentially compliant with ISO 13485).
3. Electronics & Semiconductors: Stabilizing laser diodes, regulating process chamber temperatures, and heating PCB assemblies.
4. Automotive: Pre-heating Li-ion battery cells in EVs, sensor heating in ADAS systems, and interior comfort systems.
5. Industrial Automation: 3D printer heated beds, plastic molding equipment, and precise process heating.
