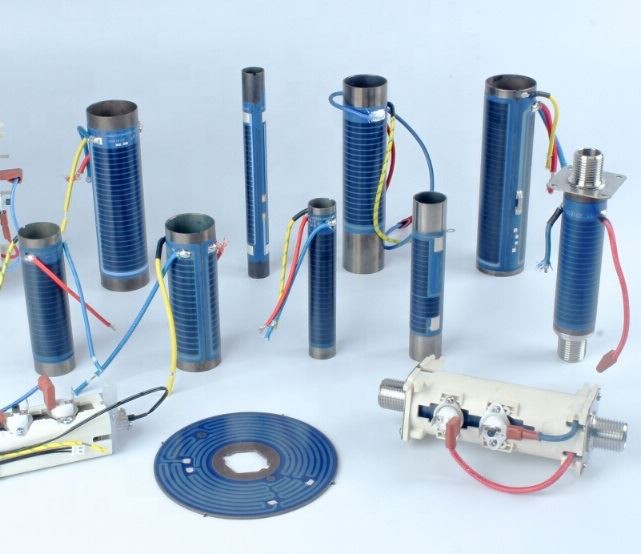

Thick Film Heating Element for Hot Water Heater By using metal resistance paste as the main raw material, a pure resistance layer circuit is formed by printing, and it has a stable power after being energized. Through this feature,the resistor integrated circuit is formed to form the element,...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of thick film heating element for hot water heater in China, also supports custom service. Welcome to wholesale high quality thick film heating element for hot water heater at competitive price from our factory.

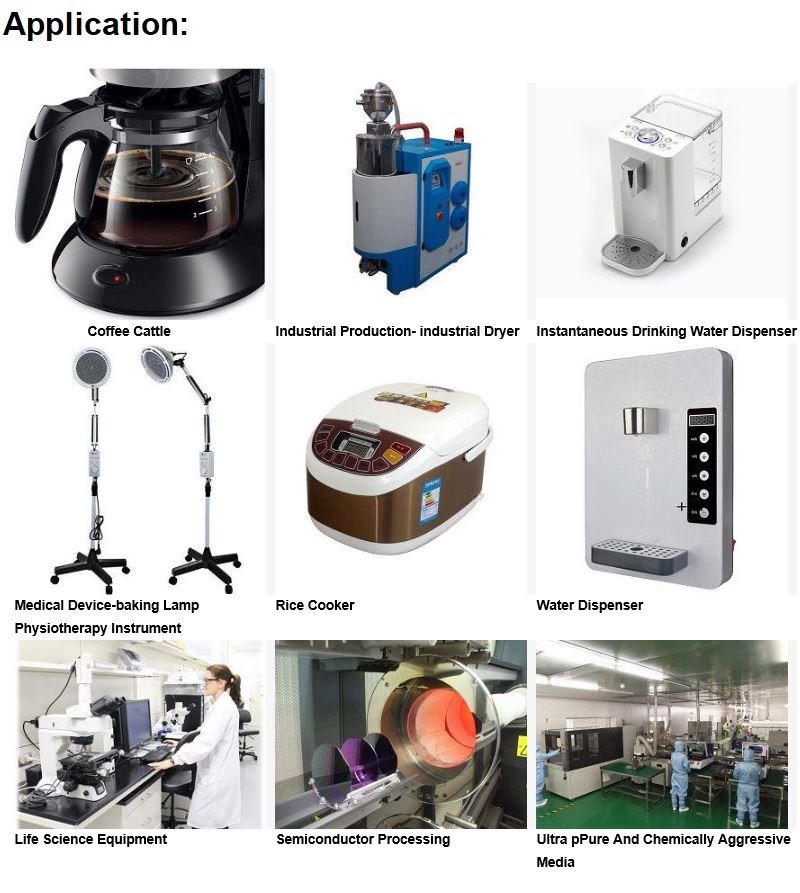

Thick Film Heating Element for Hot Water Heater are made by using metal resistance paste as the main raw material, a pure resistance layer circuit is formed by printing, and it has a stable power after being energized. Through this feature,the resistor integrated circuit is formed to form the element, and people can boil water or fry the real object by adding the device. Since the direct surface is used, the heat generated by the element is transferred to the heated carrier through the plate surface, so the thermal efficiency is faster and the response speed is faster.
Features of Thick Film Heating Element for Hot Water Heater:
1. The power density is large. The power density of the components is generally 40~60W/cm2, which is nearly ten times that of alloy electric materials in household electric appliances.
2. Long service life, traditional electric heating alloy components are easy to oxidize in use, and their service life is generally short, while the service life of the components can reach more than 10,000 hours.
3. Energy saving: its own heat capacity is small, and the thermal efficiency can reach 85-95%.
4. Environmental protection: The materials used to prepare this component do not contain toxic ingredients and heavy metal ions, and are fully in line with ROHS standards.
5. Safety: The insulation efficiency is strong and it can meet the withstand voltage requirements of various electrical products.
Order Guide:
When you have any requirements about the thick film heating element from Jaye heater technology, it would be better to provide your technical drawing, we can custom make as per your application requirements.
