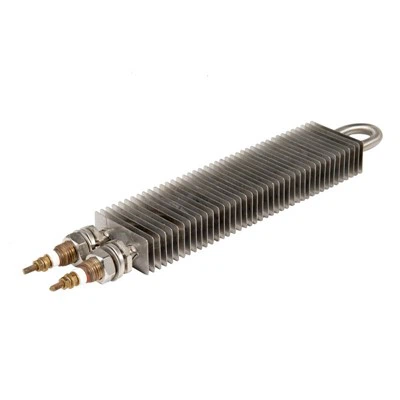

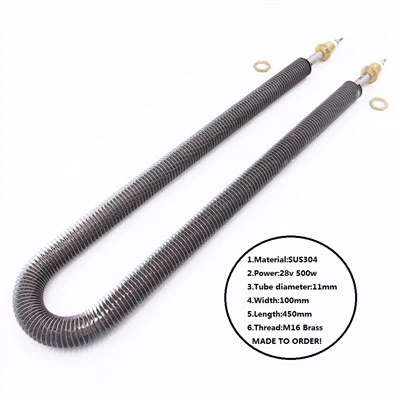

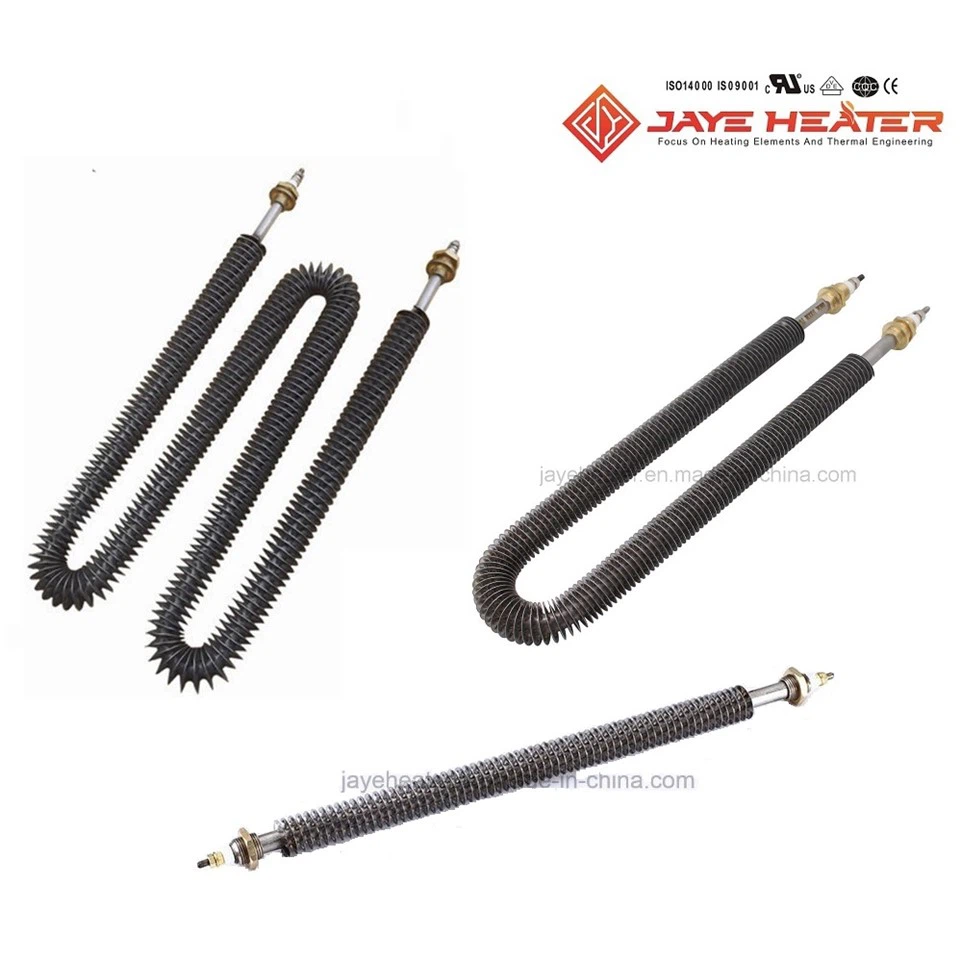

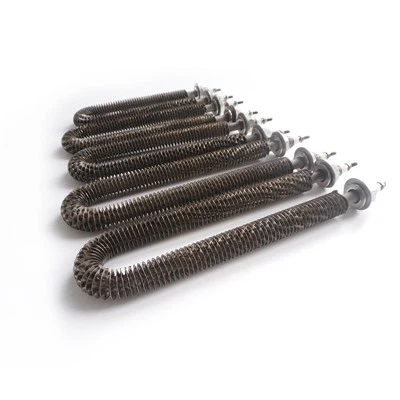

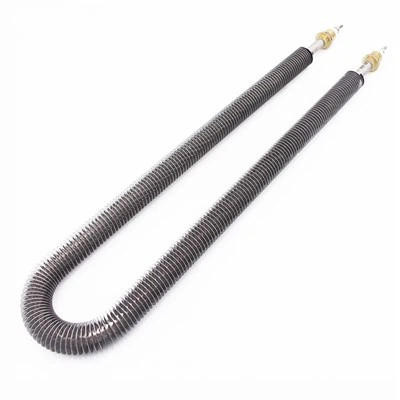

Finned Heating Element

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of finned heating element in China, also supports custom service. Welcome to wholesale high quality finned heating element at competitive price from our factory.





Core Components:

• Base Heating Element: As the core heating element, it is typically manufactured using precision processes from heating alloy wire (such as nickel-chromium or iron-chromium-aluminum), high-purity magnesium oxide powder (insulating and thermally conductive filler), and a metal sheath (such as stainless steel, copper, or titanium).
• Metal Fins: This is a key component that distinguishes it from ordinary heating elements. They are tightly attached to the surface of the base heating element using specialized processes (such as fin winding, fin stringing, and welding).





Extremely High Heat Exchange Efficiency

With the same power and space, its heat dissipation area is several to tens of times larger than that of a bare tube (without fins). This means it can transfer heat to the medium much faster, heating up rapidly and effectively reducing the surface temperature of the heating tube itself (surface load), thereby improving the overall system's energy efficiency ratio.

High Power Density and Compact Structure

Due to its high heat dissipation efficiency, higher power can be designed per unit length or unit volume without causing the tube to overheat and burn out. This allows for a smaller heater design, saving installation space.

Significantly Extended Heating Tube Life

The rapid heat dissipation effectively reduces the surface temperature (WTSCR) of the heating tube. High temperatures are the main causes of heating wire oxidation, decreased magnesium powder insulation performance, and tube corrosion and aging. Therefore, under the same operating conditions, the lifespan of a finned tube is far longer than that of a bare tube.

More Uniform Temperature Distribution

The fins themselves also act as heat conductors, helping to distribute heat more evenly across the entire fin surface from the hottest point (near the heating wire), reducing the formation of localized hot spots. This is crucial for processes requiring a uniform temperature field.

Energy and Cost Savings

High efficiency means less electricity is consumed to achieve the same heating effect. At the same time, a longer lifespan reduces replacement frequency and maintenance costs, resulting in a lower total cost of ownership over the entire lifecycle.



A. Core Heating Parameters

• Rated Voltage: Single-phase (e.g., 220V, 240V) or three-phase (e.g., 380V, 415V).
• Rated Power: Calculated based on heating requirements, in kilowatts (kW) or watts (W). This is one of the most important parameters.
• Resistance: Cold resistance calculated based on rated voltage and power, a crucial indicator of product quality.

B. Mechanical Structure and Material Parameters

Base Pipe Material:

• 304 Stainless Steel: General purpose, used in air without special corrosiveness.
• 321/316/316L Stainless Steel: Used in environments with some corrosiveness (e.g., coastal salt spray air, chlorine-containing environments).
• Copper: Excellent thermal conductivity, often used in low-temperature applications or applications requiring rapid response.Titanium, Teflon Coating: Used in highly corrosive environments.
• Fin Material: Usually matched to the pipe material, but aluminum fins are sometimes used on steel pipes (utilizing aluminum's excellent thermal conductivity and low cost).





1. size
2. power and wattage
3. quantity
4. drawing
5. pictures

Finned heating tubes are core, high-efficiency components in modern hot air heating systems. They perfectly balance the trade-offs between power, efficiency, lifespan, and size through the fundamental principle of enhanced heat transfer through surface area. The professional selection and design of finned heating tubes is a complex system engineering project. A deep understanding of the coupling relationship between their thermal parameters (especially the relationship between surface load and air velocity) and mechanical structural parameters (fin spacing, manufacturing process, and materials) is essential to maximizing their effectiveness and ensuring long-term, stable, and energy-efficient operation of the equipment.
