Immersion Flange Water Heater

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of immersion flange water heater in China, also supports custom service. Welcome to wholesale high quality immersion flange water heater at competitive price from our factory.

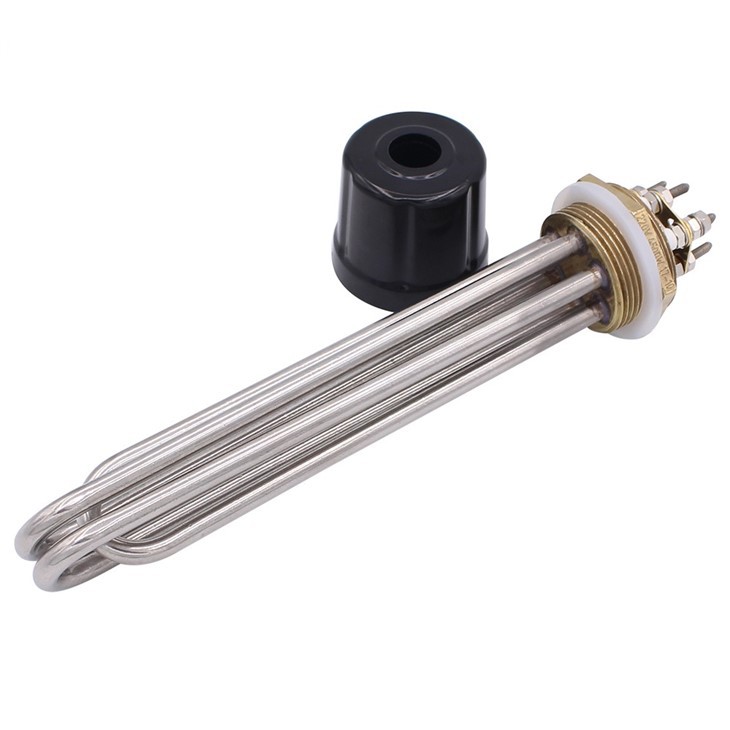

Immersion flange water heater,it uses a U-shaped tubular electric heating element and is sometimes referred to as a plug-in electric heater. It is mounted on the flange cover in accordance with the power configuration parameters for heating various media, then inserted into the substance to be heated. To satisfy the necessary process requirements, the heated medium raises its temperature.

In the petroleum, chemical, food, manufacturing, and other sectors, flange electric heaters are primarily used for thermal insulation and heating of goods in different storage tanks, containers, and fuel tanks.
The materials are also varied based on various operating circumstances and usage situations.

• preferred heating wire and insulatig material
• highly dense and compact structure
• the use of argon are wilding will not leak

1.A variety of element sheath and screw plug materials;

2.Integral thermowells;Terminal enclosures.

3.Provides a pressure tight seal

4.Maintains MgO density, dielectric strength, heat transfer and life
