Submersible Heater For Water Tank (also known as flange stainless steel heating tube): is the use of U-shaped tubular electric heating element, according to the design specifications for heating different media, in accordance with the power configuration requirements assembled in the flange...

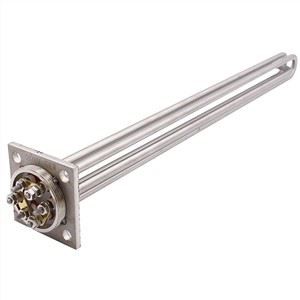

Submersible Heater For Water Tank (also known as flange stainless steel heating tube): is the use of U-shaped tubular electric heating element, according to the design specifications for heating different media, in accordance with the power configuration requirements assembled in the flange cover, inserted into the material to be heated, the heating element works when a large amount of heat is transmitted to the heated medium so that the medium temperature rises to achieve the required process requirements.
Submersible Heater For Water Tank is an electric heating element composed of metal outer tube, spiral resistance wire and crystalline magnesium oxide powder, which has good thermal conductivity and insulation, and can be used to heat various products. The electric heating tube adopts high quality domestic thick-walled seamless stainless steel tube, high temperature modified magnesium oxide powder and high temperature sealing material, so that the electric heating tube can withstand temperature up to 900℃, and the electric heating tube will not be damaged by dry burning in the temporary dehydration state.
| Specification： |
| Voltage: 12-380V. |
| Power: according to the heating medium and tube length design. |
| Heating tube surface temperature optional range: 0-800℃. |
| Tube diameter: Φ8-30mm. |
| Single tube length (unfolded): within 6000mm. |
| Material: stainless steel, titanium tube, Ingles 800. |
Application of Submersible Heater For Water Tank
Mainly for petroleum, chemical, food, machinery and other industries of various types of storage tanks, containers, tanks within the material insulation and heating. Connection can be flange type or threaded end seal. It improves the high temperature and corrosion resistance of electric heaters and ensures the service life.
FAQ
Q: What do you generally do in regarding to the products' quality control?
A: We always put much emphasis on products quality. That's the priority. We shall contact strict quality inspection towards the products before delivery. And we've obtained the VDE, CE, UL, ISO and so for.
Q: What is size and the specification?
A: We provide private custom service for you. You can specify the size, voltage, power, operating temperature and so on as you like. It would be better if you can provide us your designed technical drawings for complex heating elements or thermal control elements.
Q: What Certification your products approval?
A: UL, CUL, CE, ROHS, REACH, ISO, IATF16949.
