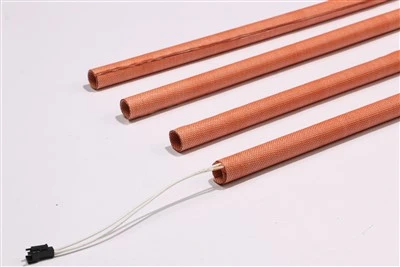

Flexible silicone rubber heaters provide an efficient surface-heating solution for GRE pipes. They conform closely to the pipe surface, deliver uniform heat distribution, and can be manufactured in virtually any size or shape to suit different pipeline configurations.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of silicone heater for gre pipe in China, also supports custom service. Welcome to wholesale high quality silicone heater for gre pipe at competitive price from our factory.
A silicone rubber heater is a flexible electric heating element manufactured by embedding resistance wire or etched foil heating circuits between layers of reinforced silicone rubber. The finished heater is thin, lightweight, and capable of transferring heat evenly across the contact surface.
Unlike rigid heating elements, silicone heaters can be wrapped around curved surfaces or irregular shapes without compromising heating performance. This flexibility makes them particularly suitable for composite pipelines where close contact between the heater and the pipe is essential for efficient heat transfer.
Depending on the application, silicone rubber heaters can be supplied with pressure-sensitive adhesive, spring fasteners, hook-and-loop straps, buckles, or other fixing methods. Temperature control options such as thermostats, thermocouples, RTD sensors, or digital controllers can also be integrated into the heating system.
GRE pipes differ significantly from carbon steel or stainless steel piping. Their composite construction offers excellent corrosion resistance but also requires careful consideration when external heating is applied.
Silicone rubber heaters are well suited to GRE pipelines because they provide gentle and evenly distributed surface heating without introducing concentrated hot spots. Their flexibility allows the heater to fit tightly around the pipe, improving heat transfer efficiency while minimizing thermal stress on the composite structure.
Another important advantage is customization. Since GRE pipelines are manufactured in a wide range of diameters, fittings, and connection designs, heating blankets can be produced to match the exact dimensions of straight pipes, elbows, tees, valves, flanges, and other components.
The heater easily conforms to the outer surface of GRE pipes, ensuring maximum contact area and efficient heat transfer.
Evenly distributed heating reduces localized overheating and helps maintain a consistent pipe wall temperature.
The thin construction adds minimal weight to the pipeline and does not interfere with normal installation or maintenance.
Each heater can be manufactured according to the required pipe diameter, heating length, voltage, power rating, installation method, and control requirements.
Integrated thermostats or external temperature controllers allow precise regulation of process temperatures for freeze protection, viscosity control, or temperature maintenance.
High-quality silicone insulation and nickel-chromium heating elements provide stable performance under continuous industrial operating conditions when properly installed and controlled.
The specifications below represent typical values for industrial silicone rubber heaters. Since GRE pipeline heating systems are generally custom-designed, all parameters can be adjusted to suit individual project requirements.
| Item | Specification |
| Heater Type | Flexible Silicone Rubber Heater |
| Heating Element | Nickel-Chromium (NiCr) Resistance Wire or Etched Foil |
| Insulation Material | Fiberglass Reinforced Silicone Rubber |
| Standard Thickness | 1.5mm-3mm |
| Standard Voltage | 12V, 24V, 48V, 110V, 120V, 220V, 230V, 240V, 380V, 415V, 480V |
| Power Density | Typically 0.2–1.2 W/cm² |
| Maximum Operating Temperature | 200°C (392°F) |
| Temperature Tolerance | ±5°C (Depending on Control System) |
| Minimum Bending Radius | Approximately 25 mm |
| Heater Shape | Flat, Cylindrical, Curved or Custom |
| Mounting Method | Adhesive, Spring, Hook & Loop, Buckle or Custom Fixtures |
| Protection Rating | Optional IP65 or Higher |
| Certification | CE, RoHS |
Yes. Every GRE pipeline project has different dimensions and operating requirements. Silicone rubber heaters can be manufactured for various pipe diameters, heating lengths, elbows, valves, flanges, and other irregular components to ensure proper fit and effective heat transfer.
Yes. In most industrial applications, thermal insulation is strongly recommended.
Insulation helps reduce heat loss, improves heating efficiency, lowers power consumption, and provides more stable temperature control, especially for outdoor installations or cold environments.
To recommend an appropriate heating solution, the following information is typically required:
• Pipe outside diameter (OD)
• Heated length
• Operating voltage
• Required power or maintenance temperature
• Ambient temperature
• Process medium
• Installation location (indoor or outdoor)
• Insulation thickness (if applicable)
• Quantity required
Providing complete technical information allows the heater to be designed more accurately for the application.
