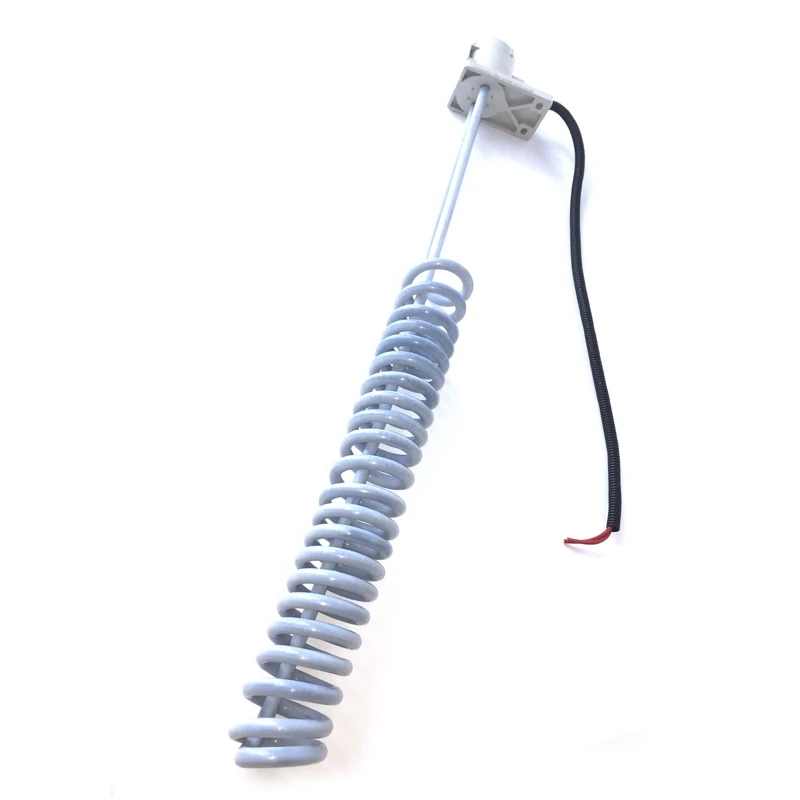

Industrial PTFE Electric Immersion Heater Jaye Heater supplies PTFE Heaters for liquid heating applications where chemical resistance and reliable performance are important. With stable product quality, competitive pricing, and flexible customization, our heaters are widely used in chemical...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of industrial ptfe electric immersion heater in China, also supports custom service. Welcome to wholesale high quality industrial ptfe electric immersion heater at competitive price from our factory.
Jaye Heater supplies PTFE Heaters for liquid heating applications where chemical resistance and reliable performance are important. With stable product quality, competitive pricing, and flexible customization, our heaters are widely used in chemical processing, electroplating, surface treatment, semiconductor manufacturing, and other industrial liquid heating systems. The PTFE sheath provides excellent resistance to many acids, alkalis, and chemical solutions, making this type of immersion heater a practical choice for corrosive liquids where conventional metal heating elements may not be suitable.
| Parameter | Specification |
|---|---|
| Product Name | PTFE Electric Immersion Heater |
| Heating Material | Nickel-Chromium Resistance Wire |
| Insulation Material | High-Purity Magnesium Oxide |
| Sheath Material | PTFE |
| Voltage | 12V–480V |
| Power | 100W–10kW |
| Heating Temperature | Application dependent |
| Heating Length | Customized |
| Tube Diameter | Customized |
| Lead Wire | Customized |
| Temperature Control | Thermostat / Thermocouple / External Controller |
| Installation | Customized according to tank design |
| Customization | Available |
Why Choose a PTFE Electric Immersion Heater?
Compared with standard metal immersion heaters, a PTFE Electric Immersion Heater is mainly designed for applications where the heating element comes into contact with chemically aggressive liquids.
The PTFE sheath provides good chemical resistance and helps protect the internal heating element from direct contact with the liquid. This makes it suitable for acidic, alkaline, and other corrosive solutions commonly found in industrial processing.
A standard stainless steel immersion heater can work well in water, oil, and many general-purpose liquids, but its performance can be affected when exposed to certain chemicals for extended periods. PTFE is a better option when corrosion resistance is a key requirement.
Excellent chemical resistance
Suitable for many acidic and alkaline solutions.
Reliable liquid heating
Provides stable heat directly inside the tank.
Good electrical insulation
The PTFE sheath helps isolate the heating element from the liquid.
Chemical processing is one of the main applications for PTFE immersion heaters. They can be installed in chemical tanks to heat cleaning solutions, processing liquids, and other corrosive media.
The main advantage is the PTFE sheath, which provides better protection against chemical attack than many conventional metal heating tubes. Jaye Heater can also adjust the heating length and power according to the tank size and required heating temperature.
In electroplating and surface treatment equipment, maintaining a stable solution temperature can directly affect the production process. PTFE Immersion Heaters for Electroplating Tanks are commonly used for plating solutions, cleaning tanks, pickling solutions, and other chemical baths.
The PTFE construction helps reduce corrosion problems caused by chemical solutions. The heater can also be combined with temperature sensors or controllers to maintain a more stable working temperature during production.
Semiconductor and electronics manufacturing often involves chemical cleaning and surface treatment processes. PTFE Electric Immersion Heaters for Semiconductor Processing can be used where controlled heating of chemical solutions is required.
Because PTFE has good chemical resistance and a non-reactive surface, it is suitable for applications where contamination and corrosion need to be carefully controlled. Custom heating zones and dimensions can also be designed to match different processing tanks.
Q1: Can PTFE Electric Immersion Heaters be customized?
Yes. Jaye Heater can customize the heater according to the customer's tank size, liquid type, heating temperature, voltage, power, heating length, lead wire and mounting requirements.
Q2: What information is needed for a quotation?
Q3: Can a thermostat or thermocouple be added?
Yes. Thermostat, thermocouple or other temperature control solutions can be integrated according to the application.
