Can thermocouples be used in cryogenic temperatures?

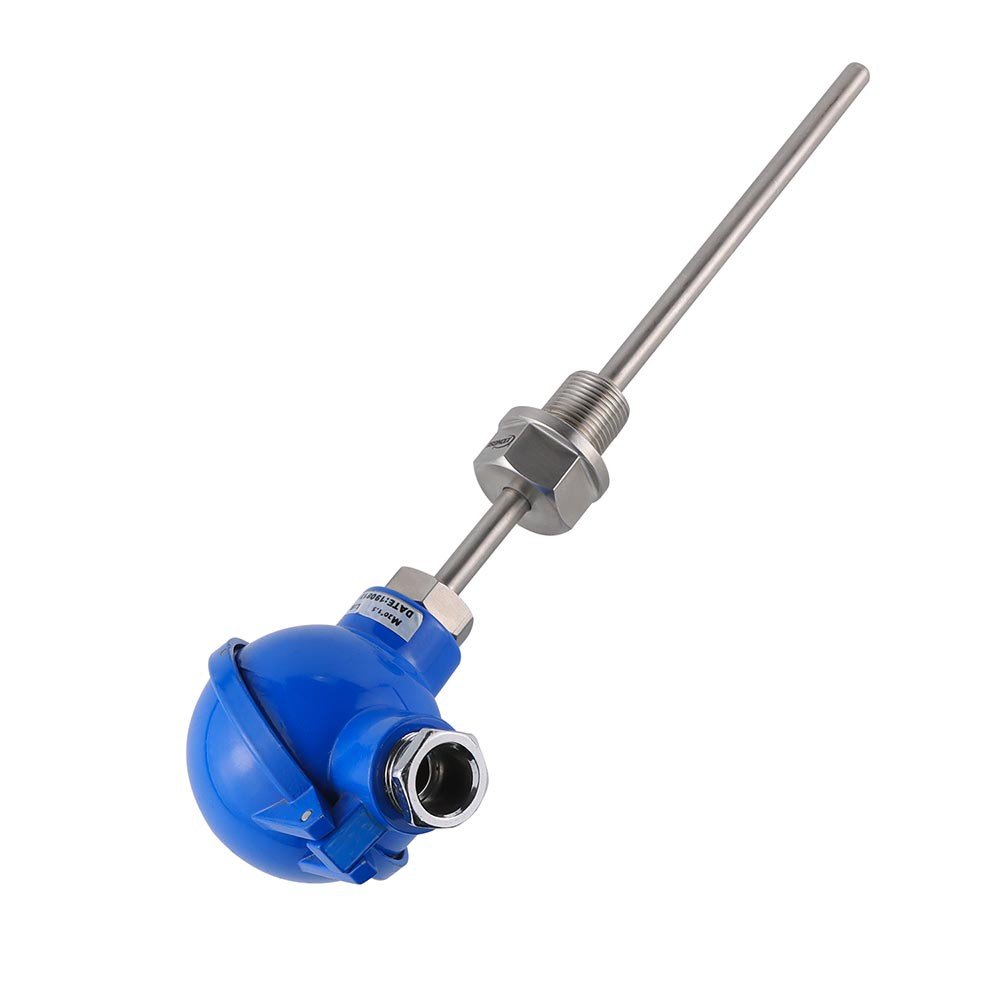

Yes, thermocouples can be used in cryogenic temperatures, but there are important considerations to ensure accurate measurements in these extreme conditions.
Cryogenic temperatures typically refer to temperatures below −150°C (−238°F) and are commonly used in fields like liquid nitrogen, liquid helium, superconductivity, and space exploration.
Thermocouples can measure cryogenic temperatures, but their performance varies depending on the type of thermocouple and the temperature range.
Material Selection:
Thermocouple types are made from different metal alloys, and not all of them perform well at cryogenic temperatures.
Type T (Copper-Constantan) thermocouples are commonly used for cryogenic temperatures because:
Copper has a good response at low temperatures, and Type T is especially accurate for temperatures between −200°C to +350°C.
Type E (Chromel-Constantan) also performs well in some cryogenic ranges, but it's not as commonly used as Type T for very low temperatures.
Accuracy:
Accuracy may degrade at cryogenic temperatures if the thermocouple materials are not chosen correctly. Some thermocouple types, such as Type K (Chromel-Alumel), may show nonlinearities and reduced sensitivity at low temperatures.
For Type K thermocouples, the output becomes less predictable and more prone to errors below −200°C, so they are less suitable for deep cryogenic applications.
Type T thermocouples are generally more reliable and provide more stable output at low temperatures, making them a preferred choice for cryogenic measurements.
Cold Junction Compensation:
Accurate temperature measurements require cold junction compensation because the thermocouple measures the temperature difference between the hot junction (where the temperature is being measured) and the cold junction (where the wires are connected to the measuring instrument).
At cryogenic temperatures, ensuring proper cold junction compensation is critical, as the temperature of the reference junction can significantly affect the measurements.
Often, the cold junction is kept at a stable known temperature (e.g., 0°C or room temperature) and a compensation algorithm is used to correct for the temperature difference.
Signal Processing:
The signal output from thermocouples (in the form of millivolt readings) is small, and at cryogenic temperatures, the voltage change per degree can be very low, leading to potential measurement noise.
High-precision instrumentation is required to measure the low voltage and ensure accurate readings. Instruments used with cryogenic thermocouples should have low noise and high resolution.
Material Properties at Low Temperatures:
Material stability: Some thermocouple materials might become brittle or change properties at very low temperatures (e.g., metal alloys like Chromel in Type K thermocouples).
Electrical resistance: At cryogenic temperatures, the electrical resistance of the materials changes, which can affect the thermocouple's response. Copper (used in Type T) maintains good electrical conductivity even at cryogenic temperatures, making it a better choice in these cases.
Physical Size and Design:
Size and design of the thermocouple may need to be adjusted for cryogenic applications. For example, you may need small-diameter wires for applications in confined spaces or with low heat capacities, such as in cryogenic storage tanks.
Special insulation (e.g., ceramic or fiberglass) may be required to avoid heat exchange with the environment, which could affect the thermocouple's measurements.
