How Quartz Lamp Heater Works For Powder and Paint Curing?

Quartz lamp heaters are high-intensity, short-wave infrared (IR) emitters used in industrial curing and drying processes. For powder coating and paint curing, they offer unparalleled speed, efficiency, and control, making them ideal for high-volume production lines, especially on heat-sensitive substrates like plastics and pre-assembled components.

How It Works: The Science Behind the Speed

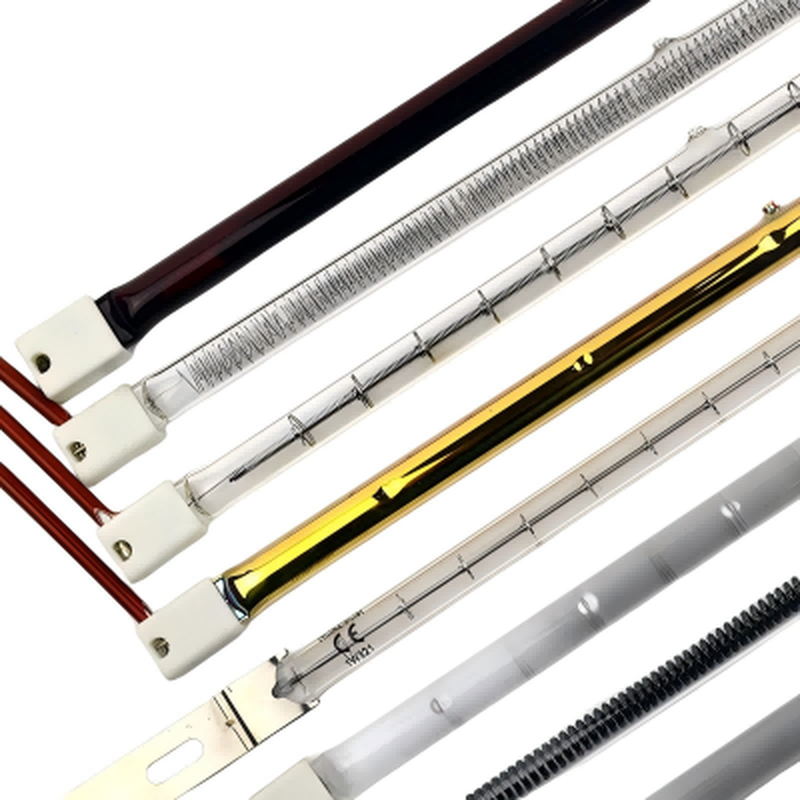

• The Heater: A quartz lamp consists of a tungsten filament sealed inside a transparent quartz tube. When electricity passes through, the filament heats up to extremely high temperatures, emitting intense infrared radiation in the short-wave spectrum .
• The Interaction: Unlike conventional convection ovens that heat the air, short-wave IR radiation passes directly through the air with minimal energy loss and is absorbed by the powder coat or paint film and the substrate beneath it.
• The Curing: The absorbed IR energy agitates the molecules within the coating, creating instant, intense heat. This rapid heating triggers the cross-linking reaction of the polymer resins in the powder, causing it to melt, flow out, and fully cure in a matter of seconds or minutes, not the 15-30 minutes required by a convection oven.

Key Advantages for Powder and Paint Curing

1. Extremely Fast Curing Times: The primary benefit. Curing cycles can be reduced from 20-30 minutes to 60-120 seconds. This dramatically increases production throughput.
2. Instant On/Off: Quartz lamps reach full operating temperature in seconds and cool down just as fast. This allows for precise zoning and significant energy savings, as they only consume power when parts are in the curing zone.
3. High Efficiency: Direct energy transfer to the part and coating means very little energy is wasted heating the air or the oven structure.
4. Selective Heating: Ideal for curing parts with mixed materials or pre-assembled items . The IR energy can be tuned to cure the coating without overheating the sensitive component.
5. Minimal Footprint: IR curing systems are much more compact than large convection oven tunnels, saving valuable factory floor space.
6. Superior Finish Quality: Rapid heating can lead to a better visual appearance (flow and leveling) and reduces the chance of dirt or contaminants settling on the wet film.

Typical Applications

Quartz lamp heaters excel in curing coatings on:

1. Automotive Components: Wheels, bumpers, trim, engine parts.
2. Appliances: Metal housings, control panels, racks.
3. Metal Furniture: Office chairs, filing cabinets, shelving.
4. Consumer Electronics: Laptop cases, speaker grills.
5. Plastic Parts: Where low thermal mass and selective curing are critical.
