Pipes, valves, flanges and other process components can be difficult to heat efficiently. Their curved or irregular shapes make it difficult to install a conventional rigid heater, while heat loss to the surrounding environment can make temperature maintenance more demanding. An insulated heating jacket provides a flexible heating solution that wraps around the outside of the component. It combines an electric heating element with thermal insulation and a protective outer fabric, allowing heat to be applied to the required area while reducing heat loss. For industrial applications, heating jackets can be custom-made for straight pipes, elbows, valves, flanges, pumps and other irregularly shaped components. Removable designs are also available when the equipment needs to be accessed regularly for inspection or maintenance.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of insulated pipe heating jacket in China, also supports custom service. Welcome to wholesale high quality insulated pipe heating jacket at competitive price from our factory.

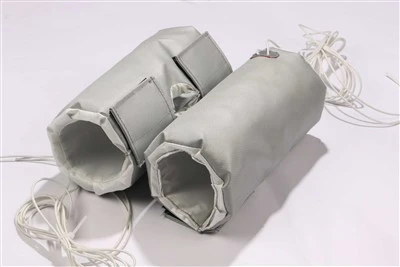

An insulated heating jacket is a flexible electric heater designed to surround an industrial component.
Unlike a simple heating pad, the jacket normally includes several functional layers:
| Layer / Component | Main Function |
|---|---|
| Outer protective fabric | Protects the jacket from the surrounding environment |
| Thermal insulation | Helps reduce heat loss |
| Heating element | Converts electrical energy into heat |
| Inner contact layer | Transfers heat toward the equipment surface |
| Temperature sensor | Measures temperature when temperature control is required |
| Fastening system | Keeps the jacket securely fitted around the component |
| Power cable / connector | Provides electrical connection |
Maintain Temperature
Some materials need to remain within a specific temperature range during production or transportation.
For example, a heating jacket can help maintain the temperature of materials whose viscosity changes significantly when they cool.
Protect Pipes From Freezing
Heating jackets can also be used for freeze protection.
When pipes or valves are exposed to low ambient temperatures, maintaining the surface above the freezing point can help reduce the risk of freezing.
For applications involving very low ambient temperatures, the required heating capacity should be calculated according to the pipe size, insulation, environmental conditions and target temperature.
Reduce Heat Loss
The heating element supplies heat, while the insulation layer helps retain that heat around the pipe or valve.
This is an important difference between an insulated heating jacket and a thin heater installed directly on a surface.
Temperature Control and Stability
It maintaining precise temperature control is essential to ensure the material's desired flow properties and prevent material degradation. Maintain a suitable temperature to prevent the pipes from freezing and becoming inoperable.
The main purpose is to heat or maintain the temperature of the equipment and the material inside it.
Typical applications include:
For pipes, the jacket can be designed around a specific outside diameter and heating length. For valves and other irregular components, the jacket can be divided into several shaped sections to follow the equipment geometry. Industry suppliers specifically list valves, flanges, pumps, manifolds and irregular assemblies among applications for removable heating jackets.
Because heating jackets are normally custom designed, there is no single standard specification that applies to every jacket.
The following table can be used as a general engineering reference rather than a fixed JAYE specification.
| Parameter | Typical / Reference Options |
|---|---|
| Application | Pipe, valve, flange, elbow, pump, manifold, process equipment |
| Supply Voltage | 24V / 48V DC, 110V / 120V AC, 220V / 230V / 240V AC; other voltages can be customized |
| Heating Power | Custom-designed according to equipment size, target temperature and heat loss |
| Power Density | Application-dependent; some industrial systems specify approximately 100–1500 W/m² |
| Common Temperature Range | Approximately 40°C–150°C for many general heating applications |
| Higher Temperature Designs | Approximately 180°C–250°C and above, depending on heater and fabric construction |
| High-Temperature Construction | Specialized designs can reach substantially higher temperatures |
| Insulation Thickness | Commonly several mm to several tens of mm, depending on application |
| Heater Type | Resistance wire, flexible heater element or other customized heating construction |
| Temperature Control | Thermostat, thermocouple, RTD/Pt100 or PID controller |
| Outer Material | Silicone-coated fiberglass, PTFE-coated fiberglass, PTFE, silica fabric or other suitable materials |
| Fastening | Velcro, straps, buckles, D-rings, hooks, lacing or other customized methods |
| Installation | Removable or semi-permanent |
| Shape | Customized to pipe, valve or equipment geometry |
| Cable Position | Customized according to installation requirements |
| Connector | Customized according to voltage, current and installation requirements |
Industrial pipes and valves do not always have simple shapes. For this reason, a heating jacket should be designed according to the actual equipment rather than selected only by a nominal product size.
JAYE-HEATER develops customized heating solutions according to the customer's equipment dimensions, heating area, voltage, power, temperature requirements, insulation requirements and installation conditions.
For a quotation, customers are encouraged to provide:
1. Equipment drawing
2. Clear product photos
3. Pipe diameter or valve dimensions
4. Required heating area
5. Voltage
6. Power or heating requirement
7. Target temperature
8. Ambient temperature
9. Cable and connector requirements
10. Required quantity
For complex or irregular components, a drawing is particularly helpful because it allows the heating jacket shape, heating area, insulation and fastening method to be considered before production.
Looking for a custom insulated heating jacket for a pipe, valve, flange or other industrial component? Contact JAYE-HEATER with your drawings, photos and heating requirements for a customized solution.
