Silicone Rubber Heating Elements for 3D Printer is a composite sheet made of silicone rubber and glass fiber cloth. The silicone rubber heater has good flexibility and can be in close contact with the heated object. With the help of these heaters, heat can be placed where needed. During the...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of silicone rubber heating elements for 3d printer in China, also supports custom service. Welcome to wholesale high quality silicone rubber heating elements for 3d printer at competitive price from our factory.

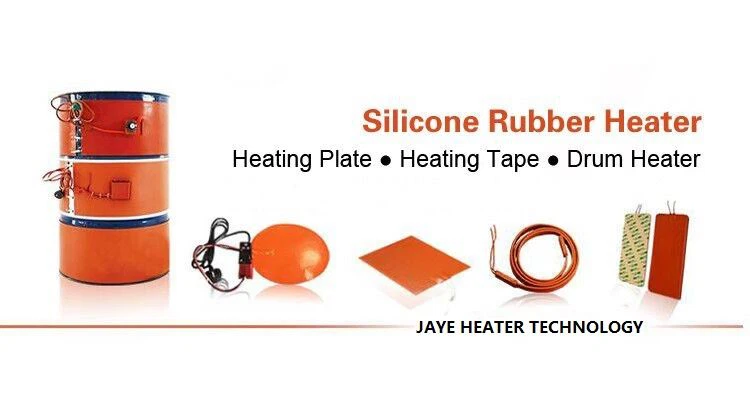

Silicone Rubber Heating Elements for 3D Printer is a composite sheet made of silicone rubber and glass fiber cloth. The silicone rubber heater has good flexibility and can be in close contact with the heated object. With the help of these heaters, heat can be placed where needed. During the application process, these heaters improve heat transfer, speed up the temperature rise and reduce power requirements. Glass fiber reinforced silicone rubber can provide heaters with dimensional stability without sacrificing flexibility. Since very little material separates the component from the part, heat transfer is fast and effective. The heater consists of a winding element or an etched foil element. The structure of the heater can produce a very thin heater, making it suitable for applications with limited space. Due to its high reliability, this product is highly competitive compared with other electric heating film products that are usually coated with graphite paste or resistor paste and other paste-like materials. As a red soft film that can be closely attached to different curved surfaces, the silicone rubber heater can be made into various shapes and powers.
Product specifications
• Size: up to 36 inches wide
• Standard thickness: 0.030", 0.043", 0.056"
•Maximum operating temperature: intermittently 400°F (204°C)
•Minimum working temperature: -60°F (-50°C)
• Maximum power density: 60 watts/square inch
• Maximum voltage: 600 volts
• Wattage tolerance: standard + 5%-10%
Main feature
1. The highest insulation temperature: 200℃
2. The best continuous working temperature is 150 degrees, the highest temperature is 230 degrees instantaneously.
3. Power deviation: 8% insulation resistance: >=5MΩ
4. Pressure strength: 1500V / 5s
5. Standard size: width: 20mm-1000mm; length: 25mm-1000mm; lead length: 200mm.
6. Fast thermal diffusion, uniform heat transfer, direct heating of objects; high thermal efficiency, high strength, long service life, safe work, and not easy to aging.

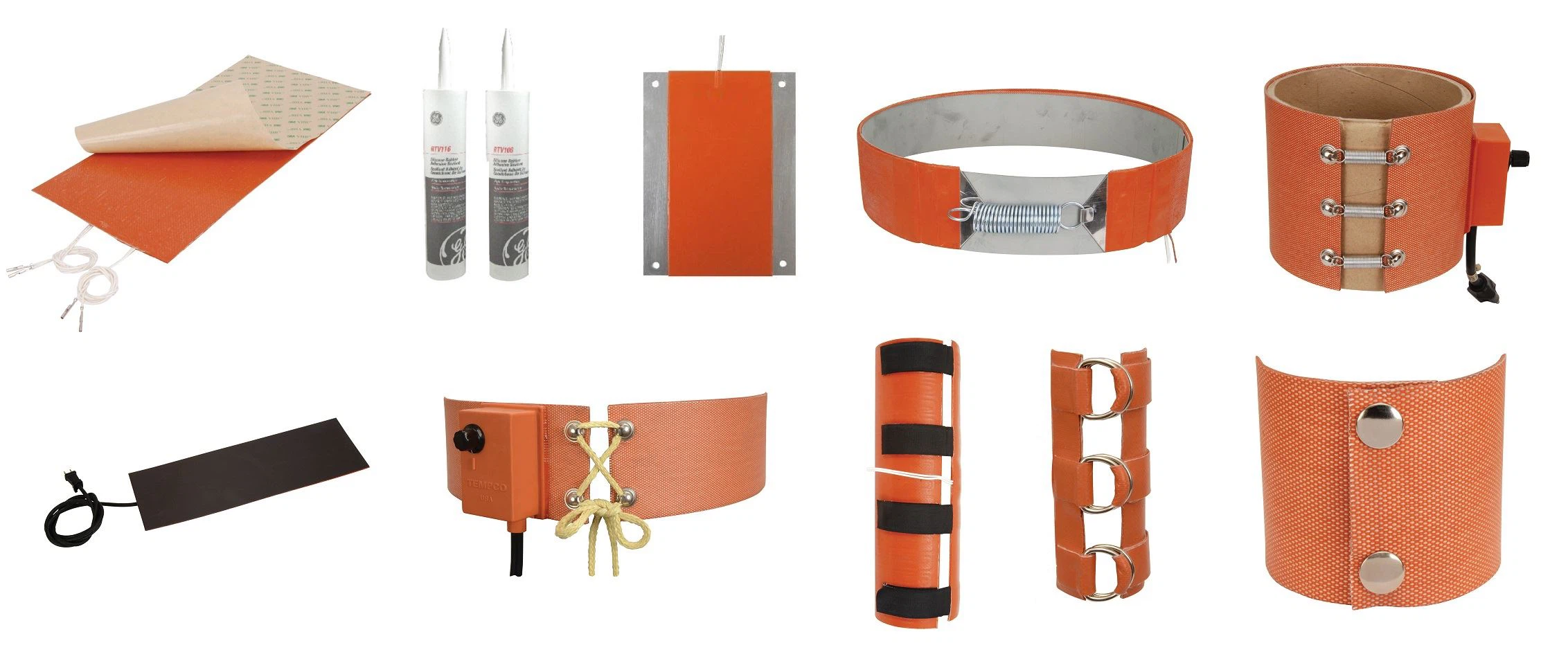

Installation method
• Pressure sensitive adhesive surface (PSAS)
• Silicone contact cement kit
•Glue on site
•Mechanical fasteners
•Factory bonding
Applications
Outdoor telecommunications equipment
Industrial equipment, pipes, barrels, tanks, etc.
Medical equipment
Outdoor electronic equipment
Thermal imaging of imaging equipment
Protective cover in cold and humid environment
Industrial ovens and heat treatment equipment
Ventilator stand
Laminating equipment
vessel
Note: The length can be customized according to customer requirements, the width does not exceed 1.2 meters, if it can be spliced more than 1.2 meters, the size, voltage, power and installation method can be customized according to customer needs.
