Products Description The Silicone Rubber Pail Band Heater is a flexible and efficient heating solution designed for drum, barrel, and cylindrical vessel heating. Constructed with a high-grade silicone rubber sheath, it offers excellent flexibility for easy installation and a snug fit around...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of silicone rubber pail band heater in China, also supports custom service. Welcome to wholesale high quality silicone rubber pail band heater at competitive price from our factory.

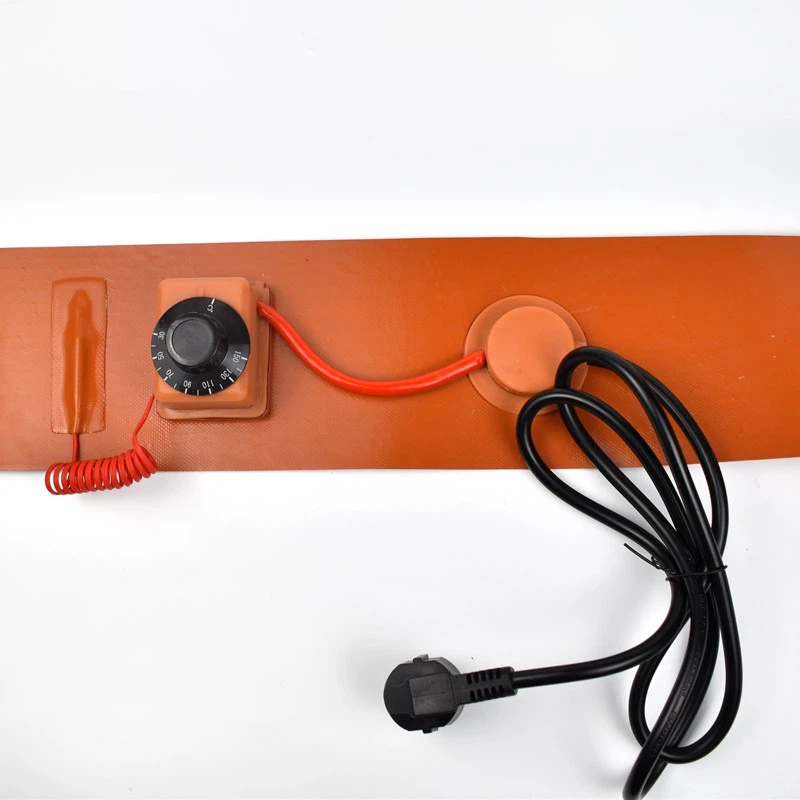

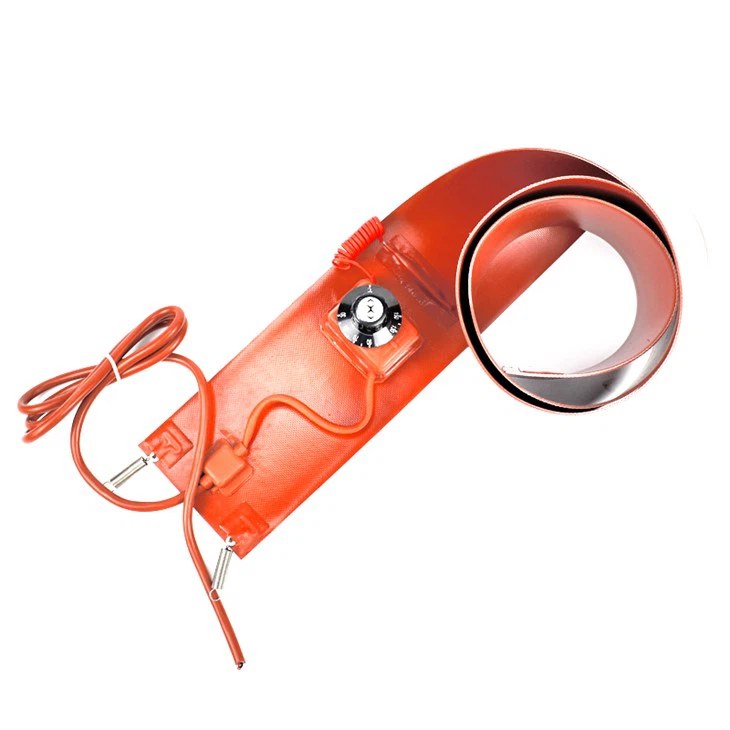

The Silicone Rubber Pail Band Heater is a flexible and efficient heating solution designed for drum, barrel, and cylindrical vessel heating.
Constructed with a high-grade silicone rubber sheath, it offers excellent flexibility for easy installation and a snug fit around curved surfaces. Embedded with a nickel-chromium resistance wire, it ensures uniform and reliable heat distribution.
The heater provides high thermal efficiency, is resistant to moisture and most chemicals, and is capable of operating at temperatures up to approximately 230°C.
It is widely used in industries requiring temperature maintenance for viscous fluids, chemicals, and food-grade products, and typically includes a built-in thermostat for precise temperature control.
|
Rated power |
1000-5000W or customized |
Lead length |
300mm standard, customizable |
|
Rated voltage |
12v-480v |
Wire tension |
15N *15N |
|
Maximum size |
1000-1200mm |
Minimum size |
20mm *20mm |
|
Ambient Temperature |
-60-250ºC |
Highest temperature |
250ºC |
|
Maximum thickness |
1.5mm-4mm |
Withstand voltage |
1.5KV |
|
Insulation resistance |
≥5MΩ |
Size deviation |
±0.5% |
|
Power deviation |
±5% |
Wire type |
Silicone braided wire |
|
Accessories options for heating pads |
|
|
Thermocouple |
K / J / withouut |
|
Controller |
Dial / Digital / Anti-explosion |
|
Plug |
American Standard / European Standard / British Standard |
|
Product Name |
Size |
Voltage/Power |
Weight |
|
200L Drum heater(Standard) |
250*1740mm |
220V/2KW(3KW) |
1.6KG |
|
200L Drum heater(Narrow) |
125*1740mm |
220V/1KW |
0.85KG |
|
100L Drum heater(Standard) |
250*1250mm |
220V/1.5KW |
0.8KG |
|
20L Drum heater(Standard) |
200*860mm |
220V/800W |
0.75KG |
1.What wattage and voltage will be used?
2.What is the shape and size?
3.What is the lead wire length?
4.How many do you need?
