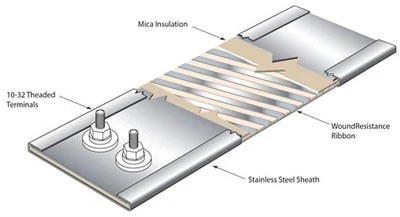

Mica heater with lead wire is made of stainless steel sheet, mica sheet, resistance wire/ strip , stainless steel sheet standard thickness is 0.3mm to 0.5mm, and in the middle , resistance wire/ strip wrap around the mica sheet, and add 1-2 pieces mica sheet again each side for insulation. They can be made to be many different kinds of shape as your requirement. It is the ideal solution for high watt densities and high operating temperature applications, especially for the plastics industry. Heating plate can be found in several types of dimensions, wattage, voltages and material. It is an inexpensive form of heating solution to external indirect heating.
| Product name | mica heater with lead wire |
| Power | 100～1000W |
| Voltage | 110V or as requested |
| Insulation Resistance (Cold) | ≥20 MΩ |
| Resistance | -5% to +10% |
| Connection Method | 1. High temperature line with metal hoses 2. Normal high temperature line 3. High-temperature line with metal woven net 4. Stainless steel high temperature plug |
When order,please advice:
1.Volt and Watt
2.Heater size
3.Connection way:lead wire,terminals,connection box,ceramic five holes etc
4.Drawing
5.Quantity
