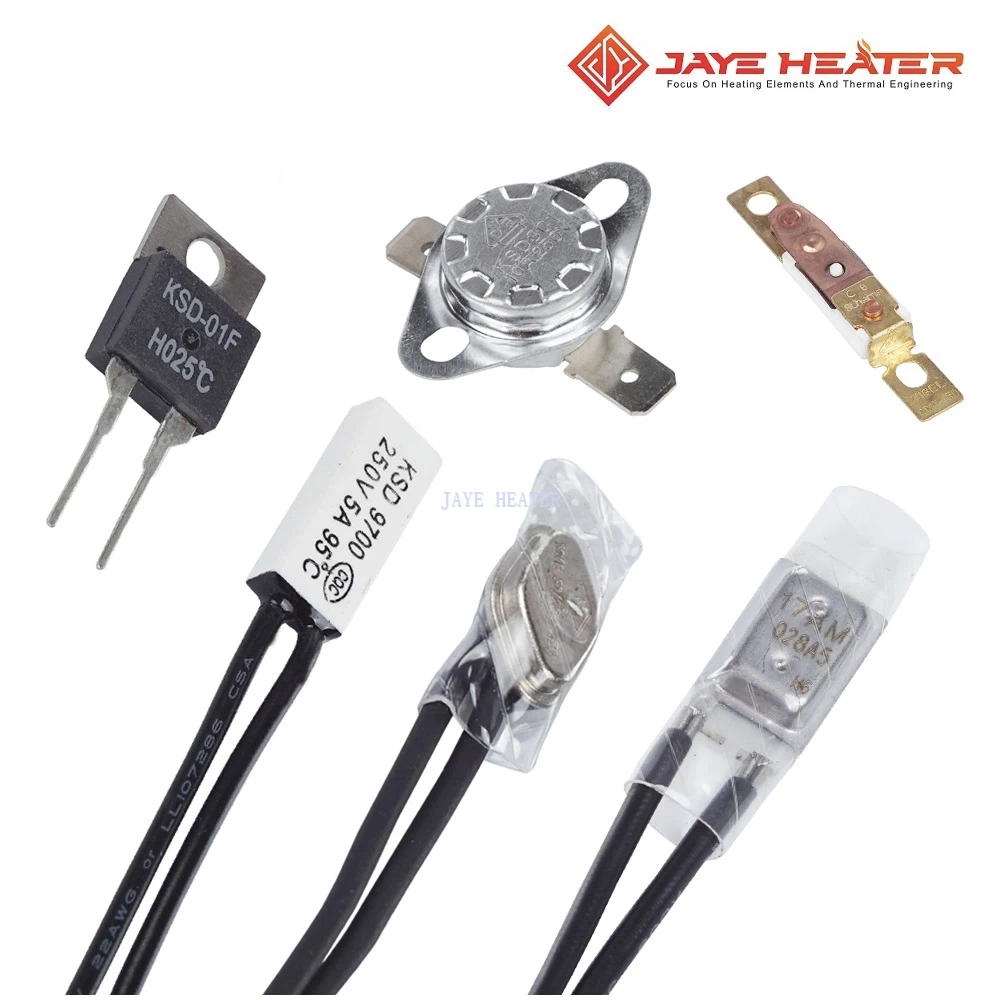

The Disc thermostat snap action is a type of temperature-sensitive switch that is commonly used in various heating, cooling, and ventilation systems. It operates based on the principle of a bimetallic strip, which is made up of two different metals with different rates of thermal expansion. When...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of disc thermostat snap action in China, also supports custom service. Welcome to wholesale high quality disc thermostat snap action at competitive price from our factory.
The Disc thermostat snap action is a type of temperature-sensitive switch that is commonly used in various heating, cooling, and ventilation systems. It operates based on the principle of a bimetallic strip, which is made up of two different metals with different rates of thermal expansion.
When the temperature of the bimetallic strip reaches a certain level, it will cause the strip to bend or flex, which in turn activates a switch mechanism. The switch mechanism is typically a snap-action switch, which means it switches rapidly between two positions with a distinct "click" sound.
This snap-action switch can be used to turn a heating or cooling system on or off, depending on the temperature of the bimetallic strip. The disc thermostat is designed to provide accurate and reliable temperature control, making it a popular choice in many applications.
| Electrical Rating: | AC 125V max 15A; AC250V 5A 10A 15A max 16A |
| Action Temperature: | 0~250 degree |
| Recovery and action temperature difference: | 10 to 25 degrees, or according to client's request. |
| Temperature deviation: | ± 3 / ± 5 / ± 10 degree or according to client's request |
| Circuit resistance: | ≤ 50MΩ (Initial value) |
| Insulation resistance: | ≥ 100MΩ (DC500V Normal State) |
| Life cycle: | ≥ 100000 |
