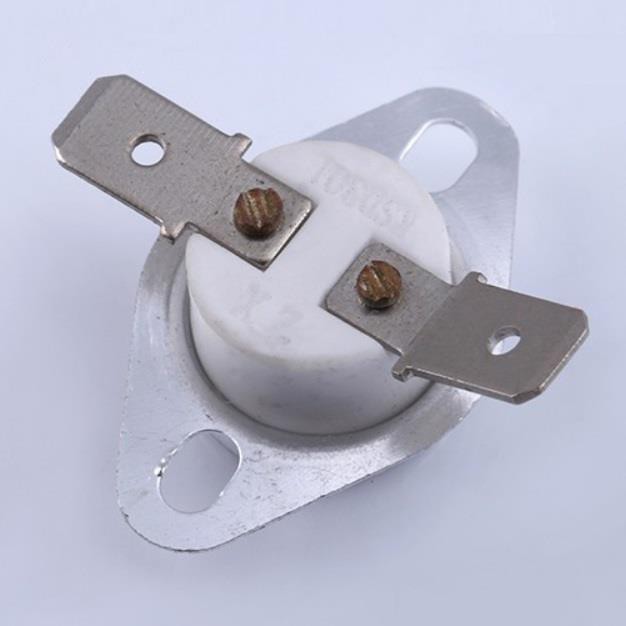

The double bimetal chip of the KSD301 is used as a temperature-sensing accessory. When the temperature reaches a set temperature, the bimetal chip generates internal stress after heating, opens / closes the contacts, and then turns on / off the current to achieve the effect of temperature control.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of home appliance ksd301 bimetal thermostat in China, also supports custom service. Welcome to wholesale high quality home appliance ksd301 bimetal thermostat at competitive price from our factory.
The double bimetal chip of the KSD301 is used as a temperature-sensing accessory. When the temperature reaches a set temperature, the bimetal chip generates internal stress after heating, opens / closes the contacts, and then turns on / off the current to achieve the effect of temperature control.
Detail Technical Specifications of KSD301 Thermostat:
1. Electrical Parameters: CQC, VDE, UL, CUL: AC 250V, 50 ~ 60Hz 5A/10A /15A (resistive load); UL: AC 125V, 50Hz, 15A (resistive load)
2. Operating temperature range: 0 ~ 240℃ (optional)
3. Temperature accuracy: ± 2 ± 3 ± 5 ± 10℃
4. Temperature difference between recovery and action: 8 ~ 100℃ (optional)
5. Wiring method: plug-in terminal 250 # (optional for bend 0 ~ 90°); plug-in terminal 187 # (optional for bend 0 ~ 90°, thickness 0.5, 0.8mm optional)
6. Service life: ≥100,000 times
7. Electric strength: AC 50Hz 1800V for 1min, no flicker, no breakdown
8. Contact resistance: ≤50mΩ
9. Insulation resistance: ≤100MΩ
10. Contact form: Normally closed: when the temperature rises, the contact opens; when the temperature drops, the contact opens; Normally open thermostat: when the temperature rises, the contacts turns on; when the temperature drops, the contacts turn off.
11. Enclosure protection level: IP00
12. Grounding method: It is connected to the grounding metal parts of the device by the thermostat metal sheath.
13. Installation method: KSD301 series, it can install movable ring, such as ordinary shape, small round shape, flat shape; a ordinary large aluminum cover with installation hole or a extend aluminum cover with installation hole.
14. Temperature working range: -25 ℃ ~ + 240 ℃ + 1 ℃ ~2 ℃
The Difference on Types of Normal Open and Closed:
The most obvious difference that is Turn off/Turn on the power. Normally closed type is to turn off the power at certain temperature, and normally open type is to turn on the power at certain temperature.
