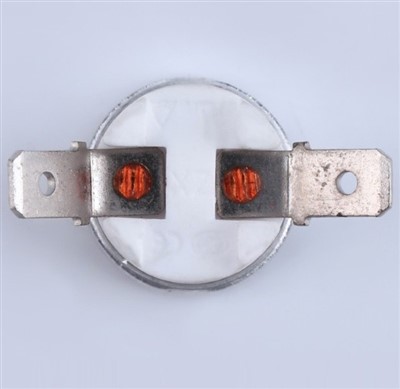

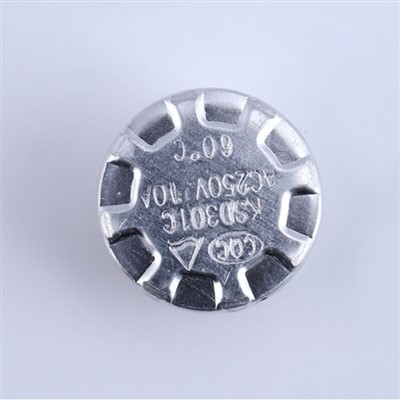

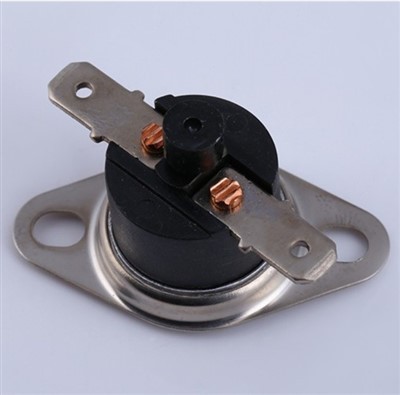

KSD301 Thermostat Bimetal Thermostat

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ksd301 thermostat bimetal thermostat in China, also supports custom service. Welcome to wholesale high quality ksd301 thermostat bimetal thermostat at competitive price from our factory.



KSD Thermostat, referred to as a snap-action thermostat or snap-action temperature switch, utilizes a snap-action mechanism for regulating temperature-sensitive equipment. This thermostat finds widespread use in scenarios requiring swift temperature modulation.







Rated voltage and current	AC 250V/16A, AC 125V/15A
Temperature range	0-250ºC
Working temperature difference	± 15
Service life	100, 000 times

Ceramic



Bakelite



1. Material Selection: Choose metals with differing thermal expansion rates for the bimetallic disc.



2. Bimetallic Disc Formation: Bond the selected metals together using heat and pressure.

Shape the resulting bimetallic structure to create a curved disc.



3. Stamping and Cutting: Use precision techniques to cut and shape the bimetallic disc.

Create tabs or contacts on the disc for electrical connections.



4. Assembly: Combine the bimetallic disc, contacts, springs, and other components.



5. Calibration and Testing: Subject the bimetallic disc to controlled temperature environments.

Fine-tune the temperature at which the snap action occurs.



6. Housing and Encapsulation: Place assembled components in a protective housing or casing.



7. Electrical Connection: Attach electrical leads or connectors to the contacts.



8. Quality Control: Conduct thorough quality checks to ensure performance and safety.



9. Packaging: Package the thermostats with documentation and instructions.







KSD Thermostats are often used in applications that require quick and precise temperature control, such as in HVAC systems, appliances (like ovens and dryers), automotive cooling systems, and industrial processes. The advantage of KSD mechanisms is that they can provide a sudden and definitive switch from one state to another, allowing for efficient and accurate temperature management.



1. Household Appliances:

• Refrigerators: They control the temperature inside the refrigerator and freezer compartments.
• Ovens and Stoves: Used to maintain the desired cooking temperature.
• Toasters: Prevent excessive heating by turning off the heating elements when the desired toasting level is reached.
• Dishwashers: Regulate water temperature during different cycles.
• Clothes Dryers: Control the drying temperature to prevent over-drying and save energy.

2. HVAC Systems:

• Furnaces: Manage the heating elements to maintain a comfortable indoor temperature.
• Air Conditioners: Control the cooling process by turning the compressor on and off.

3. Water Heaters: Snap-action thermostats regulate the water temperature in water heaters, preventing overheating and ensuring safe water temperatures for domestic use.



4. Automotive Applications: Snap-action thermostats are used in vehicles to regulate temperature in cooling systems. They control the operation of the radiator fan and the flow of coolant to prevent engine overheating.



5. Hot Water Dispensers: These devices often use snap-action thermostats to maintain the water at a consistent temperature for easy access.



6. Incubators: In medical and research contexts, snap-action thermostats can regulate the temperature in incubators used for growing cultures or hatching eggs.



7. Space Heaters: Snap-action thermostats control space heaters to maintain a comfortable temperature in indoor spaces.



8. Food Warmers: In buffet setups and food service equipment, snap-action thermostats are used to maintain the temperature of prepared food.
