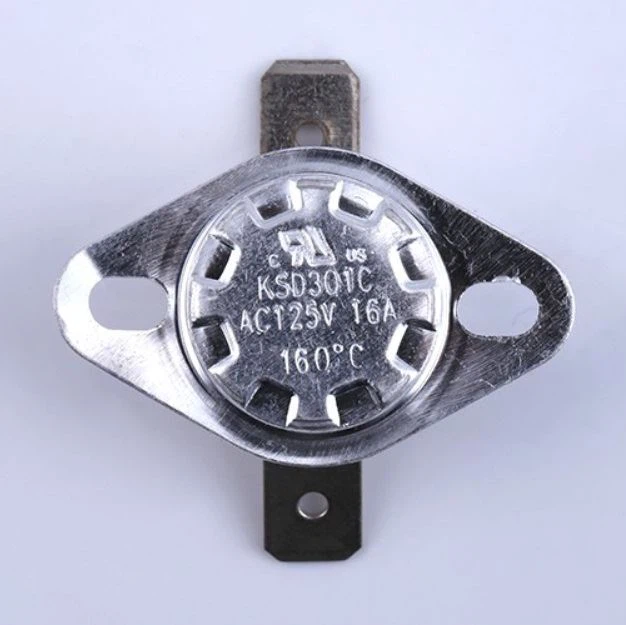

KSD thermostat is a kind of temperature controller which can be classified according to temperature, material, or installation method. According to the nature of the action: it can be divided into normally open action and normally closed action. According to the temperature, it can be divided into: 0 degrees 5 degrees 10 degrees 15 degrees 20 degrees 25 degrees 30 degrees 35 degrees, etc. According to the material, it can be divided into: bakelite body and ceramic body.
KSD thermostat is a kind of temperature controller which can be classified according to temperature, material, or installation method. According to the nature of the action: it can be divided into normally open action and normally closed action. According to the temperature, it can be divided into: 0 degrees 5 degrees 10 degrees 15 degrees 20 degrees 25 degrees 30 degrees 35 degrees, etc. According to the material, it can be divided into: bakelite body and ceramic body.
Technical Parameters:
1. Electrical parameters: 10A~16A (resistive load)
2. Operating temperature range: 40~160℃
3. Temperature accuracy: ±2, ±3, ±5
4. Temperature difference between reply and action: -20℃ (optional)
5. Service life: automatic reset ≥ 30,000 times
6. Electrical strength: AC 50HZ 1800V lasts 1min, no flicker, no breakdown
7. Contact resistance: ≤50mΩ
8. Insulation resistance: ≥100mΩ
Benefits:
It has the characteristics of stable performance, high precision, small size, light weight, high reliability, long life and a bit of radio interference.
Common Temperature Specifications:
Operating temp. 30±3℃ Reset temp. ≥15℃
Operating temp. 35±3℃ Reset temp. 20±5℃
Operating temp. 40±3℃ Reset temp. 25±5℃
Operating temp. 45±3℃ Reset temp. 30±5℃
Operating temp. 50±3℃ Reset temp. 35±5℃
etc......
If you need other temperature, please contact us for quotation.
