KST Adjustable Bimetallic Thermostat For Oven

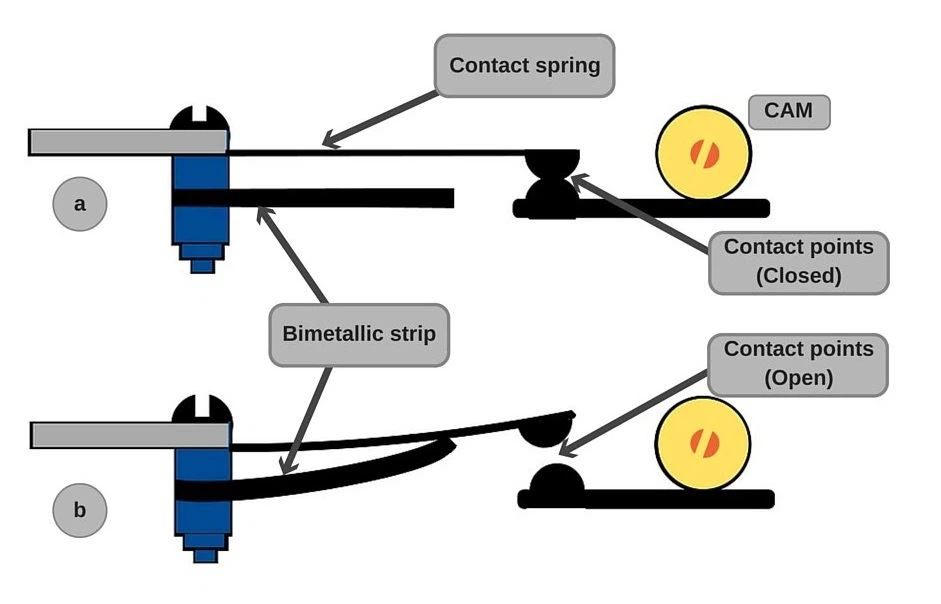

The KST adjustable bimetallic thermostat for oven is a kind of bimetallic sheet after a fixed temperature as a thermally sensitive reaction component, using the principle that the temperature sensing element is bent and deformed by the temperature change, and the moving contact is quickly moved through the elastic sheet with the energy storage structure to achieve The purpose of opening or closing the circuit, so as to achieve the effect of controlling the temperature. When the temperature of the main part of the product increases, the heat generated is transferred to the bimetal, and it will act quickly when it reaches the set value of the action temperature. The contact is opened or closed through physical and mechanical action. When the temperature drops to the reset temperature setting, The bimetallic strip will quickly return to its original state, making the contacts close or open to achieve the purpose of connecting or disconnecting the circuit, thereby controlling the circuit.
Structure:
The temperature control switch includes a body bracket, and also includes a cam temperature adjustment shaft, a positioning shrapnel, a shell, and a porcelain column. The shell is riveted on the body and forms a limit cavity with the bracket. The cam temperature adjustment shaft is set above the limit cavity. And pass through the shell downwards, the bottom of which is set in the limiting cavity, one end of the porcelain column is sleeved on the bottom of the cam temperature adjustment shaft, the other end is passed down through the body bracket, and the positioning shrapnel is fixed on the side wall of the limiting cavity. on.
Can support customization:
① The structure and size of the mounting plate can be changed according to the actual use of the customer.
②Terminals can be screwed terminals according to customer requirements, and the position of the terminals can also be changed according to actual usage.
③The temperature can be customized according to customer requirements.
