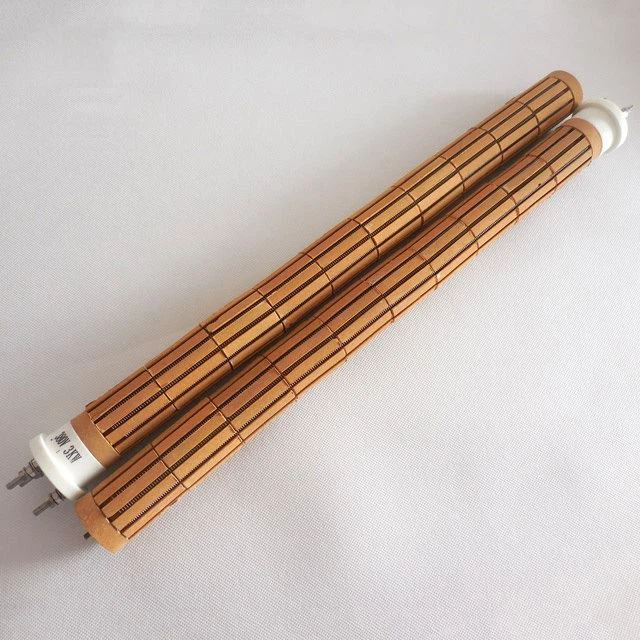

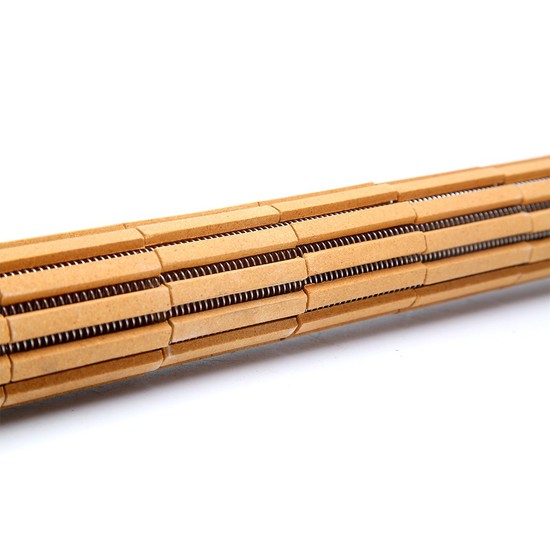

Ceramic cylindrical heating rod element is a type of electric resistance heater designed for various heating applications. These heaters consist of a ceramic insulating element (the bobbin) and a resistive wire wound around it. The ceramic material provides electrical insulation, allowing the heater to operate safely even at high temperatures.
Ceramic cylindrical heating rod element is characteristic by excellent oxidation resistance and very good form stability resulting in long element life.they are typically used in electrical heating elements in industrial furnaces and home appliances.The inner core of the electric heat radiant tube is composed of the u-shaped axial array end welded resistance wire and ceramic support frame.There is no shield between inner core and the outer protective sleeve.Its heat dispersion is good.The rated working temperature of electric heating radiant tube is 1000 degrees.The material of resistance wire Cr20Ni80 or 0 cr21Al6Nb. lts surface temperature can reach 1200 degrees.The highest working temperature of this kind of electric heating radiant tube can reach 1000 degrees.
| Product name | ceramic cylindrical heating rod element |
| Sheath material | 304 Stainless steel, SUS304, SUS310S |
| Resistance | Ni-Cr 80/20, melting point 1400 °C |
| Power | 3000W |
| Voltage | 220V |
| Diameter | 26/30/43/46~47/57/ Customized |
Ceramic cylindrical heating rod elements are known for their fast response and quick heating capabilities. They can reach high temperatures relatively quickly, making them suitable for applications where rapid heating is necessary.
Ceramic cylindrical heating rod elements are durable and capable of withstanding high temperatures. The ceramic material is resistant to thermal shock and can endure rapid temperature changes, ensuring a longer lifespan for the heater.
