What is Thick Film Heater for Medical Sterilization Tray Thick Film Heater for Medical Sterilization Tray is a compact and efficient heating solution designed for medical sterilization trays and sterilization equipment. It provides uniform heat distribution, fast thermal response, and stable...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of thick film heater for medical sterilization tray in China, also supports custom service. Welcome to wholesale high quality thick film heater for medical sterilization tray at competitive price from our factory.
Thick Film Heater for Medical Sterilization Tray is a compact and efficient heating solution designed for medical sterilization trays and sterilization equipment. It provides uniform heat distribution, fast thermal response, and stable temperature control to support reliable sterilization processes.
The thick film heater is comprised of screen-printing dielectrics (5 layers), resistance (palladium-silver), conductor (silver) and isolation glazes on the substrate and sintered 8 times at temperature over 900ºC.
|
Voltage |
Can be make according to request |
||
|
Power |
Can be make according to request | ||
|
Base Material |
stainless steel |
||
|
Ramp-Up Rate |
150ºC/s |
||
|
Dielectric Strength |
1,500V/5mA/60s |
||
|
Leakage Current |
≤0.25mA |
||
|
Tube Thickness |
0.8-1mm |
||
|
Heat Density |
>60W/cm² |
||
|
Service Life |
>10,000 hours |
||
The manufacturing of stainless steel thick film heaters typically involves the following steps:
Substrate Preparation: The stainless steel substrate is cleaned and prepared to ensure proper adhesion of the thick film paste.
Screen Printing: A thick film paste containing metal oxides and conductive materials is screen-printed onto the stainless steel substrate in the desired pattern.
Curing: The printed substrate is cured or fired at high temperatures to solidify the paste and adhere it to the substrate.
Finishing: Additional protective coatings may be applied to enhance durability and environmental resistance.
Testing: The heaters are tested for electrical resistance, power output, and uniformity of heat distribution.

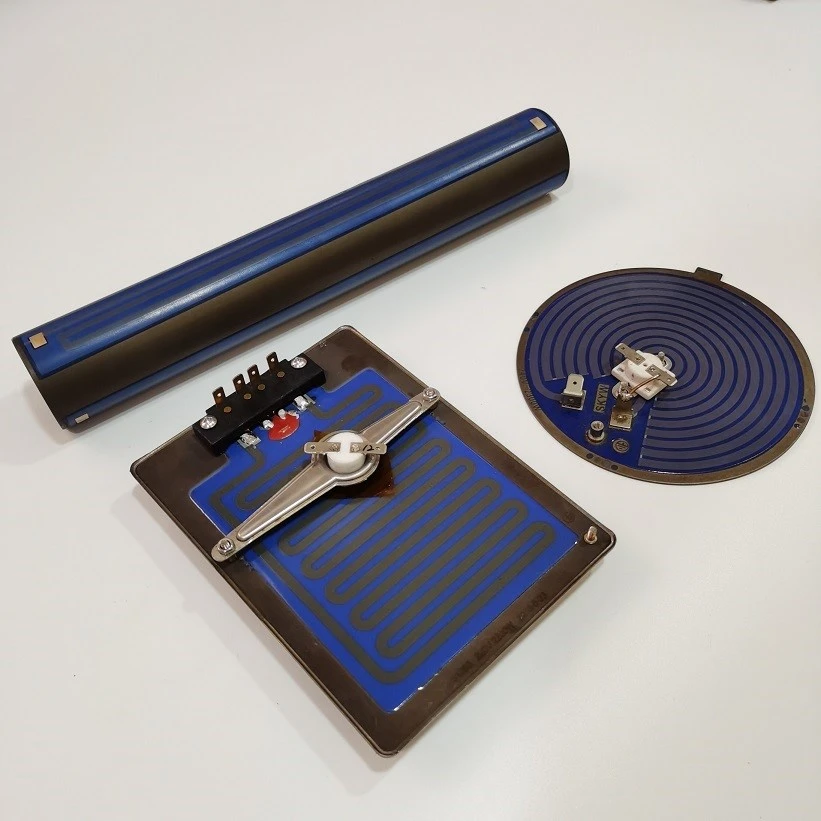

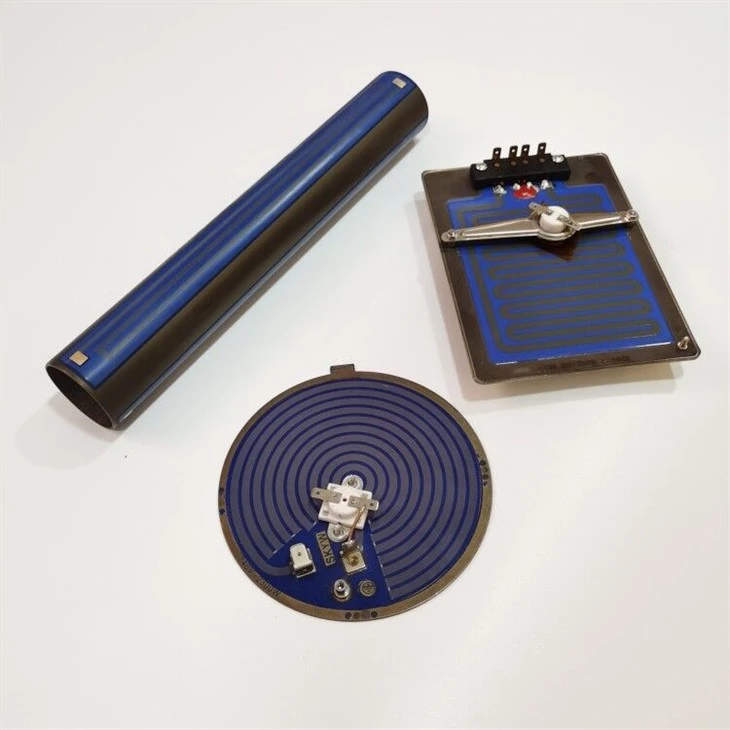

Thick Film Heater for Medical Sterilization Tray
Thick Film Heater for Medical Sterilization Tray
Q1: Can thick film heaters be used for medical sterilization trays?
Yes. Thick film heaters can be integrated into medical sterilization trays and sterilization equipment to provide fast and uniform heating. The flat structure allows efficient heat transfer across the tray surface, helping maintain stable temperature performance during sterilization processes.
Q2: What are the advantages of using a thick film heater in medical sterilization equipment?
Thick film heaters offer several advantages for medical sterilization applications, including rapid heating, uniform temperature distribution, compact design, and high reliability. Compared with traditional heating elements, the printed heating circuit design allows more flexible customization for different tray sizes and heating requirements.
Q3: Can the thick film heater be customized for different sterilization tray designs?
Yes. JAYE provides customized thick film heaters according to specific application requirements, including heater size, voltage, power, resistance value, substrate material, and installation method. Customers can provide drawings or technical requirements for developing a suitable heating solution for medical sterilization trays.
