Cartridge Heaters for PET Extruder Backflush Filters: Reliable Heating Solutions for Polymer Processing Systems



PET extrusion is a continuous manufacturing process where stable temperature control is essential for maintaining product quality and production efficiency. During extrusion, polymer materials must remain at a controlled temperature to ensure proper melting, flow, and filtration performance.

In PET extrusion systems, backflush filters are used to remove contaminants and impurities from the polymer melt while supporting continuous operation. The filter area requires reliable heating to prevent material solidification, maintain melt flow, and reduce the risk of pressure fluctuations caused by temperature changes.

Cartridge heaters, also known as single-ended heating elements, are commonly used in PET extruder backflush filters because they provide concentrated heat in a compact installation space. Their small diameter, high heating efficiency, and customizable design make them suitable for filter housings, melt filtration systems, and other polymer processing equipment.





During PET extrusion, molten polymer passes through filtration systems before entering downstream equipment. If the temperature around the filter housing decreases, the polymer may become more viscous or partially solidify, affecting filtration performance and increasing the load on the extrusion system.

A properly designed cartridge heater helps maintain a stable temperature around the filter body, allowing the polymer melt to flow smoothly through the filtration area.

The main heating requirements for PET backflush filters include:

• Stable heat output during continuous operation
• Good heat transfer between the heater and filter housing
• Resistance to repeated heating cycles
• Reliable performance in high-temperature environments
• Compact installation for limited equipment space

Because PET processing temperatures are typically high compared with ordinary industrial heating applications, selecting suitable heater materials, insulation structure, and power design is important for long-term reliability.

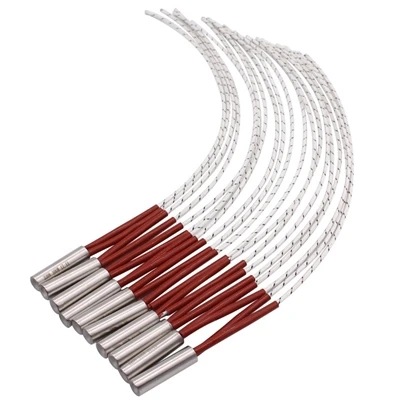

Cartridge heaters are cylindrical electric heating elements designed to be inserted into drilled holes inside metal components. Heat is transferred from the heater sheath to the surrounding filter body, creating indirect heating.

For PET extruder backflush filters, cartridge heaters are usually installed into heating blocks or filter housings where direct contact with polymer material is not required.

Jaye Heater provides customized cartridge heaters according to equipment requirements, including heater diameter, length, voltage, power, lead configuration, and installation dimensions.

Common design considerations include:

• Matching heater size with the filter housing design
• Selecting suitable sheath materials according to operating temperature
• Optimizing watt density for stable heat transfer
• Using appropriate insulation and sealing structures
• Supporting temperature control with thermocouples when required

• Compact Heating Design

PET extrusion equipment often has limited installation space. Cartridge heaters provide a compact heating solution because the heating element can be directly installed into a machined hole inside the filter housing.



• Efficient Heat Transfer

A close fit between the heater and the installation bore helps improve heat transfer and reduces thermal resistance. Proper installation is important for achieving stable operating temperatures.



• Reliable Operation Under Repeated Cycles

Backflush filters may experience frequent temperature changes during operation and maintenance cycles. A properly designed cartridge heater can withstand repeated heating and cooling processes while maintaining consistent performance.



• Easy Customization

Different extrusion systems have different filter designs. Cartridge heaters can be customized in various dimensions and electrical configurations to match OEM equipment requirements.





Cartridge heaters are widely used in polymer processing equipment, including:

• PET extruder backflush filters
• Polymer melt filtration systems
• Extrusion die heating systems
• Injection molding equipment
• Plastic processing machinery
• Heating blocks and metal manifolds

In these applications, the heater is usually integrated into the equipment structure to maintain the required processing temperature and improve production stability.





• What type of heater is commonly used for PET extruder backflush filters?

Cartridge heaters are commonly used because they provide concentrated heating in a compact cylindrical design and can be installed directly into filter housings or heating blocks.



• Why does a PET filter system require heating?

Heating helps maintain polymer melt temperature and prevents material from becoming too viscous or solidifying around the filtration area.



• Can cartridge heaters be customized for different extrusion machines?

Yes. Cartridge heaters can be customized in dimensions, voltage, power, lead configuration, and temperature sensing options according to equipment requirements.



• Which sheath material is suitable for PET extrusion applications?

The suitable material depends on operating temperature and application conditions. Stainless steel and Incoloy sheath options are commonly considered for industrial high-temperature heating applications.



• What information is needed for a cartridge heater quotation?

Customers should provide heater dimensions, voltage, power, installation drawing, operating temperature, and application details for accurate evaluation.
