A cartridge heater is a compact electric heating element designed to transfer heat directly to a metal block, water channel, heating chamber, or other metal component.
Unlike a traditional tubular heater, a cartridge heater is usually installed inside a precisely machined hole. The heater remains relatively small while delivering a considerable amount of heat through its outer metal sheath.
A typical cartridge heater consists of:
The resistance wire generates heat when electrical current passes through it. The heat then travels through the compacted magnesium oxide insulation and metal sheath before being transferred to the surrounding component.
This simple construction allows cartridge heaters to be manufactured in different diameters, lengths, voltages, and wattages according to the requirements of the coffee machine.
Coffee machines often have very limited internal space. At the same time, they need to heat water quickly and maintain a relatively stable temperature.
This is where cartridge heaters have an advantage.

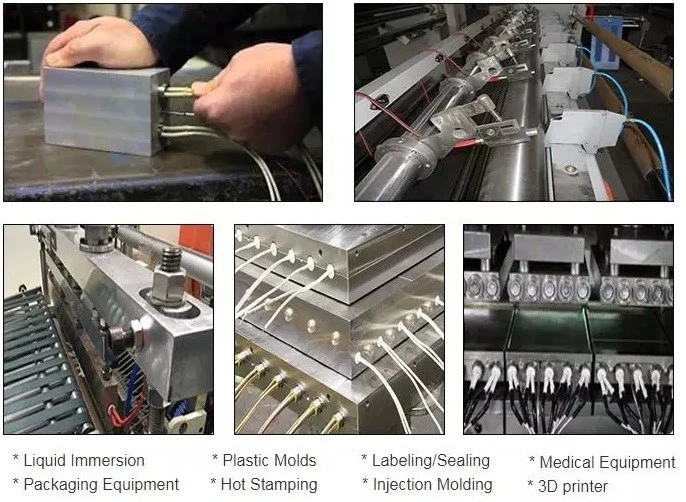

Their cylindrical shape allows them to be inserted directly into a metal heating block or other conductive component. Instead of heating a large area unnecessarily, the heat can be concentrated where it is needed.
For example, a coffee machine may use a cartridge heater inside an aluminum heating block. Water passes through a channel in the block, while the heater supplies heat from the surrounding area.
One of the most common applications is heating a metal block.
In this type of design, the cartridge heater is inserted into a drilled hole in the heating block. The water channel is positioned close to the heater so that heat can be transferred efficiently from the heater to the water.
Aluminum is often used for the heating block because of its good thermal conductivity and relatively low weight.
The basic heat transfer process can be described as:
Electrical energy → Cartridge heater → Metal heating block → Water → Coffee brewing system
The heater itself does not necessarily need to come into direct contact with the water. Instead, the surrounding metal block transfers the heat to the water.
This design can simplify the electrical insulation requirements and makes it easier to integrate the heating element into a compact coffee machine.
Espresso brewing requires water to reach a controlled temperature before it passes through the coffee grounds.
If the water is too cold, the coffee may taste weak or under-extracted. If the temperature is too high, the coffee can become bitter or develop an undesirable burnt taste.
For this reason, the heating system needs to respond quickly while maintaining stable temperature control.
A cartridge heater can provide a relatively high watt density in a small space. This makes it useful for compact heating blocks where the available installation area is limited.
The actual heater specification depends on the machine design, including:
There is therefore no single cartridge heater specification that fits every coffee machine.
Coffee machines that include a steam function have additional heating requirements.
Steam is normally generated by heating water to a higher temperature than that used for standard coffee brewing. The heating system therefore needs to provide enough energy to generate steam while maintaining reliable temperature control.
Cartridge heaters can be incorporated into steam blocks, heating chambers, or other metal components used in the steam-generation system.
For commercial espresso machines, the heater may need to operate repeatedly throughout the day. In this situation, the choice of sheath material, insulation, resistance wire, wattage, and operating temperature becomes particularly important.
Space is always an important consideration when designing a coffee machine.
The internal structure may need to accommodate:
A large heating element can make the overall machine unnecessarily complicated.
Cartridge heaters are available in relatively small diameters, allowing engineers to install them directly inside metal components without significantly increasing the size of the heating system.
This makes them especially suitable for compact espresso machines, automatic coffee machines, commercial coffee equipment, and other beverage equipment.
Another important advantage is high watt density.
Because the resistance wire is concentrated inside a small cylindrical body, a cartridge heater can generate a substantial amount of heat from a relatively small surface area.
This can help reduce heating time when the heater is correctly matched to the heating block and operating conditions.
However, higher watt density does not automatically mean better performance.
If the heater is operated with insufficient heat transfer, the sheath temperature can rise excessively. This may shorten heater life or damage the surrounding component.
For this reason, the relationship between heater wattage, hole fit, heat transfer, material, and temperature control should be considered together during the design stage.
When selecting a cartridge heater for coffee equipment, voltage and wattage are only part of the specification.
The following parameters should normally be confirmed:
| Parameter | Typical Consideration |
|---|---|
| Heater Type | Cartridge Heater / Single-Ended Heater |
| Sheath Material | Stainless Steel or other suitable alloy |
| Diameter | Selected according to the mounting hole |
| Length | Based on the heating zone |
| Voltage | According to the coffee machine power supply |
| Wattage | Based on heating requirement |
| Heating Zone | Full or partial heating length |
| Lead Wire | Length, insulation and terminal type |
| Operating Temperature | According to the heating system |
| Mounting | Inserted into a machined hole |
| Temperature Sensor | Thermistor, thermocouple or other sensor |
| Quantity | Based on the heating block design |
For OEM projects, the heater can also be customized according to the customer's drawing and installation requirements.
An incorrectly selected cartridge heater can cause several problems.
Slow Heating
If the heater power is too low, the coffee machine may take too long to reach the required temperature.
Overheating
If the power is too high for the heating block or control system, the heater or surrounding components may operate at excessive temperatures.
Short Heater Life
Poor heat transfer, incorrect hole dimensions, excessive watt density, or insufficient temperature control can contribute to premature heater failure.
Uneven Heating
The position and length of the heating zone can affect how heat is distributed through the heating block.
For this reason, the heater should be considered as part of the entire thermal system rather than as an independent component.
Depending on the machine design, cartridge heaters may be considered for applications such as:
The exact application depends on the construction and thermal requirements of the equipment.
A cartridge heater may be a small component inside a coffee machine, but its performance can have a direct impact on the machine's heating speed, temperature stability, energy consumption, and service life.
Its compact cylindrical design makes it particularly useful for heating blocks and other confined spaces. With the correct diameter, length, wattage, sheath material, and temperature control system, a cartridge heater can be integrated into a reliable coffee machine heating solution.
For OEM coffee machine manufacturers, the best approach is to determine the heating requirements and installation dimensions first, then select or customize the cartridge heater around the actual design.
JAYE Heater provides customized cartridge heaters for OEM applications. Customers can provide the required dimensions, voltage, wattage, heating length, lead wire specifications, or drawings, and the heater can be developed according to the specific installation and heating requirements.
