How 230V Ceramic Band Heaters Work In Plastic Injection Molding?

In plastic injection molding, 230V ceramic band heaters are commonly used to maintain the temperature of the metal mold or barrel that melts the plastic material before it is injected into the mold cavity. They are a crucial part of the heating system, and their role is to ensure consistent and efficient heat transfer. Here's how they work and why they're important:

1. What are Ceramic Band Heaters?

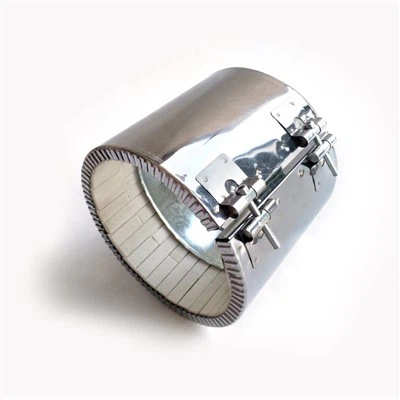

Ceramic band heaters are electrical heating elements that wrap around a cylindrical object, like the barrel of an injection molding machine. They are called "ceramic" heaters because they typically have a ceramic core that is designed to distribute heat evenly and efficiently.

Construction: A ceramic band heater consists of a metal band (usually stainless steel) that wraps around a ceramic core. The core is made of a high-temperature resistant material like alumina or other ceramics, and embedded within this core are heating elements (often resistance wire or bands).

2. How Do They Work?

Electrical Resistance: When electricity passes through the heating element, it creates resistance, which produces heat. The heat is then transferred to the ceramic core. The ceramic material is an excellent insulator, so it helps maintain the heat within the band heater, directing it toward the surface of the barrel or mold.

Heat Distribution: The ceramic material also allows for more even heat distribution compared to traditional metal heating elements. This ensures that the plastic material inside the barrel reaches the desired temperature consistently across the entire length of the barrel.

Thermal Efficiency: Ceramic band heaters are highly efficient because the ceramic material can withstand higher temperatures and has lower heat losses. The energy from the heater is focused on the barrel or mold surface, not wasted in surrounding areas.



3. Role in Plastic Injection Molding

In plastic injection molding, temperature control is vital to achieve consistent product quality. Here's how  230V ceramic band heaters contribute:

Precise Temperature Control: The heaters provide consistent and uniform heat, allowing for precise control over the melt temperature of the plastic material. This is important for producing high-quality molded parts that meet the exact specifications.

Reduced Heat Loss: The ceramic band heaters are highly insulated, which minimizes heat loss to the surroundings. This leads to more efficient heating and better energy utilization, which helps reduce operational costs.

Rapid Heat-Up: Ceramic band heaters can heat up quickly, which is ideal for injection molding applications where quick cycle times are necessary.



Even Temperature Distribution: By wrapping around the barrel or mold, ceramic heaters provide even heating around the circumference, ensuring the entire material is heated uniformly, which is crucial for melt consistency.

Durability: They are highly durable and can withstand the high temperatures and pressures found in injection molding environments. This longevity helps reduce downtime and maintenance costs.
