Jan 16, 2025
The KSD301 thermostats are commonly used in water dispensers for temperature regulation and safety. Here's a breakdown of how they work in this application:

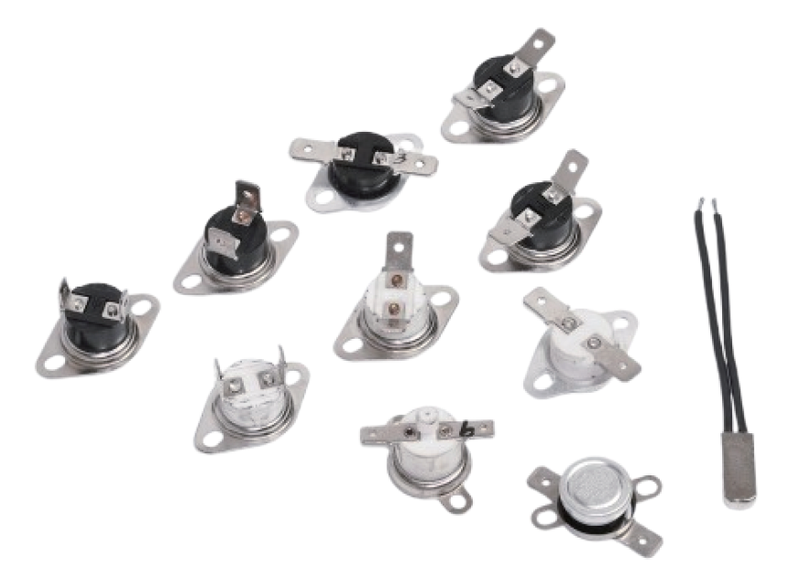

The KSD301 thermostat is a bimetallic, snap-action thermostat that operates as an automatic electrical switch. It opens or closes the circuit based on the temperature it detects, ensuring the water dispenser maintains the desired temperature or prevents overheating.
Temperature Monitoring: The thermostat is usually attached to the heating element or tank in the water dispenser. It continuously monitors the water temperature.
Heating Element Control:
When the water temperature drops below the set point (e.g., 85°C or 95°C, depending on the model), the thermostat closes the electrical circuit. This allows current to flow to the heating element, which heats the water.
When the water temperature reaches the set point, the thermostat's bimetallic strip snaps and opens the circuit, cutting power to the heating element to stop heating.
Safety Feature: If the water temperature exceeds the maximum safe limit (due to a malfunction), the thermostat will automatically disconnect the circuit to prevent overheating and potential damage.
High Precision: KSD301 thermostats ensure consistent temperature control for optimal water heating.
Snap-Action Mechanism: Provides quick switching to avoid delays in heating or cooling.
Wide Temperature Range: These thermostats can be customized for different temperature thresholds, accommodating both hot and warm water dispensers.
Durability: Designed to handle frequent cycles in water dispensers, ensuring long service life.
Energy Efficiency: By accurately controlling the heating process, the thermostat reduces unnecessary power consumption.
User Safety: Prevents overheating and minimizes risks of scalding.
Reliability: Maintains consistent water temperature for improved user experience.
