Sep 29, 2025

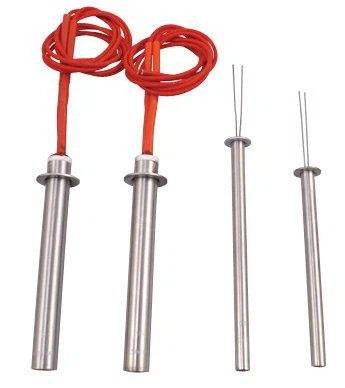

How to improve heat transfer of a cartridge heater?
Improving the heat transfer of a cartridge heater is crucial for maximizing its efficiency and lifespan. Here are several ways to optimize heat transfer:
Tight fit: Make sure the cartridge heater fits snugly in the mounting hole. A loose fit leads to air gaps, which can reduce heat transfer and cause the heater to overheat.
Proper hole size: The hole should be slightly smaller than the heater's diameter for a tight fit, ensuring maximum contact area.
Thermal paste: Apply a thin layer of high-quality thermal paste between the heater and the mounting surface. This helps fill micro-gaps and improves thermal conductivity, allowing more heat to transfer efficiently to the surrounding material.
Thermal grease: Similar to paste, thermal grease can be used to enhance heat transfer. Just ensure it's not over-applied.
Material choice: Choose a mounting material with high thermal conductivity, such as aluminum or copper. These materials will allow heat to be transferred away from the heater more efficiently.
Avoid insulating materials: Mounting the heater in materials with low thermal conductivity (like plastic or fiberglass) will hinder heat transfer.
Heater design: Ensure the cartridge heater has a design that maximizes surface contact with the surrounding material. A heater with a larger surface area or one that is designed to provide even heat distribution will improve overall heat transfer.
Insulate surrounding areas: Insulate the area around the heater to prevent heat loss. For example, if the heater is used in a metal block, insulating the external surfaces can help direct more heat into the workpiece.
Use thermal blankets: In some cases, thermal blankets or wraps can be added around the heater to reduce heat loss and improve efficiency.
