Quartz infrared heating tubes are widely used in applications where fast response, concentrated heat and efficient radiant heating are required. Unlike conventional heating systems that rely mainly on heating the surrounding air first, an infrared heating tube transfers energy directly to the surface of the material being heated. For equipment with limited installation space, however, a straight heating tube is not always the most practical option. A U-shaped quartz infrared heating tube provides an alternative. By forming the heating tube into a U-shaped structure, a longer heating section can be arranged within a more compact installation area. Both electrical connection points are also positioned at the same end of the heater, which can simplify installation and wiring in certain equipment designs. Depending on the application, the quartz tube, heating element, dimensions, power and terminal structure can all be customized.
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of u-shaped quartz infrared heating lamp in China, also supports custom service. Welcome to wholesale high quality u-shaped quartz infrared heating lamp at competitive price from our factory.

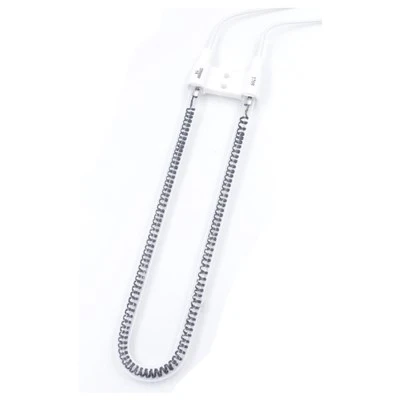

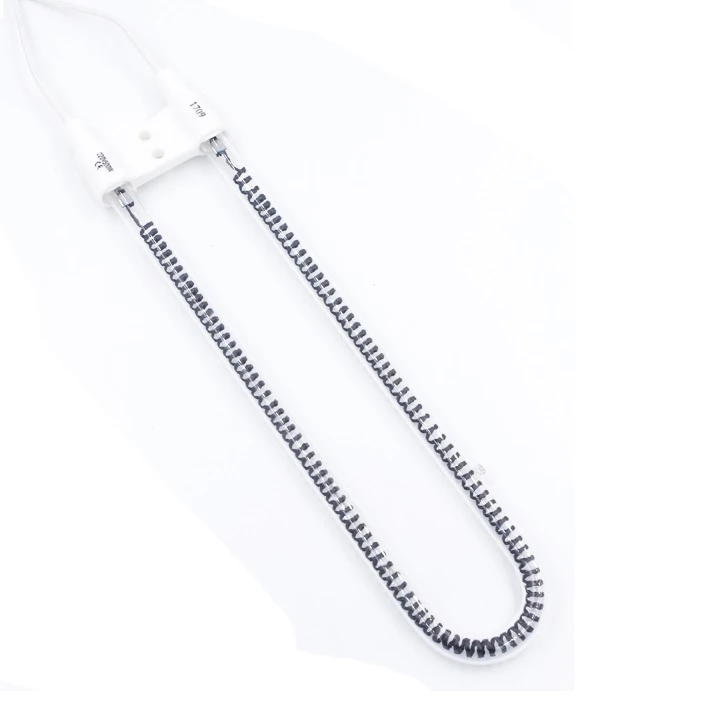

A U-shaped quartz infrared heating tube is an electric radiant heater made with a quartz tube formed into a U-shaped configuration.
The heating element is positioned inside the quartz tube. When electrical power is applied, the internal element generates heat and emits infrared radiation. The quartz material allows infrared energy to pass through and radiate toward the target surface.
The U-shaped design makes it possible to place two parallel heating sections within the same installation area.
This can be useful when:
The final construction can vary depending on the heating technology and application requirements.
| Parameter | Specification |
|---|---|
| Product Name | U-Shaped Quartz Infrared Heating Tube |
| Heating Type | Infrared Radiant Heating |
| Tube Material | Quartz Glass |
| Tube Shape | U-Shaped |
| Heating Element | Customized according to application requirements |
| Tube Diameter | Customized |
| Overall Length | Customized |
| Heating Length | Customized |
| Voltage | Customized |
| Power | Customized |
| Power Supply | AC or according to application requirements |
| Terminal Position | Both terminals located at the same end |
| Heating Method | Infrared Radiation |
| Installation Method | Customized according to equipment design |
| Application | Industrial and commercial heating equipment |
| Working Environment | To be confirmed according to application |
| Customization | Available |
The working principle of a quartz infrared heating tube is based on the conversion of electrical energy into thermal energy and infrared radiation.
When the heater is energized, the internal heating element begins to generate heat. As the temperature of the heating element increases, infrared energy is emitted.
The quartz tube serves as the outer heating structure and allows the infrared radiation to reach the target area.
Instead of relying entirely on convection to heat the surrounding air, infrared radiation can transfer energy directly to the surface of an object.
The basic heating process can be described as:
Electrical Energy → Heating Element → Thermal Energy → Infrared Radiation → Heated Object
The actual heating performance depends on several factors, including the heater power, heating element type, distance from the target, material being heated and operating environment.
The U-shaped configuration is one of the main features of this type of heating tube.
In many machines, the available installation length is limited. A straight quartz heating tube may require more space than the equipment can provide.
By bending the tube into a U-shape, the heating path can be arranged more compactly.

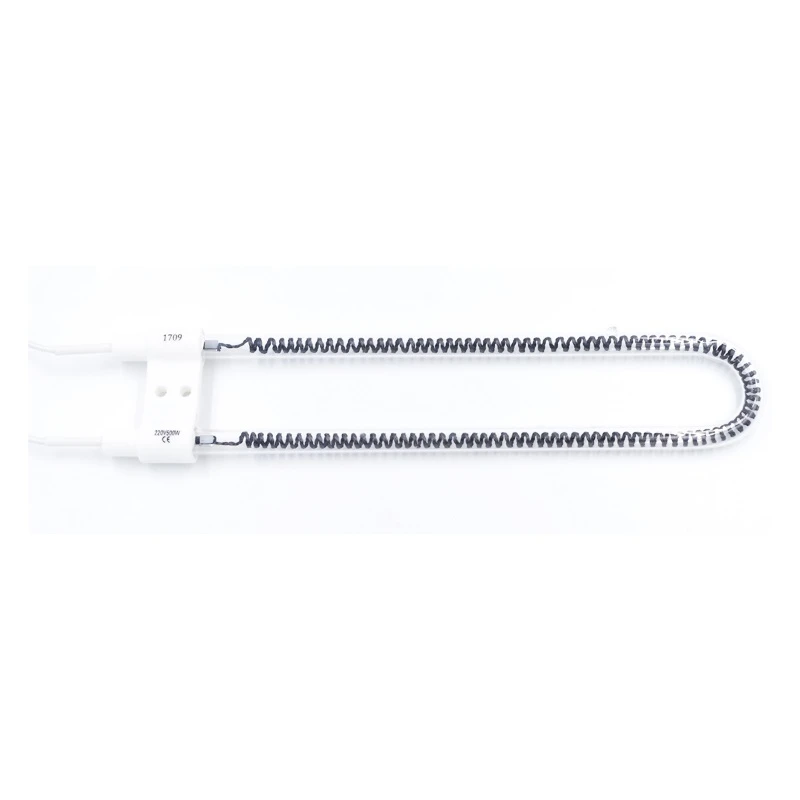

The U-shaped structure allows two heating sections to run parallel to each other.
This makes it possible to achieve a longer effective heating path without requiring the same overall installation length as a straight tube.
For compact machines, this can be an important design advantage.

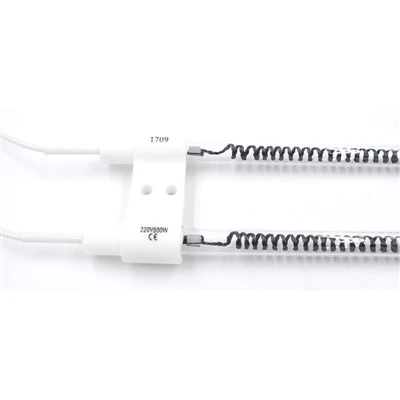

Another practical feature of the U-shaped design is that both electrical connection points can be located at the same end.
This can simplify wiring and installation, especially in equipment where access is available from only one side.
The actual terminal structure can be customized according to the customer's equipment.
Not all heating equipment uses a standard rectangular installation space.
Some machines require the heater to follow a specific mechanical structure or fit around other components.
A U-shaped quartz heating tube can provide more flexibility than a standard straight heating tube in these situations.
U-shaped quartz infrared heating tubes can be used in equipment where radiant heat needs to be delivered efficiently within a limited installation space.
Typical applications include:
Plastic Processing Equipment
Infrared heating can be used for heating, softening or processing plastic materials.
Depending on the equipment, the heating tube can be installed above, below or around the target material.
Thermoforming Equipment
In thermoforming applications, plastic sheets need to be heated before forming.
Quartz infrared heating tubes can be arranged in heating zones to provide radiant energy to the material.
Printing and Coating Equipment
Infrared heating is commonly used in processes involving drying or curing inks, coatings and surface treatments.
The heater configuration can be designed according to the width and layout of the equipment.
Food Processing Equipment
Certain food processing and warming equipment may use infrared heating for surface heating or controlled thermal processing.
The material and construction requirements should be evaluated according to the specific application.
Industrial Drying Equipment
Infrared heating can be used to remove moisture or accelerate the drying process for different materials.
Laboratory and Testing Equipment
Compact infrared heating elements may also be used in testing equipment or specialized heating systems.
Custom Industrial Machinery
For OEM equipment manufacturers, the U-shaped structure can be developed according to the available installation space and required heating area.
The main difference between a U-shaped tube and a straight tube is not simply the appearance.
The shape can affect installation, heating coverage and electrical connection layout.
| Feature | U-Shaped Quartz Heating Tube | Straight Quartz Heating Tube |
|---|---|---|
| Tube Shape | U-Shaped | Straight |
| Installation Space | More compact for longer heating paths | Requires more linear installation space |
| Terminal Position | Can be concentrated on one side | Usually located at opposite ends or according to design |
| Heating Layout | Two parallel heating sections | Single linear heating section |
| Customization | High | High |
| Suitable for Compact Equipment | Yes | Depends on installation space |
To evaluate a custom U-shaped quartz infrared heating tube, the following information is helpful:
1. Product drawing or reference photo
2. Overall dimensions
3. Tube diameter
4. Heating length
5. Voltage
6. Power
7. Application
8. Quantity
Based on the available information, the heater structure can be evaluated and customized for your equipment.
Send us your drawing or specifications to discuss a custom quartz infrared heating solution.
