Chrome Steel Sheath Ceramic Strip Heater

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of chrome steel sheath ceramic strip heater in China, also supports custom service. Welcome to wholesale high quality chrome steel sheath ceramic strip heater at competitive price from our factory.

Chrome Steel Sheath Ceramic Strip Heater

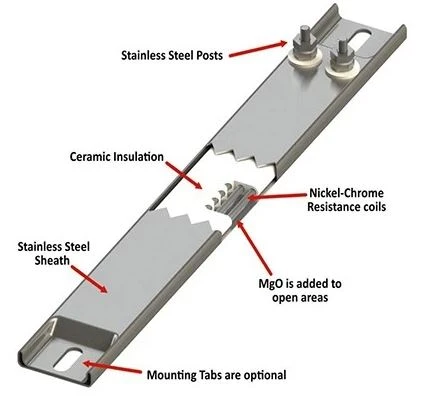

Chrome steel sheath ceramic strip heaters made by Jaye are able to withstand higher temperatures (usually limited to 40 to 45 watts per square inch). The heater consists of a stainless steel sheath that contains a high-temperature ceramic insulated nickel-chrome wire coil. Magnesium oxide (MgO) is used to fill any gap, thus providing the best possible heat transfer. The terminals are also made of stainless steel and anchor securely to prevent twisting under normal conditions. Several terminals are available including water resistance. They provide clean and reliable heat with a pod temperature of up to 649 ° C (1200 ° F) and a watt density of up to 40 watts per square inch. Due to the seamless stainless steel sheath, these ceramic insulated strip heaters are dimensionally stable in milled slots.

Features:

High heat transfer efficiency and fast heating

Ceramic construction for higher temperatures

Long serve life

Large selection of lengths, sizes and terminations

Low expansion characteristics

3-Phase available

Distributed wattage available

Capacity:

Width: 1.500 "0 .010"

Length: Custom

Thickness: 0.375 "± 0.005"

Watt tolerance: -10 to 5% at rated voltage

Applications:

Heating air

Injection and Extrusion dies

Food tables and platens
