Capillary Thermostat for Oven Temperature controller is an important part in home appliance, it exists almost everywhere,such as oven. When the temperature of the oven changes during heating, it can causes a physical phenomenon.Together the bellows expand or contract. Based on the principle of...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of capillary thermostat for oven in China, also supports custom service. Welcome to wholesale high quality capillary thermostat for oven at competitive price from our factory.

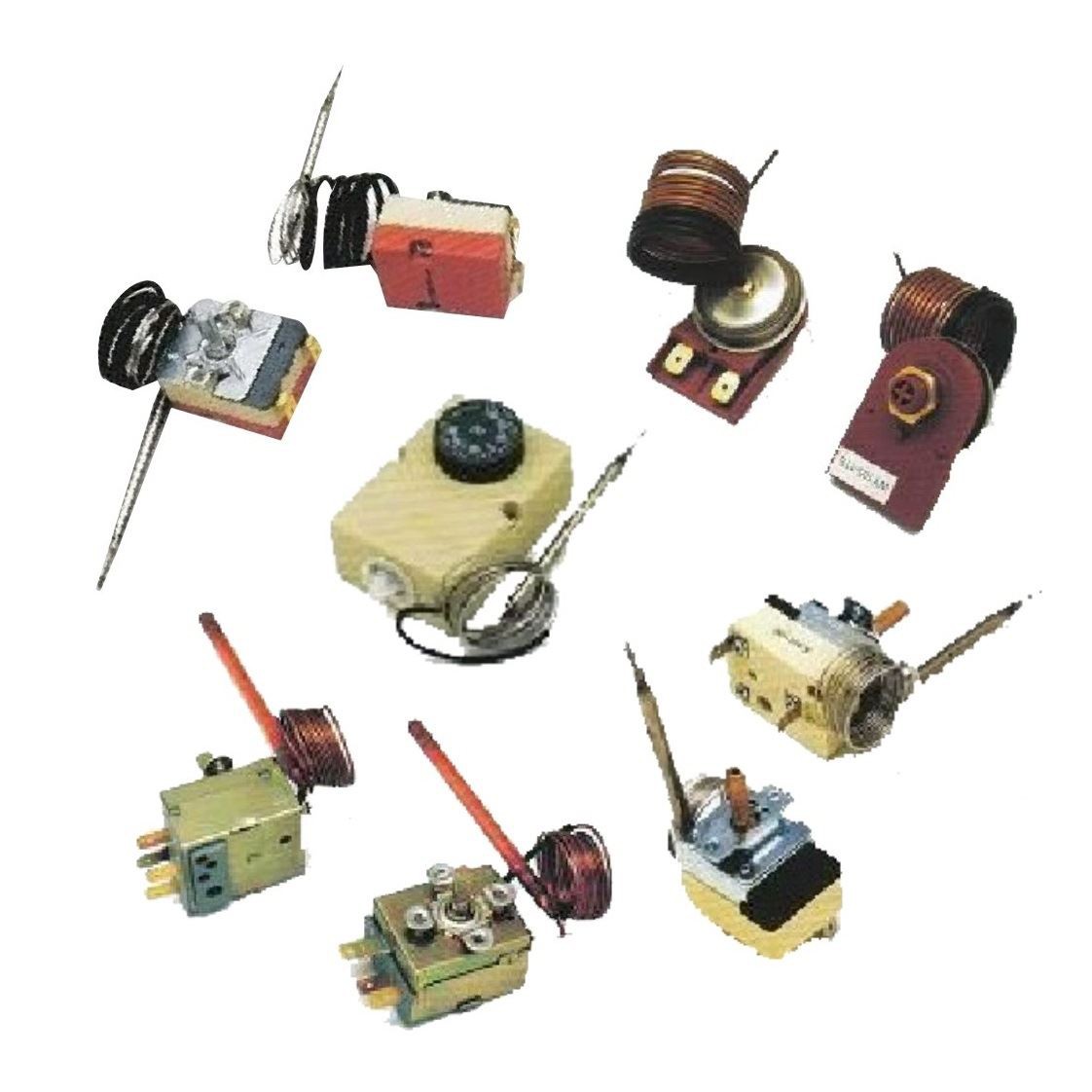

Capillary Thermostat for Oven
Temperature controller is an important part in home appliance, it exists almost everywhere, such as oven. When the temperature of the oven changes during heating, We need a thermostat to control the termperature, the temperature control switch that used on oven, we call it Capillary Thermostat, which is also called iquid-expandable thermostat. When the heating temeperature changes it can causes a physical phenomenon of Heat expansion and cold contraction.Together the bellows expand or contract. Based on the principle of lever, the switch is driven on and off to achieve the purpose of constant temperature. The liquid-expandable thermostat has the characteristics of accurate temperature control, stability and reliability, small temperature difference between on and off, large temperature control adjustment range, large overload current, et
Of course, It’s not only used in oven, Jaye Industry has made Capillary Thermostats for both home and industrial appliance, and we have exported it to many countries, such as India，South African, Korean and Japan etc. All are high quality and customized according to requirements. And here are some parameters for reference only.
Technical information of Capillary Thermostat for Oven:
Temperature range: -35 ~ 320℃
Application: Refrigerator, Electric Oven, Fryer, Electric Water Heater etc.
Rated voltage: 250V
Rated current: C-1 16A; C-2 4A
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ/ 500V
High pressure strength: AC 2000V 1mim 0.5mA
Maximum body temperature: 150℃
Maximum temperature of sensor: OFF + 30℃
Capillary length: 980mm
