Rare Earth Thick Film Heating Element Due to the higher and higher performance requirements of the heating element and the unique shape of the heating element itself, more and more applications begin to use this materials. The latest elements are not only thinner than in the past, can be...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rare earth thick film heating element in China, also supports custom service. Welcome to wholesale high quality rare earth thick film heating element at competitive price from our factory.

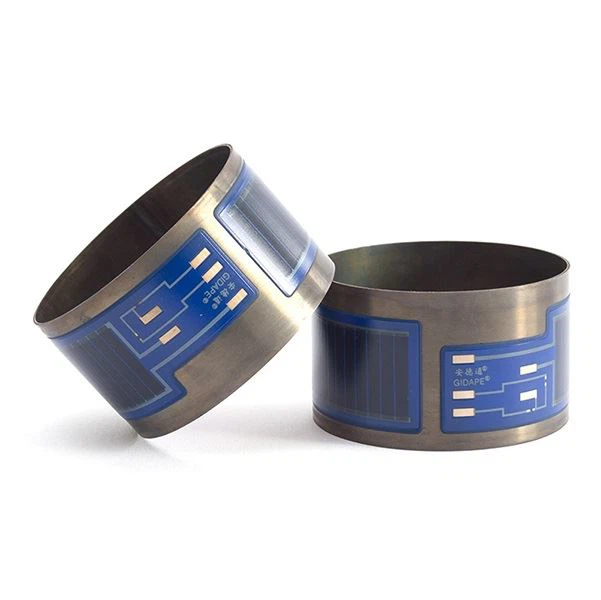

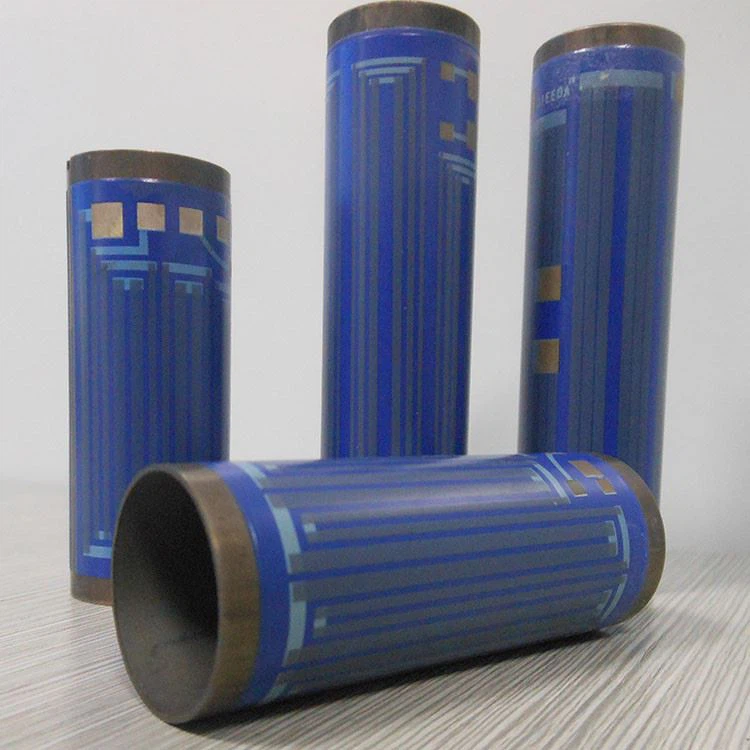

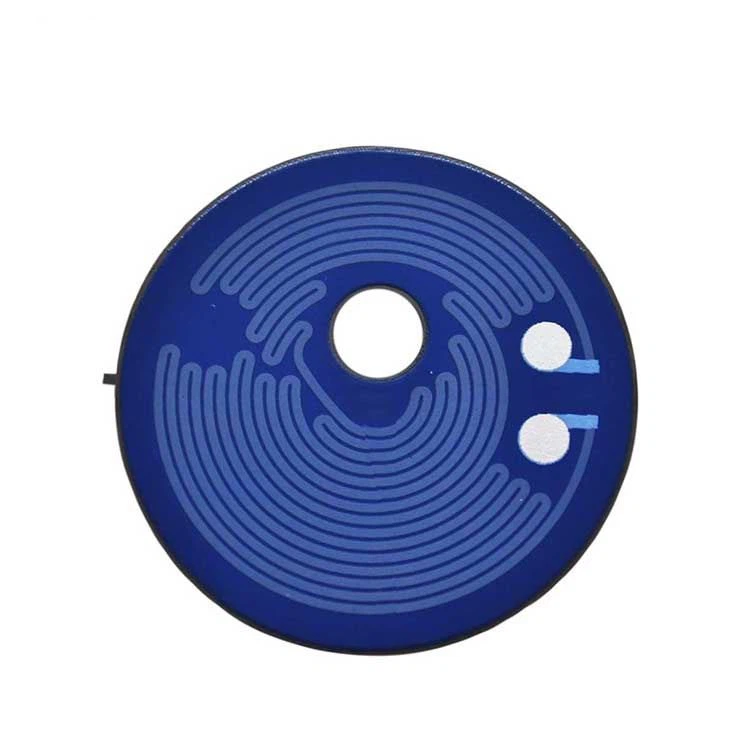

Rare Earth Thick Film Heating Element
Due to the higher and higher performance requirements of the heating element and the unique shape of the heating element itself, more and more applications begin to use this materials. The latest elements are not only thinner than in the past, can be designed in any shape, but also have higher reliability-this opens up new market areas for customers to improve their competitiveness. Combined with the matching material system, the technology can give the heating element excellent heating uniformity.
Jaye Industry's thick film heating element materials include conductive paste, resistance paste and insulating paste, etc., which can provide you with solutions that meet the above-mentioned harsh conditions. Its applicable scope covers polymers, glass, metals and various oxidized and nitrided ceramic substrates, so you have a high degree of flexibility when designing heating elements, and the working temperature range of heating elements is also very wide.
Product Description:
Voltage: 220v, 230v
Power: Customized
Material: Stainless steel 430
Ramp-Up Rate: 150℃/s
Dielectric Strength: 1,500V/5mA/60s
Leakage Current: ≤0.25mA
Thickness: 1mm, customized
Heat Density: >60W/cm²
Thermal Efficiency: ≥97%
Service Life:>10,000 hours
Application areas:

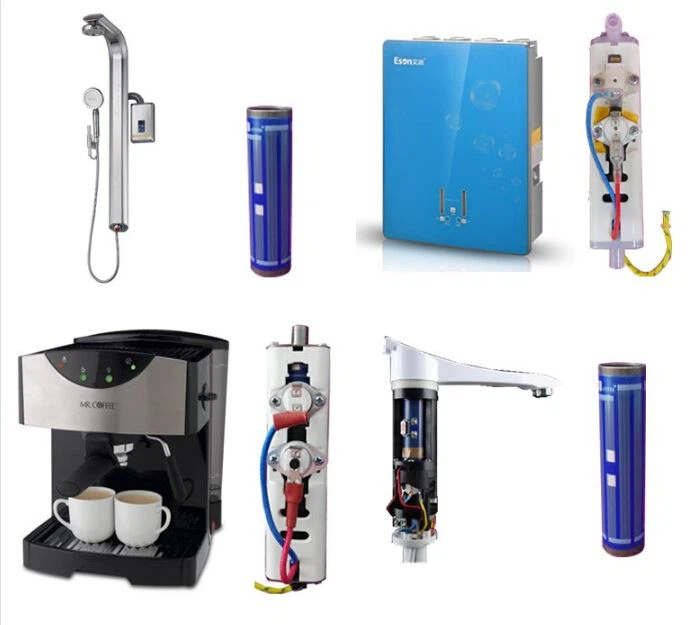

Industry: food service, white goods, thermal print head, e-cigarette
Automotive: seat heating elements, mirror/window defoggers, battery heating elements
Semiconductor: wafer burn-in, wafer processing
Aerospace: instruments, sensors
Medical: analysis equipment, sensor temperature optimization
In addition to the standard product portfolio, we can also provide customized solutions for special applications. We can directly test the adjusted solutions and continuously optimize them to achieve the best product quality. As an excellent partner, we will save you time and cost, and speed up your production process.
