Products Description Flange Tubular Immersion Heating Element For Boiler Pool are designed for heating water, oil, and other liquid applications in boilers, tanks, pools, and industrial equipment. The heaters use hairpin-bent tubular elements welded or brazed into flange structures, providing...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of flange tubular immersion heating element for boiler pool water heater in China, also supports custom service. Welcome to wholesale high quality flange tubular immersion heating element for boiler pool water heater at competitive price from our factory.

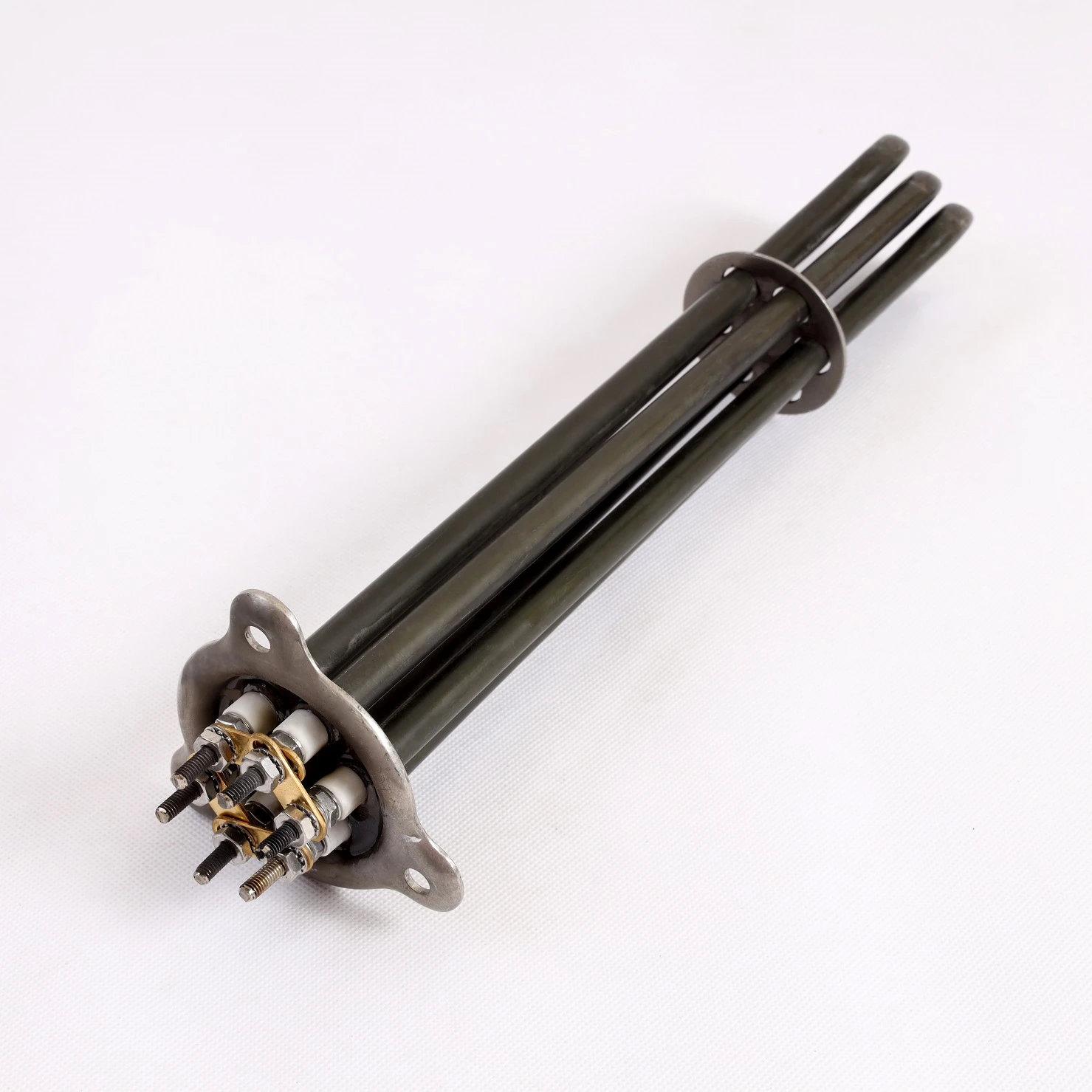

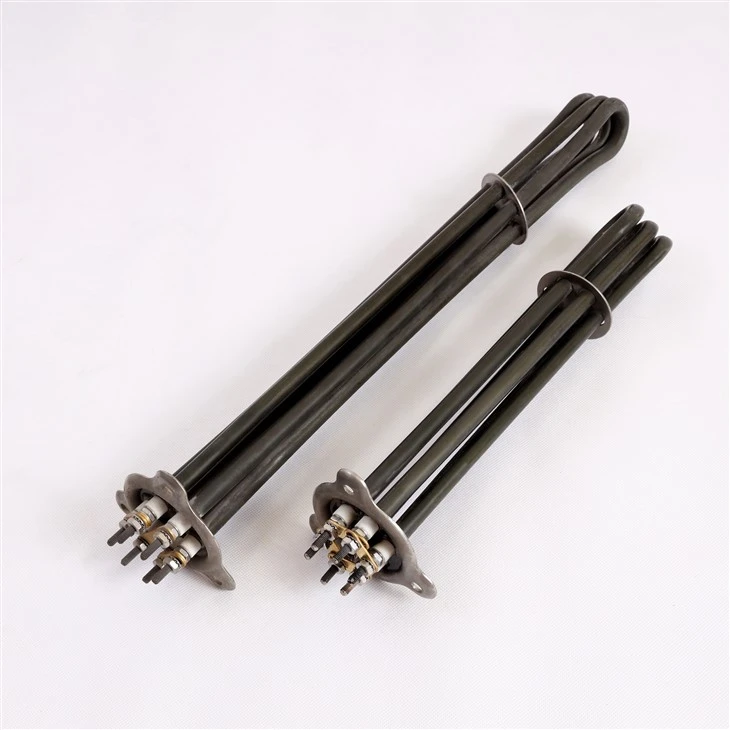

Flange Tubular Immersion Heating Element For Boiler Pool are designed for heating water, oil, and other liquid applications in boilers, tanks, pools, and industrial equipment. The heaters use hairpin-bent tubular elements welded or brazed into flange structures, providing reliable heat transfer and easy installation. Available with stainless steel, Incoloy, or other material options, they can be customized according to voltage, power, flange size, and operating conditions to meet different heating requirements. Common applications include electric boilers, water heaters, swimming pools, chemical tanks, and industrial heating systems.
| Features | Description |
|---|---|
| 1 | ANSI standard flanges are available from 3" to 14", with larger sizes up to 40" available. Power ratings range from 1kW to over 1MW, with custom designs to meet specific application requirements. |
| 2 | Standard 150lb flange ratings are available, with 300lb and 600lb options to suit different pressure and process conditions. |
| 3 | A variety of sheath materials, including copper, steel, stainless steel, and Incoloy®, are available to provide the right corrosion resistance and performance for different applications. |
| 4 | Element spacers and supports are designed to maintain proper element positioning, improving heater durability and overall performance. |
| 5 | Recompacted element bends help maintain insulation reliability, extending service life and ensuring stable operation. |
| Applications | Description |
|---|---|
| Process Air & Gas Heating | Used for heating air and gases in industrial processes requiring controlled temperature. |
| Chemical Reactor Heating | Applied in chemical processing equipment to provide stable and efficient heating. |
| Boiler & Water Heating | Suitable for boilers, water tanks, and liquid heating systems. |
| Rinse Tank Heating | Designed for maintaining the required temperature in rinse and cleaning tanks. |
| Parts Cleaning Solutions | Used in industrial cleaning systems to heat cleaning fluids for effective parts washing. |
| Lubricant & Fuel Oil Heating | Helps maintain the proper temperature and viscosity of lubricant oils and fuel oils. |
If you would like to order immersion-type flanged heating elements, please provide us with the following:
1. Heating element & flange dimensions
2. Voltage and power rating
3. Order quantity
Drawings or actual photos will help us better understand your needs.
