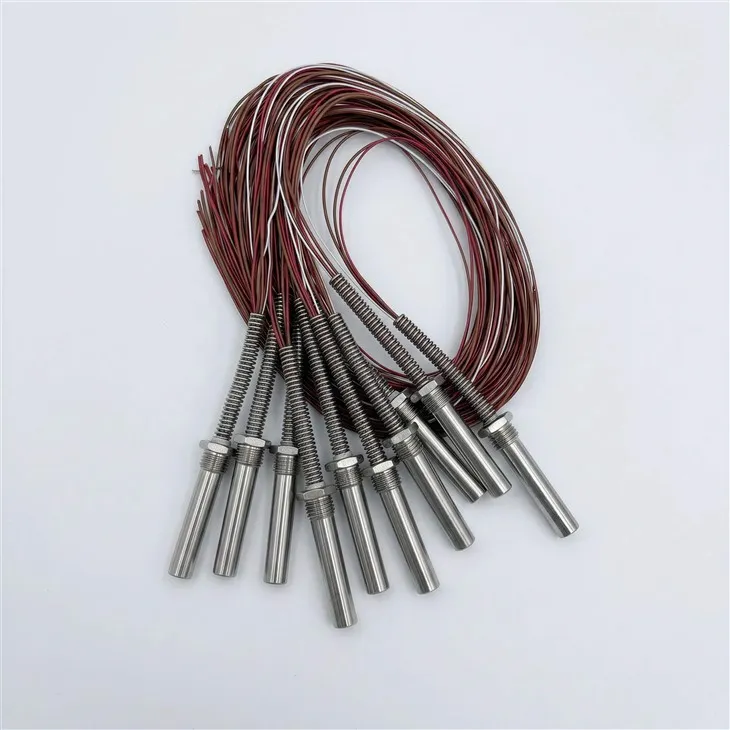

Products Description Heating Rod Cartridge Heaters with J Type Thermocouple for Water Heatibng are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter. Cartridge heaters...
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of heating rod cartridge heaters with j type thermocouple for water heatibng in China, also supports custom service. Welcome to wholesale high quality heating rod cartridge heaters with j type thermocouple for water heatibng at competitive price from our factory.
Heating Rod Cartridge Heaters with J Type Thermocouple for Water Heatibng are most frequently used for heating metal parts by insertion into drilled holes.
For easy installation, the heaters are made slightly undersize relative to their nominal diameter.
Cartridge heaters can be easily specifed to meet the demands of special applications.
Simply select from a variety of standard options and features to customize the heater to your specifc needs.
For customized engineering or alternative options, contact vinson's sales representative for fast turnaround on your specifcations.
|
Type of heater |
Cartridge heaters |
|
Resistance heating wire |
NiCr 80/20 wire |
|
sheath |
stainless steel 304,321,316, Incoloy 800, Incoloy 840 |
|
Maximum temperature |
800 degree Celsius |
|
Wattage Tolerance |
+5%, -10% |
|
Resistance tolerance |
+10%, -5% |
|
Voltages available |
380V,240V, 220V,110V,36V,24V or 12V |
|
Length tolerance |
±1 mm |
|
Diameter tolerance |
-0.02mm |
|
Standard Cold Zone |
5-10mm |
|
Insulation resistance (cold) |
≥ 500 MΩ |
|
Maximum leakage current (cold) |
≤ 0.5 mA |
• Semiconductor chamber heating
• Semiconductor wire and die bonding
• Freeze protection and deicing of equipment in cold climates or applications
• Humidity control
• Patient comfort heating used in medical devices
• Mold die and platen heating
• Seal bars used in packaging equipment
• Test sample heating in gas chromatography equipment

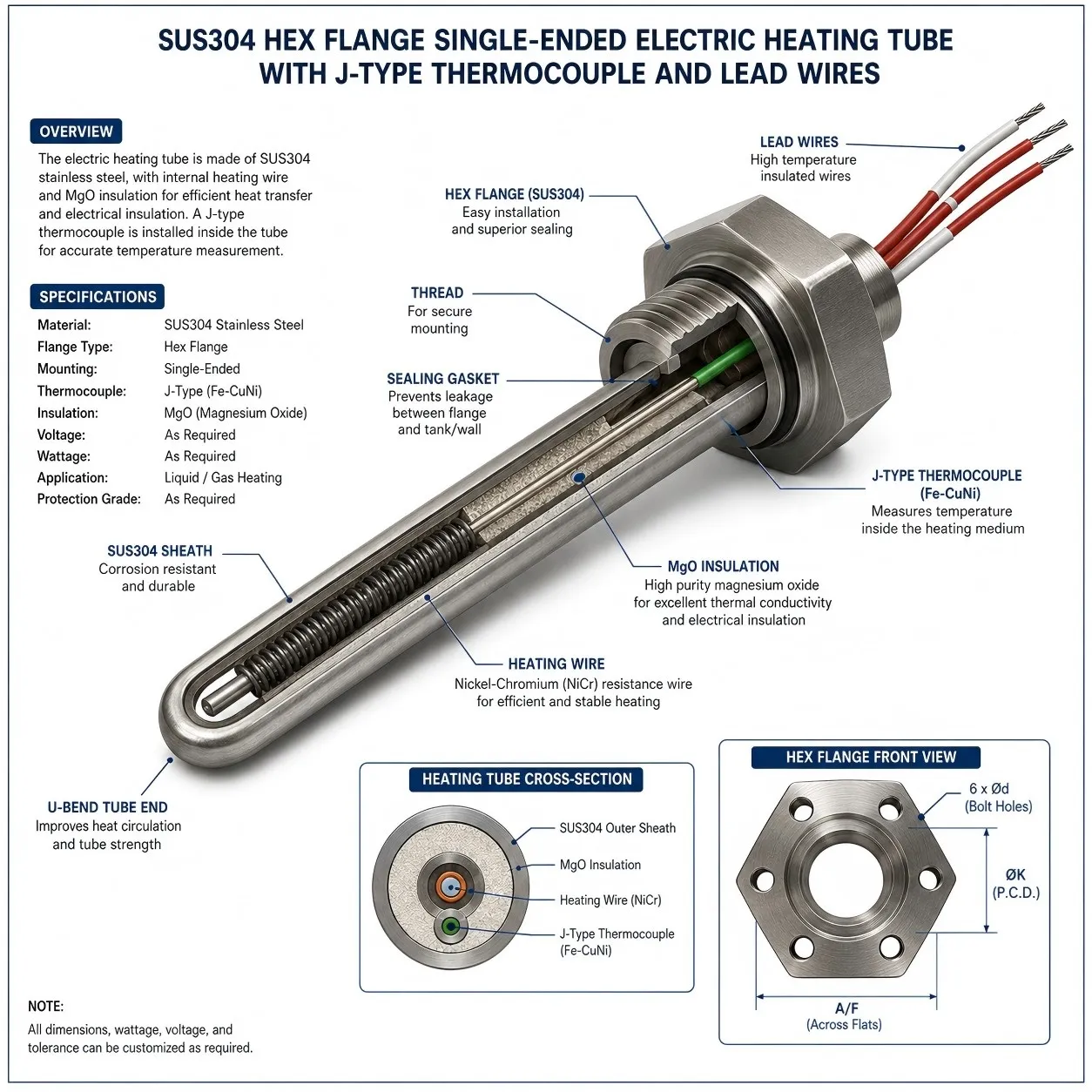

Yes, this flange cartridge heater with J-type thermocouple can be supplied with an integrated temperature sensor.
The built-in thermocouple allows accurate temperature measurement and stable control, making it suitable for precision industrial heating applications.
The heating sheath is made of SUS304 stainless steel, which offers strong corrosion resistance, high durability, and stable performance in industrial environments. SUS304 is widely used in cartridge heaters for machinery, molds, and fluid heating systems.
The typical production lead time for custom flange cartridge heaters is around 25 working days after order confirmation and payment.
The exact delivery time may vary depending on order quantity, customization requirements, and production schedule.
Yes, we provide global shipping for flange cartridge heaters. Shipping costs depend on order quantity, total weight, destination country, and delivery method (express, air freight, or sea freight).
We can also provide packaging dimensions and freight estimates upon request.
