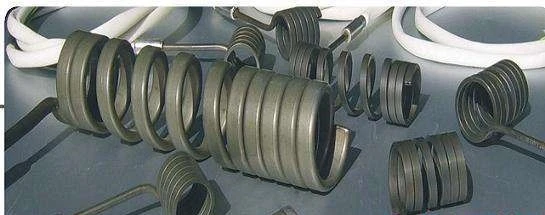

Hot runner coil heaters are used to heat and maintain the temperature of hot runner nozzles in plastic injection molding systems. They provide localized heating around the nozzle, helping keep molten plastic at the required processing temperature during injection.
Unlike conventional heaters that require a large installation area, coil heaters can be manufactured in a compact cylindrical shape to fit closely around a hot runner nozzle. This allows heat to be transferred directly to the required area.
For injection molding applications, the heater must be selected according to the nozzle dimensions, required temperature, voltage, power, and thermocouple configuration.
The main function of a hot runner coil heater is to provide controlled heat to the hot runner nozzle and maintain the temperature of the molten plastic.
During injection molding, plastic must remain within an appropriate temperature range as it moves through the hot runner system. If the temperature is too low, the material may become too viscous or solidify prematurely. If the temperature is too high, the plastic may degrade or the molding process may become unstable.
A properly designed coil heater helps compensate for heat loss and maintain the required operating temperature around the nozzle.
Hot runner systems have limited installation space, so the heater needs to provide sufficient heating power without occupying excessive space.
Coil heaters offer several useful characteristics:
These characteristics make coil heaters suitable for hot runner nozzles, manifolds, and other compact heating applications where space and heat transfer are important.
Both coil heaters and band heaters can be used for heating cylindrical components, but their structures and applications are different.
| Feature | Hot Runner Coil Heater | Band Heater |
|---|
| Shape | Flexible or cylindrical coil structure | Ring or band structure |
| Installation | Closely fitted around nozzle or cylindrical component | Mounted around the outside surface |
| Heating area | More localized | Generally covers a larger surface area |
| Space requirement | Suitable for compact areas | Requires sufficient installation space |
| Typical application | Hot runner nozzles, compact heating areas | Injection barrels, pipes, nozzles, cylinders |
The appropriate heater depends on the available space, required heating area, temperature, and mechanical design of the equipment.
Hot runner coil heaters are mainly used in plastic injection molding equipment, particularly where localized heating is required.
Typical applications include:
Stable heating around the hot runner nozzle helps maintain consistent plastic flow and can contribute to more stable molding conditions.
A hot runner coil heater is a compact resistance heater designed to provide localized heating around hot runner nozzles and other cylindrical components in injection molding systems.
The inner diameter and heating length should match the nozzle or component being heated. Voltage, wattage, operating temperature, thermocouple configuration, and lead position should also be confirmed.
Yes. Depending on the design, a coil heater can be manufactured with a thermocouple or thermocouple hole for temperature measurement and control.
