How Finned X Type Aluminium Heater Works For Convection Heaters?

May 15, 2025

Structure and Design

Finned X-Type Aluminum Heaters are a specialized form of convection heating element that consist of the following components:

Heating Core: Usually a high-resistance wire or tubular heating element made from materials like nichrome or stainless steel, which heats up when electricity passes through it.

X-Type Aluminum Fins: These are extruded aluminum fins arranged in an X-shaped cross-section, tightly attached to the heating element. Aluminum is chosen because it offers excellent thermal conductivity, light weight, and corrosion resistance.

Mounting Assembly: Some versions may include mounting brackets, terminals for electrical connections, and thermal sensors or limiters for safety.

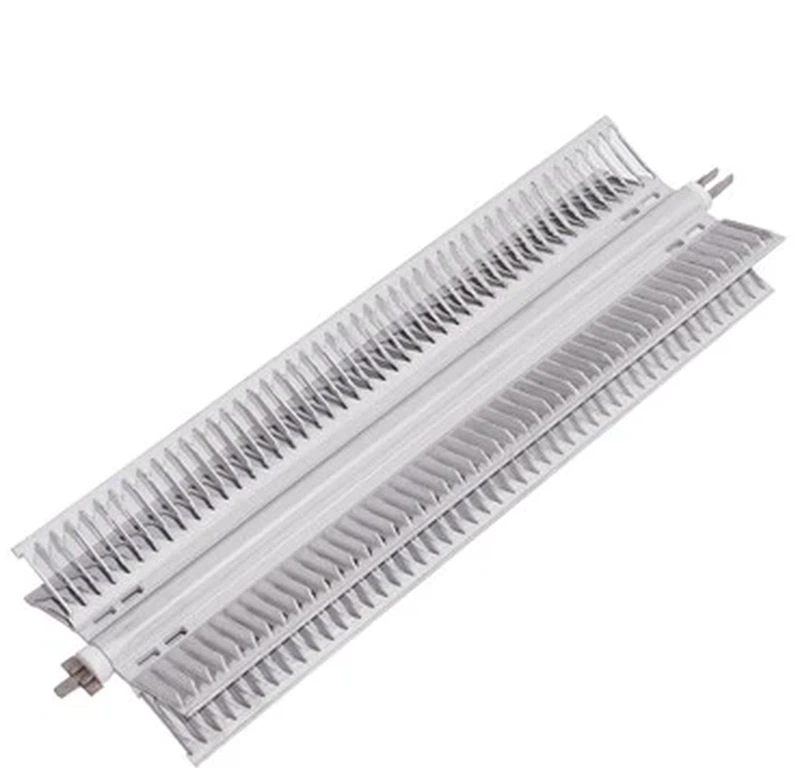

Aluminum Finned Heaters For HVAC Systems

How It Works in Convection Heaters

Electrical Heating: When the power is turned on, the internal heating core starts generating heat through electrical resistance.

Heat Transfer to Fins: This heat is quickly transferred to the X-type aluminum fins due to direct contact and aluminum's high thermal conductivity.

Surface Area Amplification: The unique X-shaped fin geometry maximizes surface area without taking up much space, allowing the element to release more heat into the surrounding air.

Air Movement (Convection):

In natural convection, warm air around the fins rises, and cooler air moves in to replace it, creating a cycle that distributes heat throughout the space.

In forced convection systems, fans blow air over the fins, speeding up the heat transfer and ensuring more uniform temperature control.

Uniform and Efficient Heating: The X-type fins ensure even heating across the element, reducing hotspots and promoting efficient energy use.
