How Flange Cartridge Heater With Metal Braided Wire Work?

A flange cartridge heater with metal braided wire is an industrial electric heating device designed for high-temperature, high-vibration, and harsh environments. It combines a cartridge heater core, a mounting flange, and a protective braided lead wire.

Here's how it works:

Basic Working Principle (Cartridge Heater)

At its core, it works on resistive (Joule) heating:

Inside the heater is a nichrome resistance wire.

When electrical current passes through the wire, it resists the flow.

This resistance converts electrical energy into heat.

The heat transfers outward through:

Magnesium oxide (MgO) insulation (for heat transfer + electrical insulation)

Stainless steel sheath

Into the object being heated (metal block, mold, die, platen, etc.)

So the basic heating mechanism = electrical resistance → heat generation.

What the Flange Does

The flange is a mounting plate attached near one end of the cartridge heater.

Its purpose:

Prevents the heater from sliding too deep into a hole

1. Allows bolting to machinery
2. Provides mechanical stability
3. Ensures correct positioning
4. Helps with heat zone control

This is common in:

• Plastic injection molds
• Extruders
• Die casting equipment
• Packaging machinery

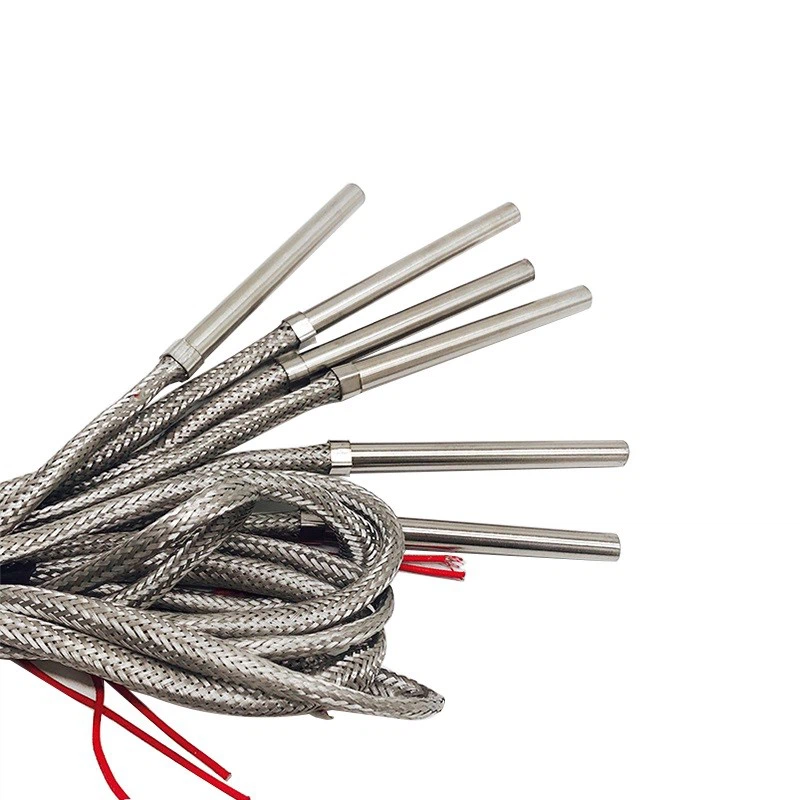

What the Metal Braided Wire Does

The metal braided lead wire protects the electrical connection wires that power the heater.

Inside the braid:

Two insulated high-temperature lead wires

Often fiberglass or ceramic insulated

Outside:

Stainless steel braided sleeve

Why metal braided?

It provides:

• Mechanical protection
• Abrasion resistance
• Protection from sharp edges
• Protection in high vibration environments
• EMI shielding (in some cases)
• Higher temperature durability

Without it, standard wire insulation could melt, crack, or wear out.

Step-by-Step Operation

1. Power supply (AC or DC) connects to heater leads.
2. Current flows through nichrome resistance coil.
3. Coil heats up rapidly (can reach 100°C–800°C+ depending on design).
4. Heat conducts outward to the heater sheath.
5. Heat transfers to the surrounding metal.
6. Flange holds heater securely in position.
7. Braided wire protects electrical connections during operation.

Why Use a Flange Cartridge Heater?

Compared to standard cartridge heaters:

Feature	Standard	Flange Type
Secure Mounting	No	Yes
Position Control	Limited	Precise
Vibration Resistance	Moderate	High
Heavy-duty Applications	Limited	Excellent

Typical Applications

Plastic molding barrels

Packaging seal bars

Industrial ovens

Hot plates

Hydraulic presses

3D printing industrial heads

Temperature & Power Range

Typical specs:

Voltage: 120V – 480V

Power: 100W – 3000W+

Temperature capability: up to 800°C (depends on sheath material)

Simple Summary

A flange cartridge heater with metal braided wire:

Uses electrical resistance to generate heat

Transfers heat through a metal sheath into machinery

Uses a flange to secure it in place

Uses metal braided wire to protect the power leads

It is built for high heat, high vibration, and industrial durability.
