How PTC Air Heaters Work in Neonatal Incubators?

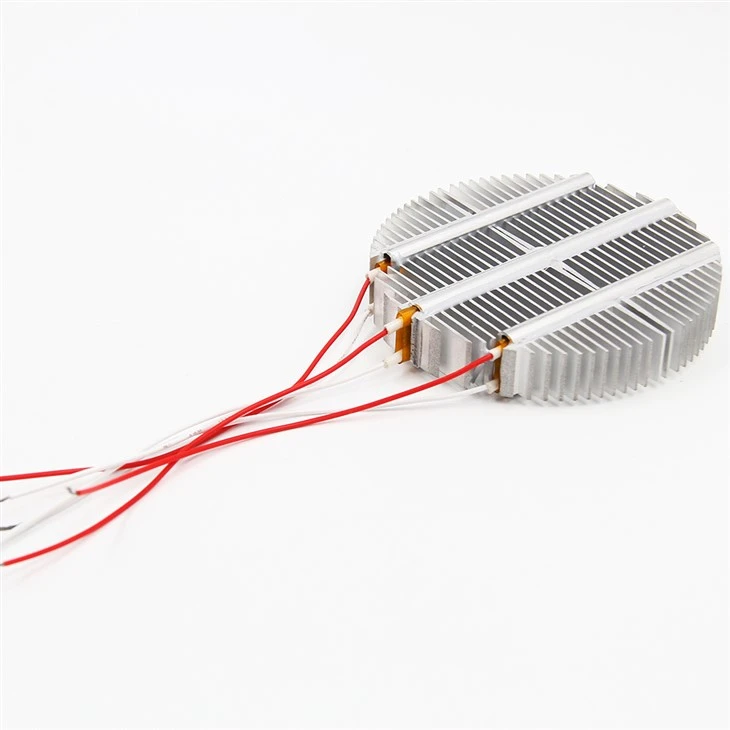

A PTC air heater is an electric heating element that uses Positive Temperature Coefficient (PTC) thermistor technology to generate heat. Its electrical resistance increases as its temperature rises, helping it regulate its own heating output.



In neonatal incubators, PTC air heaters can be used as a heat source to warm circulating air and help maintain a stable thermal environment for newborn babies, especially premature or low-birth-weight infants who have difficulty regulating their body temperature.

Compared with conventional resistance heating elements, PTC air heaters offer self-regulating heating characteristics and can help reduce the risk of excessive element temperatures. However, they still require a properly designed temperature-control system and independent safety protection.

How Do PTC Air Heaters Work in Neonatal Incubators?

PTC air heaters convert electrical energy into heat and transfer that heat to the air circulating inside a neonatal incubator. Their operation typically involves the following steps.

Electrical Energy Generates Heat

When power is supplied, the PTC ceramic heating element heats up. Its temperature-dependent electrical resistance helps determine the amount of current it draws.

Air Passes Through the Heating Assembly

A fan or other engineered airflow mechanism moves air across the PTC heating element and its heat-transfer structure. The air absorbs heat as it passes through the assembly.

Warm Air Circulates Inside the Incubator

The warmed air is distributed throughout the incubator according to its airflow design. This helps create a controlled thermal environment around the infant.

Temperature Sensors Monitor Conditions

Temperature sensors measure the air temperature at designated locations. A controller adjusts the heater's power or switches it on and off to maintain the target temperature.

Safety Systems Provide Additional Protection

Independent over-temperature protection, airflow monitoring where appropriate, and fault detection can help reduce risks associated with overheating, blocked airflow, or control-system failure.

Because neonatal incubators are medical devices, the complete heating system must be validated for temperature accuracy, uniformity, reliability, and patient safety. The PTC element alone cannot guarantee a safe incubator environment.



Why Choose PTC Air Heaters for Neonatal Incubators?

PTC air heaters can offer several advantages when properly engineered for neonatal incubator applications.

1. Self-regulating heating characteristics: Increasing resistance as the element heats can help limit heating output under specified operating conditions.
2. Efficient heat transfer: A suitable finned or other high-surface-area structure can transfer heat to moving air efficiently.
3. Compact design: PTC heating assemblies can be integrated into appropriately designed air-handling compartments.
4. Rapid air heating: With suitable power, airflow, and thermal design, the heater can help the incubator reach its target operating temperature.
5. Compatibility with electronic control: PTC heaters can be integrated with temperature sensors and control systems to support precise environmental regulation.
6. Potentially reduced element overheating risk: The PTC effect can limit element temperature under defined conditions, but it does not replace independent safety controls.

The actual performance depends on the PTC material, rated voltage, heating power, airflow, ambient conditions, and overall incubator design.

Key Technical Considerations for PTC Air Heaters

Selecting a PTC air heater for a neonatal incubator requires careful attention to thermal performance and medical-device safety.

Parameter	Key Considerations
Rated voltage	Must match the incubator's electrical system
Heating power	Must meet the required heat output under specified airflow conditions
Operating temperature	Must suit the heater assembly and incubator design
Airflow rate	Must provide adequate heat transfer without creating unsafe temperature variations
Temperature control	Requires compatible sensors and a suitable electronic controller
Over-temperature protection	Should include independent protection appropriate to the system design
Insulation and electrical safety	Must meet applicable medical-device requirements
Materials and construction	Should be suitable for the intended environment, cleaning process, and service life
Reliability	Requires evaluation under expected operating conditions and foreseeable faults

These parameters should be determined from the incubator manufacturer's requirements rather than selected solely on the basis of heater wattage.

PTC Air Heater vs. Conventional Resistance Air Heater

Feature	PTC Air Heater	Conventional Resistance Air Heater
Heating technology	PTC ceramic element	Resistance wire or another resistive element
Electrical resistance	Increases as element temperature rises	Depends on the material and its temperature characteristics
Heating output	Can decrease as the PTC element heats	Usually requires external control to regulate output
Temperature regulation	Self-regulating element characteristics plus system controls	Primarily controlled by the overall control system
System integration	Requires appropriate airflow and temperature controls	Requires appropriate airflow and temperature controls
Application suitability	Depends on thermal performance and medical-device validation	Depends on thermal performance and medical-device validation

Neither technology is automatically safer or more accurate in every application. The complete heater assembly and its control and protection systems determine suitability.

FAQs

Q1: What is the main function of a PTC air heater in a neonatal incubator?

Its main function is to heat circulating air to support the incubator's controlled thermal environment. The incubator's sensors and control system regulate the operating temperature.

Q2: Can a PTC air heater prevent overheating in a neonatal incubator?

The PTC effect can help limit the heating element's temperature under specified conditions. However, it cannot guarantee that the air temperature or infant environment will remain safe under every fault condition. Independent over-temperature protection and system-level safety validation are still necessary.

Q3: How do you choose the right PTC air heater for a neonatal incubator?

The selection depends on rated voltage, required heating capacity, airflow, temperature distribution, physical dimensions, control-system compatibility, and applicable medical-device safety requirements. The complete assembly must be tested under normal operating conditions and foreseeable faults.
