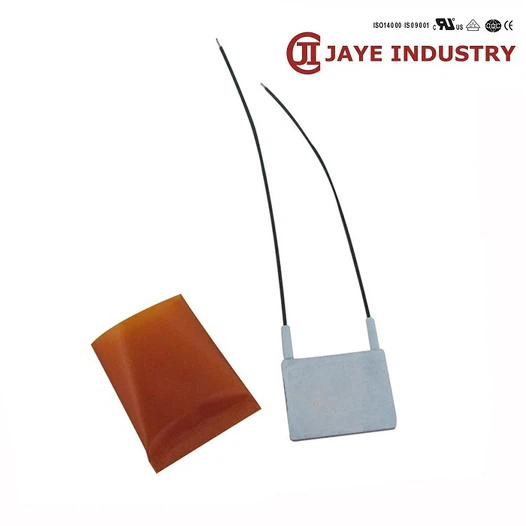

How to use Jaye PTC Film and Strip Heater in Battery Warming

1.Determine the Placement Location:

Identify areas within the battery pack that require heating. Jaye PTC heaters can be installed around individual battery cells or modules, or placed within battery housings to provide even heat distribution.

Select locations that maximize heat transfer to critical areas while avoiding direct contact with any heat-sensitive components.



2.Choose the Appropriate Heater Dimensions:

Select a PTC film or strip heater that fits within the designated battery space. Jaye's PTC heaters come in various sizes and thicknesses, offering flexibility to suit different battery pack designs.

The heater should be thin and flexible enough to fit snugly without affecting the overall battery dimensions or weight.



3.Configure Voltage and Power Requirements:

Use the heater's recommended operating voltage, typically 12V, 24V, or 48V, based on the battery's specifications and the desired heat output.

Jaye's PTC heaters are designed for low power consumption, so match the power density (usually 0.5–5 W/cm²) to provide adequate heating without excessive energy use.



4.Ensure Proper Insulation:

Use appropriate insulation around the PTC heater and battery cells to minimize heat loss. Insulation also prevents unintentional heat transfer to other components, improving energy efficiency.

Jaye PTC heaters may come with pre-applied adhesive or protective coatings, which simplify installation and add an insulating layer.

5.Connect Safely and Securely:

Use secure and stable connectors that fit the specific voltage requirements of the heater and ensure they are rated for the current draw.

Double-check all connections, as a poor connection can lead to heat loss, potential malfunctions, or even a safety hazard.



6.Monitor Temperature:

Although PTC heaters are self-regulating, installing temperature sensors or integrating the heater with the battery management system (BMS) allows real-time monitoring and further temperature control.

This ensures the system can respond to temperature changes quickly, further enhancing safety and efficiency.



7.Test and Verify Performance:

Once installed, test the heater to verify that it operates within the specified temperature range and provides even heating. Monitor for a stable heat output and ensure no overheating occurs.

Check for uniform heat distribution to confirm that all battery cells receive adequate warming, which helps maintain optimal performance.



8.Maintenance and Inspection:

Periodically inspect the heater's condition, especially if used in demanding conditions. Ensure all connections remain intact, insulation remains effective, and the heater itself remains free of damage.

Regular inspection prolongs the heater's lifespan and ensures continued safe operation.

Using Jaye PTC film and strip heaters as described will enhance battery performance, particularly in cold climates, by maintaining the battery at its ideal temperature range. This setup improves the battery's efficiency, reduces cold-start issues, and extends overall battery life in applications like EVs, energy storage, and other battery-dependent systems.
