A quartz halogen heating lamp consists of several key components, each of which plays a crucial role in its operation. These components work together to generate and emit infrared heat.

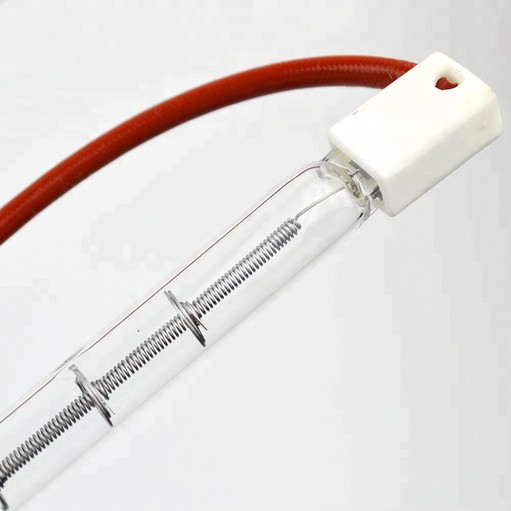

Here are the main components of a quartz halogen heating lamp:
1. Quartz Envelope (Tube): The outer shell of the lamp is made of quartz glass, which is transparent to infrared radiation. Quartz is used because it can withstand very high temperatures without melting or shattering. The envelope encloses the other components of the lamp and allows the emitted heat to pass through.
2. Tungsten Filament: Inside the quartz envelope, there is a tungsten filament, which serves as the heating element. When an electrical current passes through the tungsten filament, it becomes extremely hot and emits intense infrared radiation. Tungsten is chosen for its high melting point and durability, which allows it to operate at very high temperatures.
3. Halogen Gas: The quartz envelope is filled with a small amount of halogen gas, typically iodine or bromine. The presence of the halogen gas is a critical feature of quartz halogen lamps. It plays a vital role in the lamp's operation by preventing the blackening of the quartz envelope and extending the lamp's lifespan. The halogen gas reacts with tungsten vapor that evaporates from the filament, forming tungsten halide compounds. These compounds are carried back to the filament by convection and prevent the deposition of tungsten on the inner surface of the quartz envelope.
4. Reflector (Optional): Some quartz halogen lamps have a built-in reflector, which is often made of aluminum. The reflector is designed to focus and direct the emitted heat in a specific direction, making the lamp more efficient for heating applications by concentrating the heat where it's needed.
5. Base: The base of the lamp contains the electrical connections that allow it to be connected to a power source. Depending on the type of lamp and its intended use, the base may be designed for screw-in, plug-in, or other types of connections.
6. Support Structure: Inside the lamp, there may be a support structure that holds the filament in place and maintains the proper positioning of the various components.
These components work together to create the intense and focused heat output characteristic of quartz halogen heating lamps. They are commonly used in a variety of heating applications due to their ability to rapidly generate and emit infrared heat.
