Which type of thermostat can be selected for silicone heating pad?

Which type of thermostat can be selected for silicone heating pad?

Silicone heating pad is a sheet that generates heat when it is energized, with a standard thickness of 1.8mm. The heating element is made of nickel-chromium wire or etched into a certain shape with nickel-chromium foil with a thickness of 0.05 mm～0.10mm. The two breads are made of heat-conducting insulating materials and are formed by high-temperature molding and aging heat treatment, so they have high reliability. It is incomparable to ordinary electric heating films printed on insulating materials with graphite paste, resistance paste and other pastes.

If the heating pad is controlled within a certain temperature range, it is necessary to install a matching thermostat.We have a variety of different types of thermostatfor you to choose from, please see the introduction below for details.

Types of silicone heating pad thermostat :

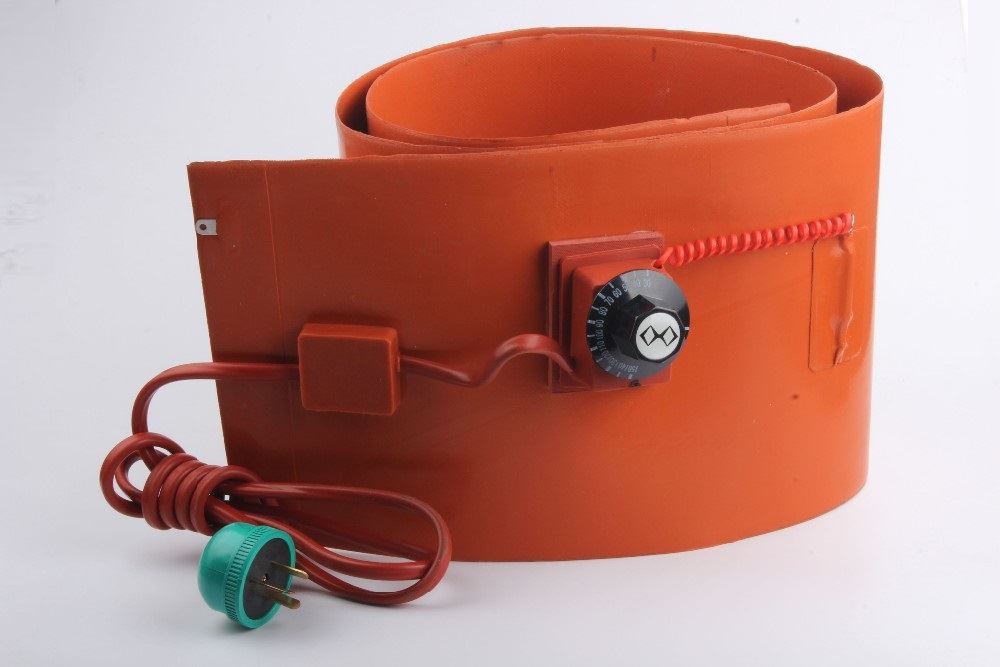

1.Knob-type temperature switch, the commonly used temperature range is 0-120 degrees, 30-150 degrees, 50-200 degrees, the temperature can be adjusted, and the heating plate can be installed at any position, or two wires can be connected to the side. The temperature control accuracy is average. It is suitable for industries such as heat preservation and antifreeze that are not very precise in temperature control.

2.Built-in constant temperature temperature switch, generally 5 degrees is an interval, you can choose the constant temperature arbitrarily, such as 30 degrees, 35 degrees, 40 degrees, 45 degrees, etc., the temperature cannot be adjusted, the heating plate can be installed at any position, and it cannot be externally controlled. The temperature accuracy is average, suitable for use in industries such as heat preservation and antifreeze that are not very precise in temperature control

3.Digital display temperature control, large temperature control range -20+200 degrees, intelligent digital display, can keep a certain temperature or a certain temperature range, the temperature can be adjusted, the heating plate can be installed at any position, or two The root line is externally connected, and the control accuracy is high, which is suitable for industries that require high temperature control accuracy.

Everyone chooses the appropriate temperature control according to your actual situation, if you don’t need temperature control, we can make a thermocouple wire and go back to the external temperature control by yourself.
