KSD thermostats are widely used in household and industrial appliances to provide temperature control and overheating protection. In dehumidifiers, a KSD thermostat can help monitor the temperature of specific components and automatically interrupt the electrical circuit when the temperature reaches a preset limit.

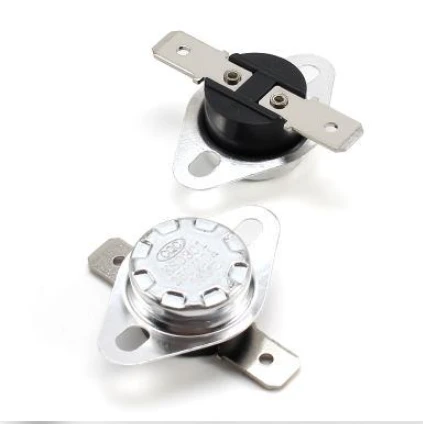

A KSD thermostat is typically a bimetallic temperature switch. It responds to temperature changes through the deformation of two bonded metals with different thermal expansion rates. Depending on the model, it can automatically reset after cooling or remain open until manually reset.
For dehumidifier manufacturers, KSD thermostats offer a compact structure, reliable switching performance, and a cost-effective solution for temperature safety control.
A KSD thermostat works by sensing temperature and opening or closing an electrical circuit when the temperature reaches its specified operating point.
The operating process typically involves four steps:
Step 1: Temperature monitoring

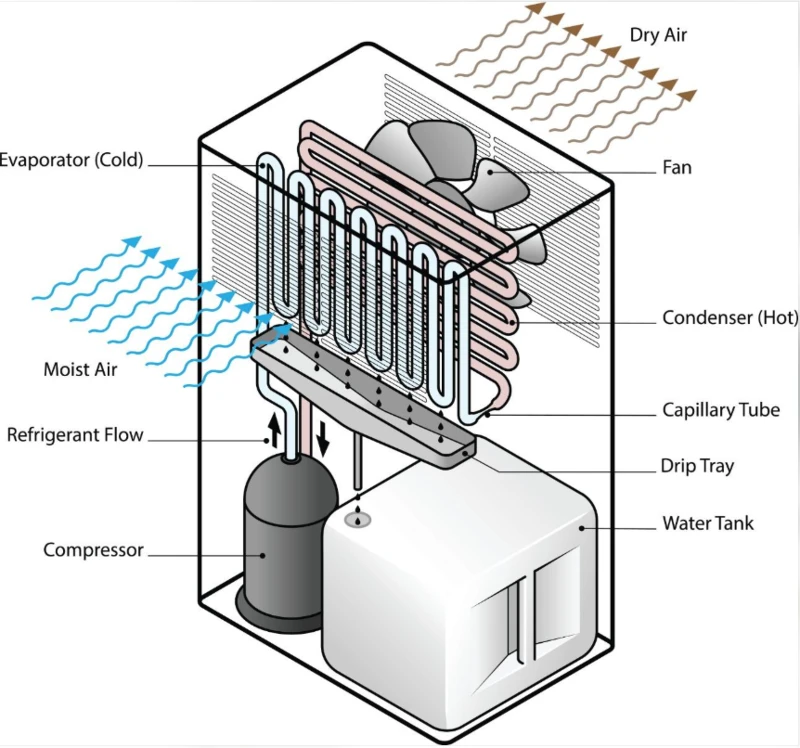

The KSD thermostat is installed near a component that requires temperature monitoring, such as a compressor, motor, heating element, or another heat-sensitive area, depending on the dehumidifier design.
Step 2: Temperature-responsive action
When the surrounding temperature changes, the thermostat's bimetallic disc deforms. Once the specified switching temperature is reached, the disc changes state and operates the contacts.
Step 3: Circuit switching
For a normally closed (NC) thermostat used for overtemperature protection, the contacts open when the temperature reaches the specified trip point, interrupting power to the protected circuit.
Step 4: Reset and continued operation
With an automatic-reset model, the contacts return to their original state after the thermostat cools to its reset temperature. A manual-reset model requires manual intervention before the circuit can be restored.
The exact switching temperature, reset behavior, and contact configuration depend on the selected KSD thermostat model.
KSD thermostats can serve several temperature-related functions in dehumidifier systems, depending on the equipment design and the thermostat's specifications.
|
Application |
Function |
|---|---|
|
Compressor temperature protection |
Helps interrupt the protected circuit if the monitored temperature becomes excessive. |
|
Fan motor protection |
Helps protect compatible motors against excessive temperature. |
|
Heating element protection |
In dehumidifiers equipped with auxiliary heating components, provides an additional temperature safety limit. |
|
Internal overtemperature protection |
Helps reduce the risk of component damage caused by abnormal heating. |
The appropriate KSD thermostat depends on the installation location, operating temperature, electrical load, and required safety function.
|
Specification |
Selection considerations |
|---|---|
|
Thermostat type |

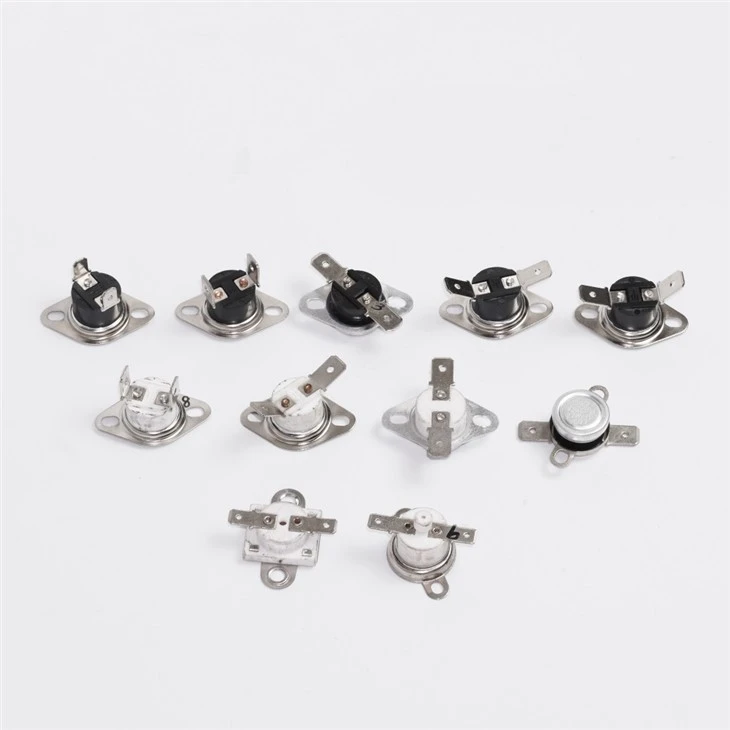

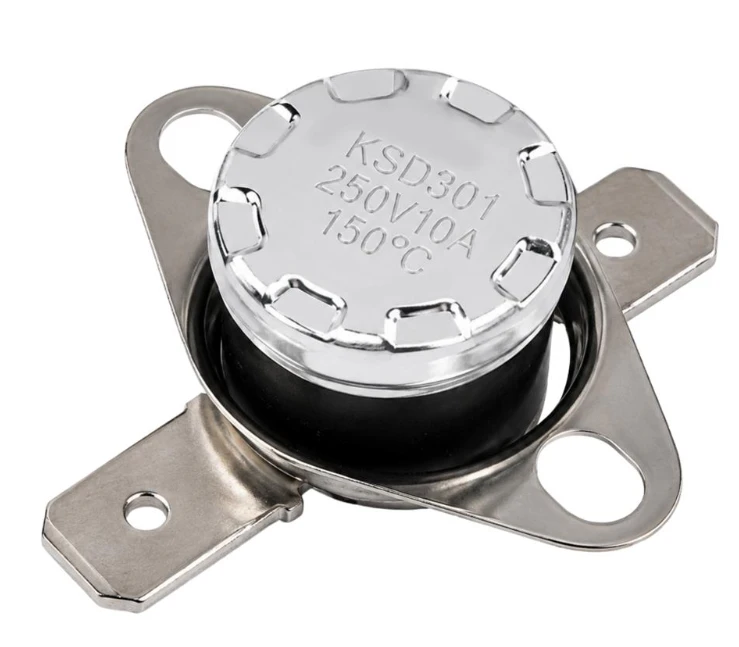

KSD301 or other model |
|
Contact configuration |
Normally closed (NC) or normally open (NO) |
|
Operating temperature |
Customized |
|
Reset type |
Automatic reset or manual reset |
|
Rated voltage |
Customized |
|
Rated current |
Customized |
|
Housing |
Appropriate metal housing and mounting configuration |
|
Terminals |
Customized |
Reliable temperature response: Bimetallic switching provides a practical method of monitoring excessive temperatures.
Compact design: The small form factor supports installation in space-constrained appliances.
Cost-effective protection: KSD thermostats can provide a simple temperature safety function without complex electronic control.
Flexible configurations: Different temperature settings, contact types, reset options, and mounting arrangements are available across suitable models.
Integration with appliance systems: They can work alongside humidity sensors, electronic controllers, thermal fuses, and other protective devices.
When selecting a KSD thermostat, dehumidifier manufacturers should consider the following factors:
Installation location: Identify whether the thermostat will monitor the compressor, motor, heating component, or another location.
Operating and trip temperatures: Determine the normal operating temperature and the maximum safe temperature of the protected component.
Electrical requirements: Verify the voltage, current, load type, and switching frequency.
Reset requirements: Choose automatic reset for applications that permit automatic recovery, or manual reset when the safety design requires inspection before restarting.
Mounting and connection: Confirm the dimensions, fixing method, terminal type, and thermal contact with the monitored component.
Correct installation is essential. Poor thermal contact or an unsuitable mounting position can delay temperature detection and reduce protection effectiveness.
Q1: What is the function of a KSD thermostat in a dehumidifier?
A KSD thermostat monitors temperature and switches an electrical circuit when a preset temperature is reached. In a dehumidifier, it may be used to help protect a compressor, motor, heating element, or other component against excessive temperatures.
Q2: Does a KSD thermostat control humidity in a dehumidifier?
No. A KSD thermostat responds to temperature, not relative humidity. The dehumidifier normally uses a humidity sensor or humidistat to regulate moisture removal. The KSD thermostat provides a separate temperature-control or safety function.
Q3: Should I choose an automatic-reset or manual-reset KSD thermostat for a dehumidifier?
An automatic-reset thermostat restores its contacts after cooling to its reset temperature. A manual-reset thermostat requires manual resetting. The correct choice depends on the protected component, the equipment's safety requirements, and the manufacturer's control design.
