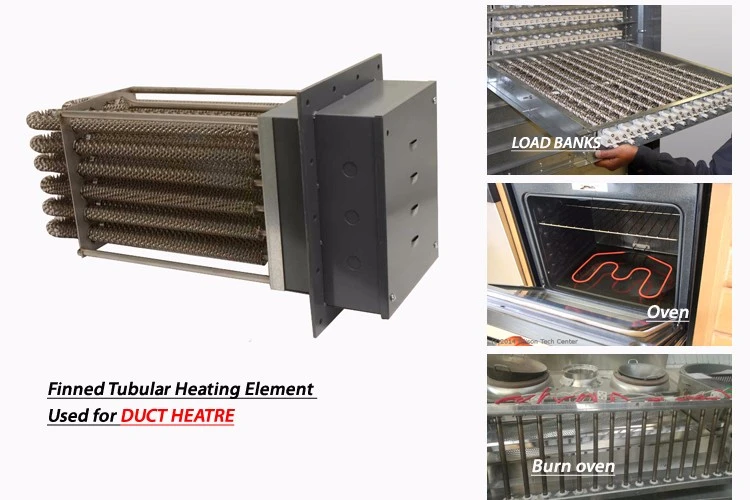

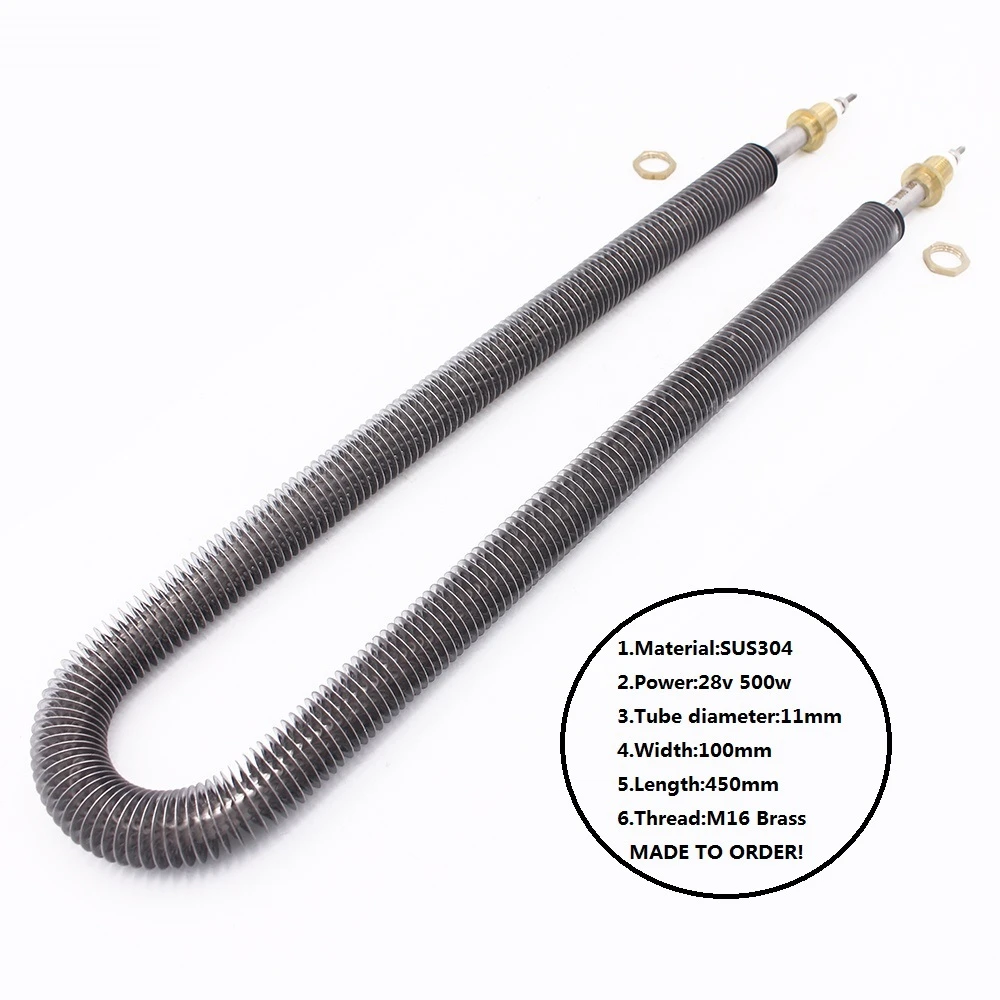

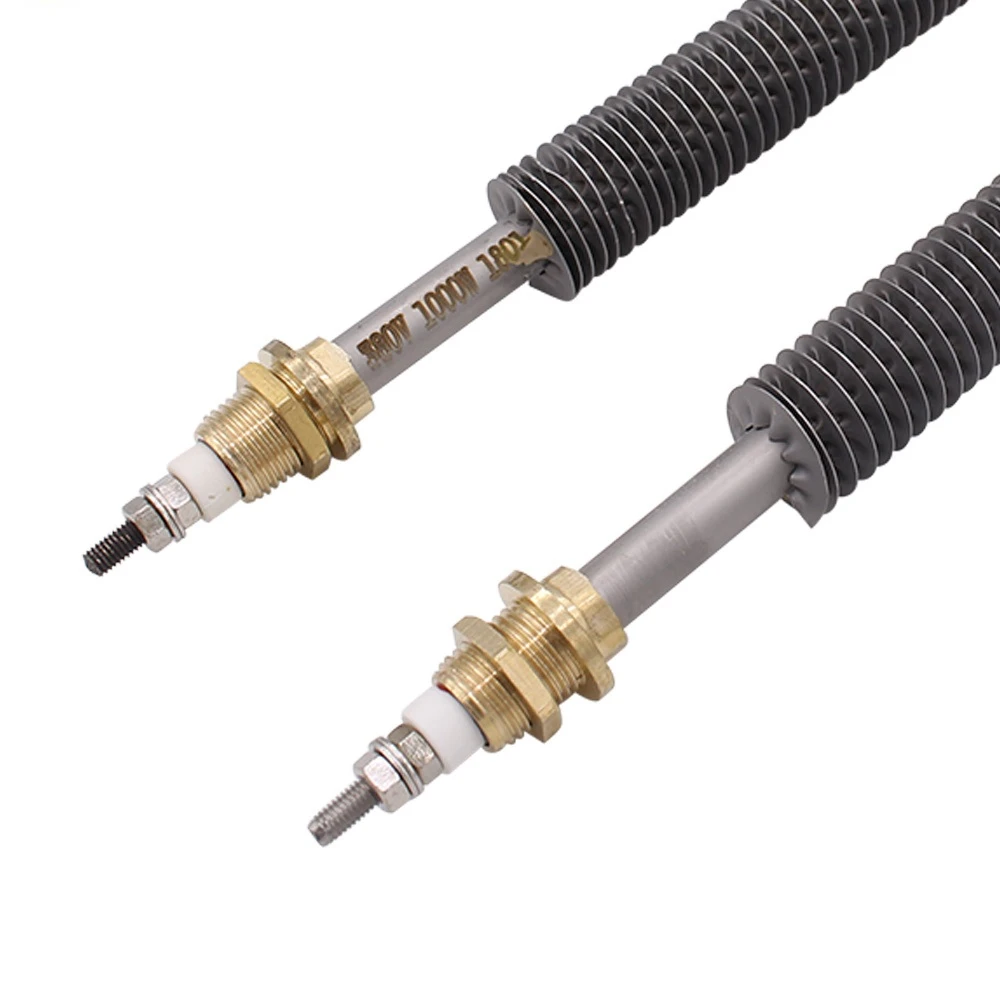

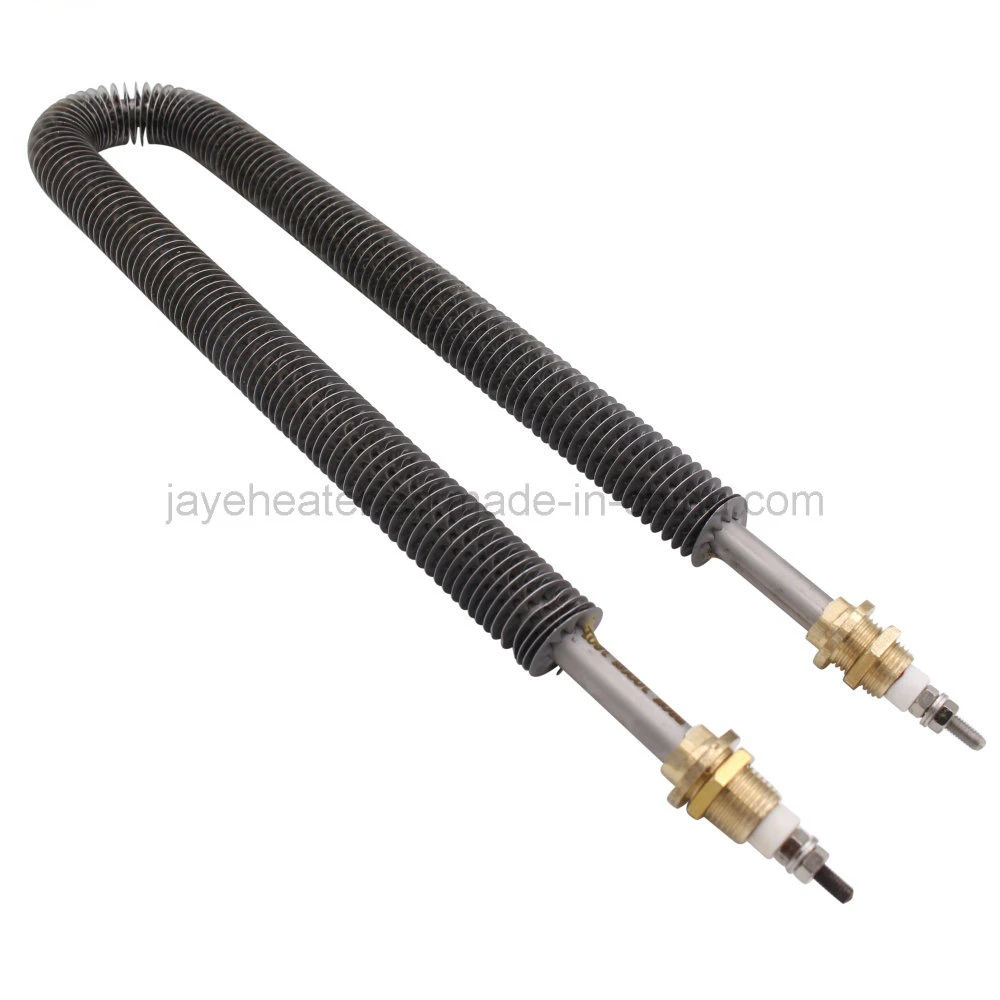

U-shaped finned tubes efficiently transfer heat between fluids (e.g., hot gas → water/air). Fins multiply the tube's external surface area, accelerating thermal exchange. You get faster heating/cooling with compact equipment.
Thermal Expansion Handling: The U-shape absorbs pipe expansion/contraction during temperature swings, preventing stress cracks. This design extends equipment lifespan.
Space Optimization: A continuous U-bend replaces two separate tubes + connectors, cutting footprint by ~30% versus straight tubes.
Fluid Flow: Fluids enter one leg, exit the other after the U-turn. This maintains flow continuity with minimal pressure drop.
Surface Area Boost: Fins (helical, L-footed, or embedded) expand the contact area with surrounding fluid (e.g., flue gas). A finned tube can offer 5–12× more surface than a bare tube.
Turbulence Creation: Fins disrupt laminar flow, forcing hot/cold fluids to mix aggressively. This "scrubs" heat into/out of the tube surface faster.
Material Choices: Aluminum fins excel for air-cooling (high conductivity, lightweight). Stainless steel or carbon steel fins suit corrosive/high-temp gases.
Tube Interior (Primary Fluid): Liquid (water, oil) or gas flows inside, protected from external corrosion/erosion. Heat moves radially through the tube wall.
Finned Exterior (Secondary Fluid): Hot gases or air flow over fins. Fins capture heat from gases, conduct it to the tube wall, and transfer it inward.
Temperature Gradient: Heat flows from hot exterior fins → cooler tube interior. Maximizing this delta (difference) boosts efficiency.
Fin Efficiency: Longer fins lose effectiveness near their tips. Optimal fin height/material balances gain vs. diminishing returns.
Fouling Resistance: Spiral fin patterns shed ash/particles better than solid plates, critical in boilers or exhaust systems.
You'll find these in:
Waste heat recovery boilers
Air preheaters (power plants)
Process heaters (chemical/oil & gas)
HVAC economizers
