Which configuration (U-shaped, W-shaped, Straight) is most efficient for my duct size?
Choosing the Most Efficient Finned Heater Shape for Your Duct

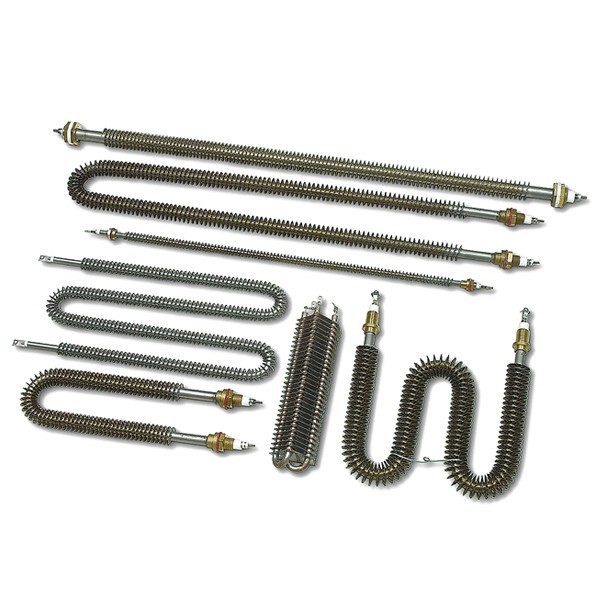

The most efficient shape for a finned tubular heater depends on the size of your duct and how evenly you need to distribute heat.
- A U-shaped heater is ideal for small or narrow ducts. It's compact and easy to install, making it a good choice when space is limited. However, it has a smaller heating surface, so it may not provide uniform heating in larger systems.
- A W-shaped heater offers a larger surface area in a relatively small space. It's perfect for medium-sized ducts where you want better heat coverage and more efficient air heating. This shape balances performance and space efficiency.
- A straight heater is most effective in large ducts. It provides maximum airflow contact and allows heat to be spread evenly across the entire width of the duct. Multiple straight heaters can be arranged side-by-side to increase coverage and power.
- In summary, choose U-shape for compact setups, W-shape for mid-sized ducts needing good distribution, and Straight for large ducts with high airflow. Selecting the right shape helps improve heating efficiency, ensures uniform air temperature, and reduces energy los.
